Chapter 3_______________________________________________________Zaxcom Deva User's Manual

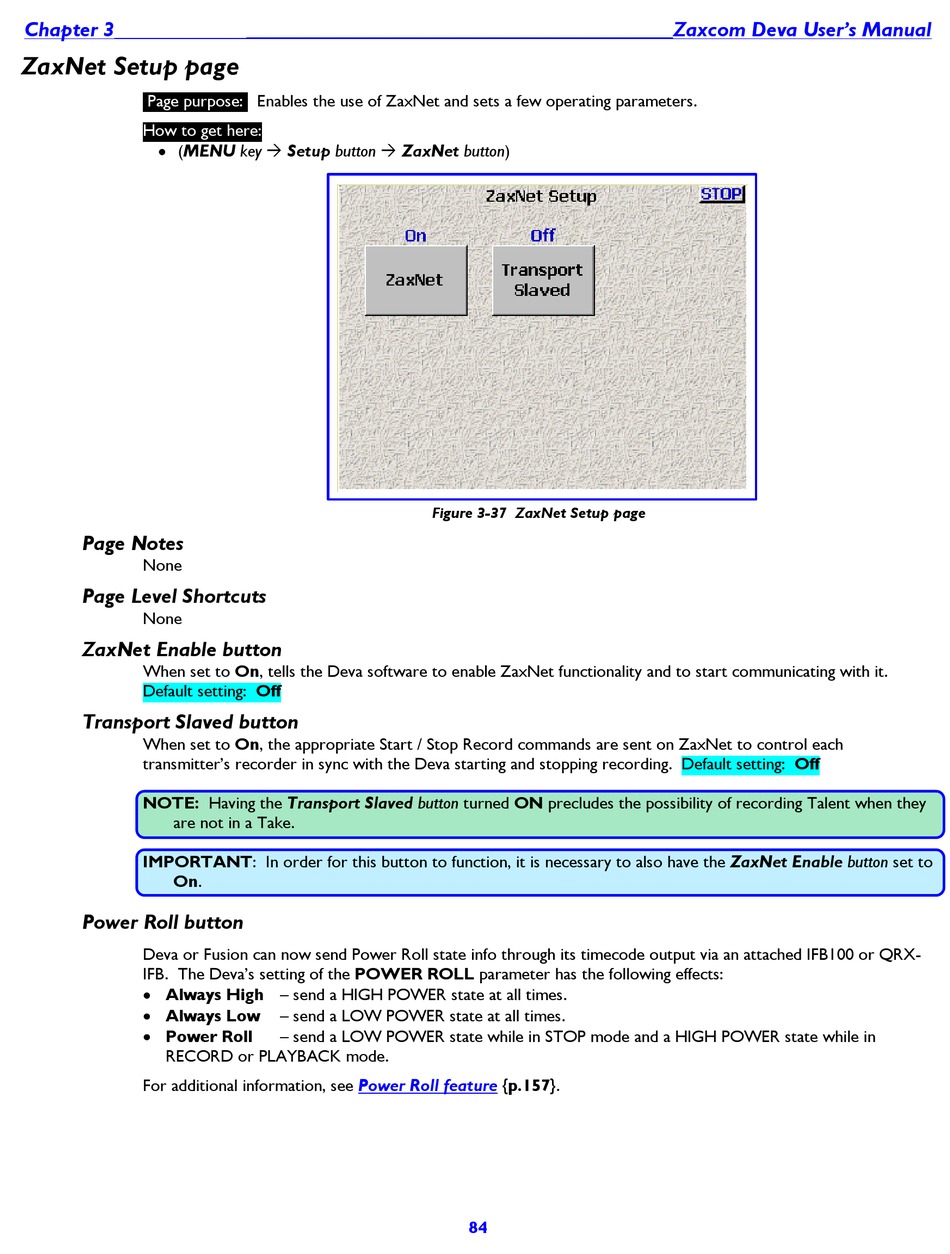

ZaxNet Setup page
Page purpose:
How to get here:
(MENU key  Setup button  ZaxNet button)

Page Notes

None

Page Level Shortcuts

None

ZaxNet Enable button

When set to On, tells the Deva software to enable ZaxNet functionality and to start communicating with it.
Default setting: Off

Transport Slaved button

When set to On, the appropriate Start / Stop Record commands are sent on ZaxNet to control each
transmitter's recorder in sync with the Deva starting and stopping recording. Default setting: Off
NOTE: Having the Transport Slaved button turned ON precludes the possibility of recording Talent when they
are not in a Take.
IMPORTANT: In order for this button to function, it is necessary to also have the ZaxNet Enable button set to
On.

Power Roll button

Deva or Fusion can now send Power Roll state info through its timecode output via an attached IFB100 or QRX-
IFB. The Deva's setting of the POWER ROLL parameter has the following effects:
Always High – send a HIGH POWER state at all times.
Always Low
Power Roll
RECORD or PLAYBACK mode.
For additional information, see
Enables the use of ZaxNet and sets a few operating parameters.

Figure 3-37 ZaxNet Setup page

– send a LOW POWER state at all times.
– send a LOW POWER state while in STOP mode and a HIGH POWER state while in
Power Roll feature {p.157}.
84
