Zaxcom Deva User's Manual_______________________________________________________ Chapter 3

Meter (#) Assignment page

Page purpose:
How to get here:
(MENU key  Setup button  Meters button  Meter Assigns button  Meter (#) Assignment buttons)

Page Notes

None

Page Level Shortcuts

None

Meter Insertion Point buttons

Select one of the following:
Normal (Monitors Disk Bus) button
Analog Input (Pre fader) button
Digital Input (Pre fader) button
Analog / Digital Output button

Channel to Meter buttons

Select only one channel to be displayed on this meter.
Default setting: X on the Channel # of the meter
This page assigns which track each meter is displaying.
Deva-16 view

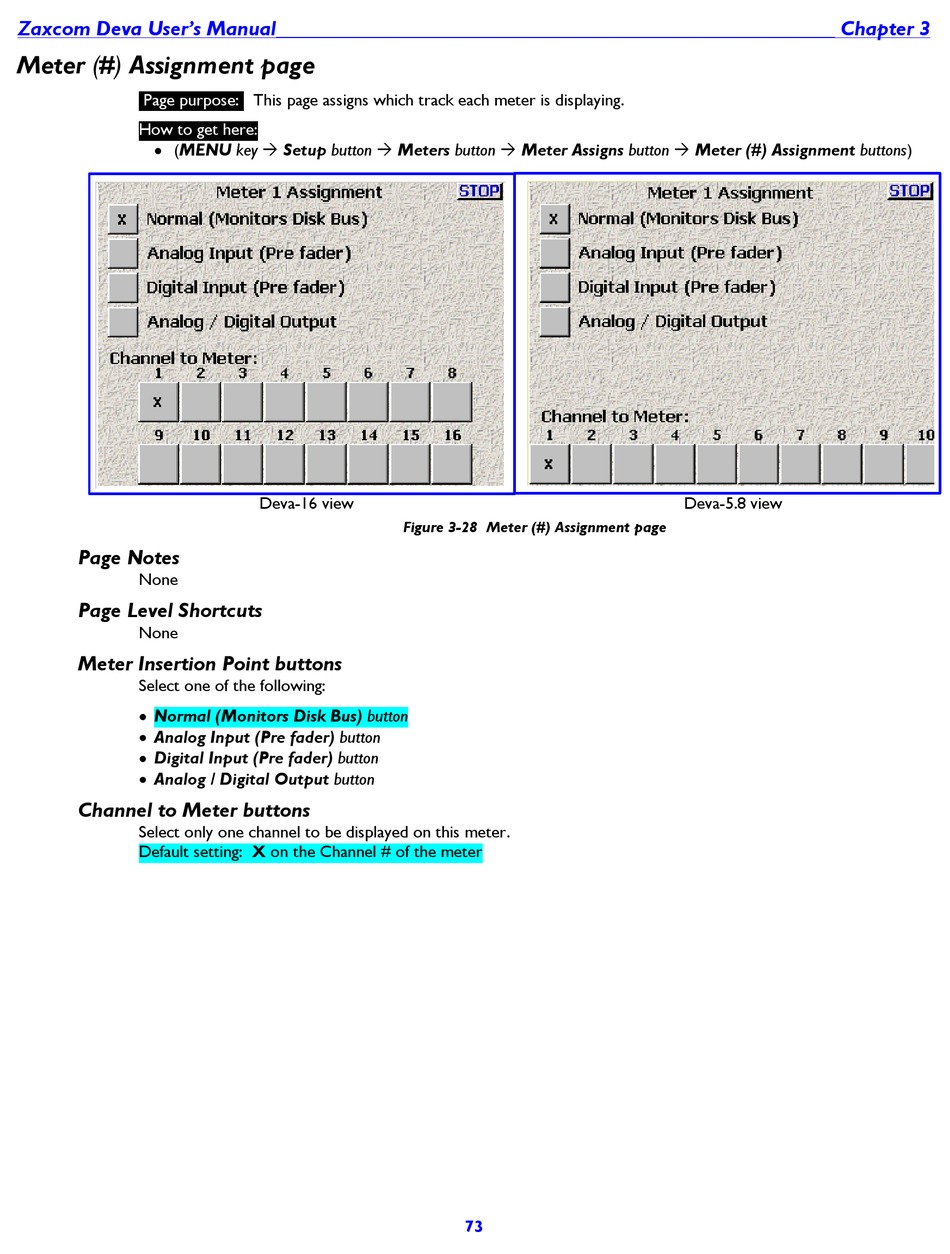

Figure 3-28 Meter (#) Assignment page

73
Deva-5.8 view
