Timecode Connector (LEMO-5)

The timecode connector on the Deva is a 5-pin LEMO connector. The cable end p/n is: FGG.0B.305.CLAD42Z.
The "42" is the cable diameter; this can be adjusted, within limits. Visit:
WD140Awp.exe/CONNECT/PartSearch?p1=partNumber

AES Digital Input / Output Connectors (DB-15)

The Deva uses a mini DB-15 (AKA: DE-15) connector for the AES (digital) input and output connectors.
NOTE: In the Description columns above, the reference to "Pin-?" refers to connections to industry standard 3-
pin XLRs, which are described in

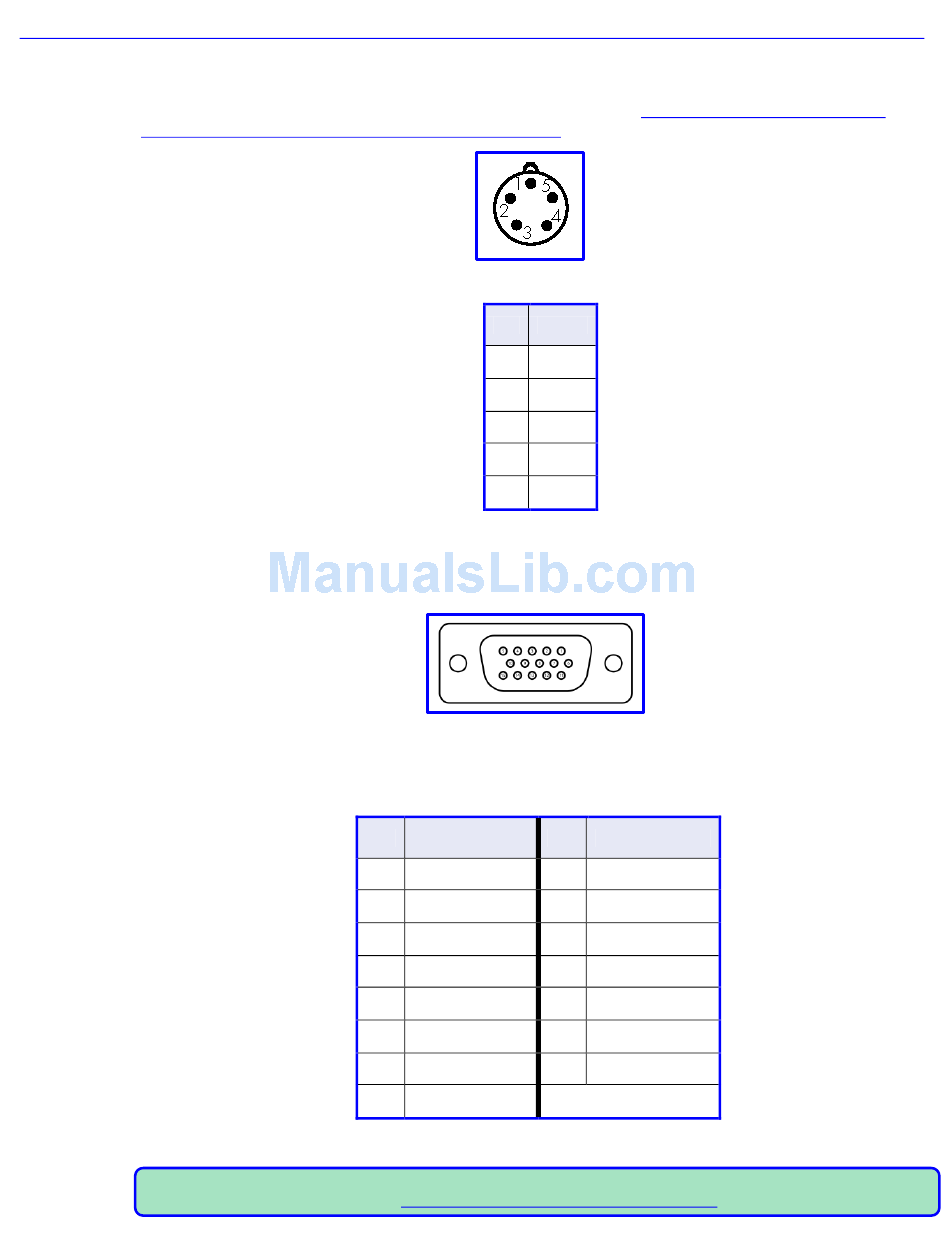

Figure 10-7 LEMO-5M Timecode Connector Pin Numbering
Table 10-7 LEMO-5M Pin Description
Top row pins: 5, 4, 3, 2, 1
Middle row pins: 10, 9, 8, 7, 6
Bottom row pins: 15, 14, 13, 12, 11
Figure 10-8 Mini DB-15M Digital Input and Output Connectors Pin Numbering
Pin
1 Ch3/4, Pin-2
2 Ch1/2, Pin-2
3
4 Ch7/8, Pin-2
5 Ch5/6, Pin-2
6 Ch3/4, Pin-1
7 Ch1/2, Pin-1
8
Table 10-8 Mini DB-15M Pin Description
Analog Input / Output Connectors (XLR-3)
and explore the possibilities.
Pin DESC
1 Gnd
2 TC In
3 NC
4 NC
5 TC Out
DESC Pin
9 Ch7/8, Pin-1
10 Ch5/6, Pin-1
NC 11 Ch3/4, Pin-3
12 Ch1/2, Pin-3
13
14 Ch7/8, Pin-3
15 Ch5/6, Pin-3
NC
177
http://intra.lemo.ch/WD140AWP/
DESC
NC
{p.174}.
