Zaxcom Deva User's Manual_______________________________________________________ Chapter 3
(Knob / Touch) Fader Assign page
Page purpose: This page allows you to assign any of the 8 analog and 8 digital inputs to any or all of the 4 faders.
You can assign any of the inputs to either touch or hardware faders.
How to get here:
(MENU key  Faders button  Fader Assign button)
Deva-16 Knob Fader 1-4 Assign view Deva-16 Knob Fader 5-8 Assign view
Deva-5.8 Knob Fader 1-4 Assign view
Deva-5.8 Touch Fader 5-8 Assign view Deva-16 Touch Fader 9-12 Assign view

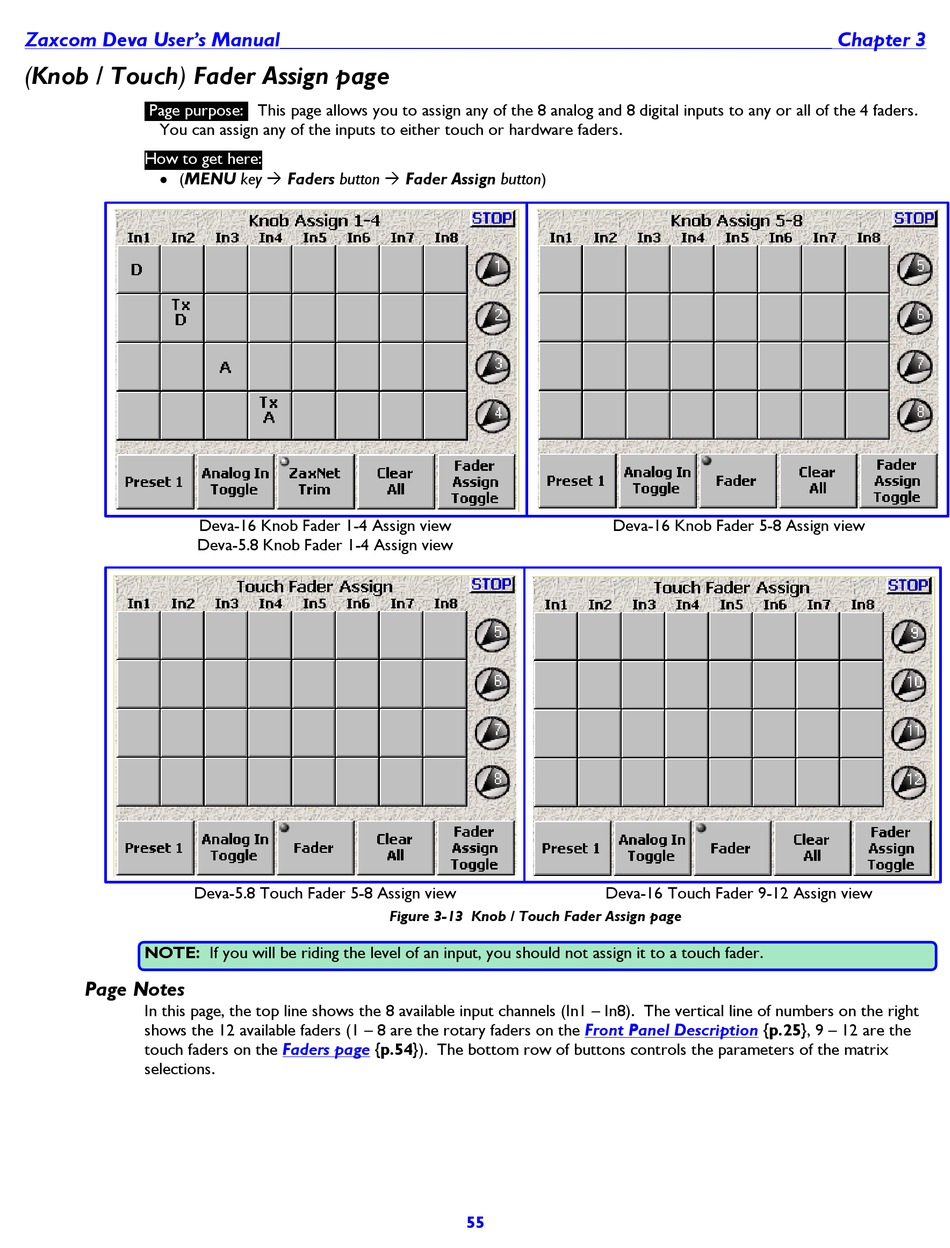

Figure 3-13 Knob / Touch Fader Assign page

NOTE: If you will be riding the level of an input, you should not assign it to a touch fader.

Page Notes

In this page, the top line shows the 8 available input channels (In1 – In8). The vertical line of numbers on the right
shows the 12 available faders (1 – 8 are the rotary faders on the Front Panel Description {p.25}, 9 – 12 are the
touch faders on the Faders page {p.54}). The bottom row of buttons controls the parameters of the matrix
selections.
55
