Analog Input (#) – BUS page
Page purpose:
How to get here:
(MENU key  Input Configure button  Analog (#) buttons  BUS button)

Page Notes

The indicator's meaning:

Page Level Shortcuts

LEFT / RIGHT ARROW keys – select which bus (Disk Channel vs. Output Channel)
1 – 9 and 0 keys
E key
B key

Disk Channel (#) buttons

Pressing each button assigns the associated input to one or more of the recorder's tracks.

Output Channel (#) buttons

Pressing each button assigns the associated input directly to one or more of the output channels.
This page maintains the BUS settings for each analog recording track.
Deva-16 view

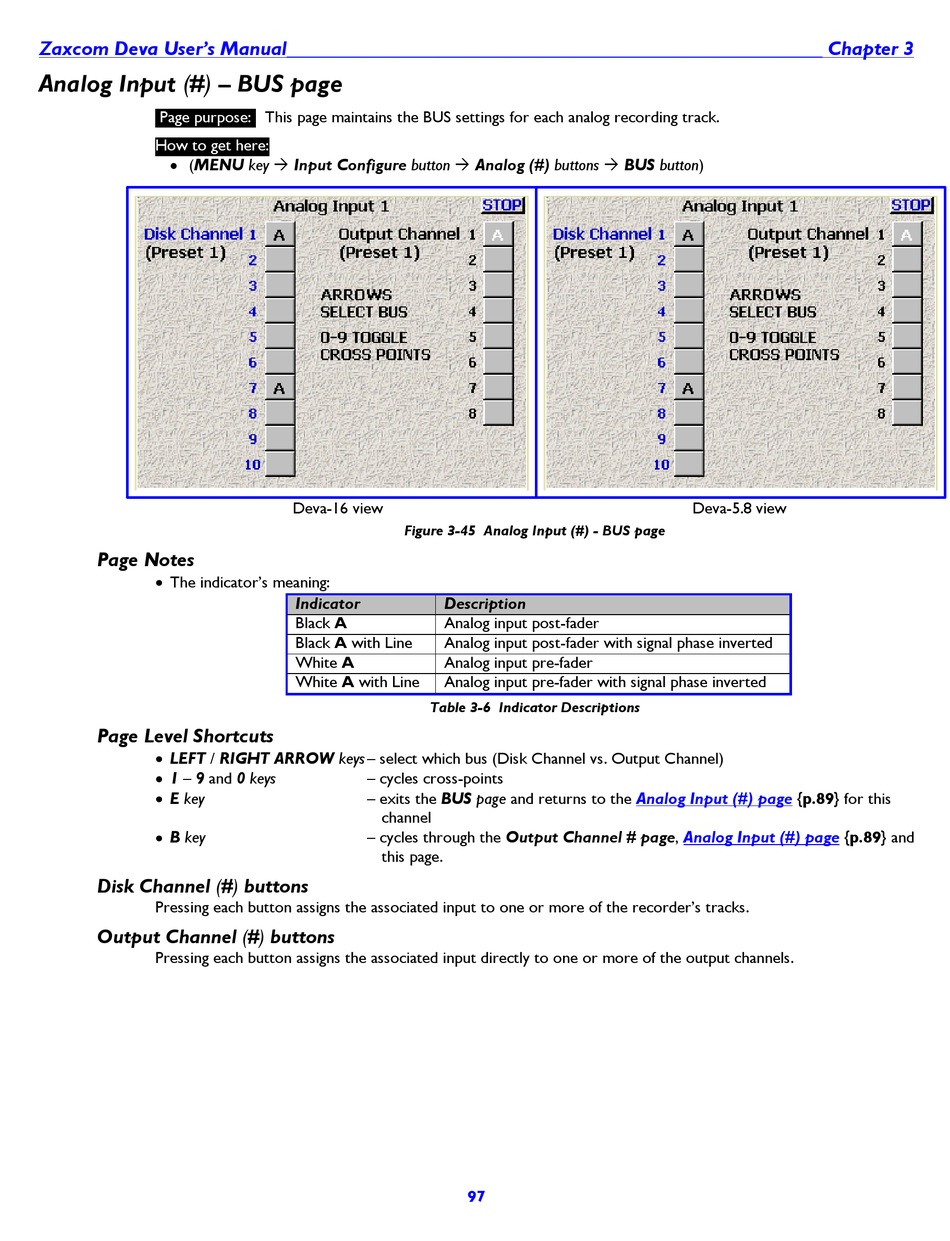

Figure 3-45 Analog Input (#) - BUS page

Indicator Description
Black A Analog input post-fader
Black A with Line Analog input post-fader with signal phase inverted
White A Analog input pre-fader
White A with Line Analog input pre-fader with signal phase inverted
Table 3-6 Indicator Descriptions
– cycles cross-points
– exits the BUS page and returns to the
channel
– cycles through the Output Channel # page,
this page.
Analog Input (#) page
97
Deva-5.8 view
{p.89} for this
Analog Input (#) page {p.89} and
