Zaxcom Deva User's Manual_______________________________________________________ Chapter 3

Limit buttons

Pressing one or more of them enables the limiter (indicated by an X) for the associated channel(s). Settings for
the limiter are maintained by the

Routing Presets button

Pressing it displays the

Output Routing button

Pressing it displays three additional columns on the right used to flag the source of each output during Playback
mode, Stop mode and Record mode. With it displayed, pressing any of the boxes will turn ON / OFF audio
coming from the channel during each operation mode, indicated by a number if ON. The Routing Presets button
displays the page that manages the Playback routings, as a group.
NOTE: The Analog and Digital Outputs are essentially identical, with the exception that there are 6 Analog
Outputs and 8 Digital Outputs. Outputs 1 through 6 are the same in both groups.

Play buttons

These indicate what will be sent to each output while the Deva is in Play mode.
For example, if I have a Boom Operator on Output 1, and his audio is being recorded on track 1, I would set his
Play button to Trk1 so he will be able to hear his audio during playback.

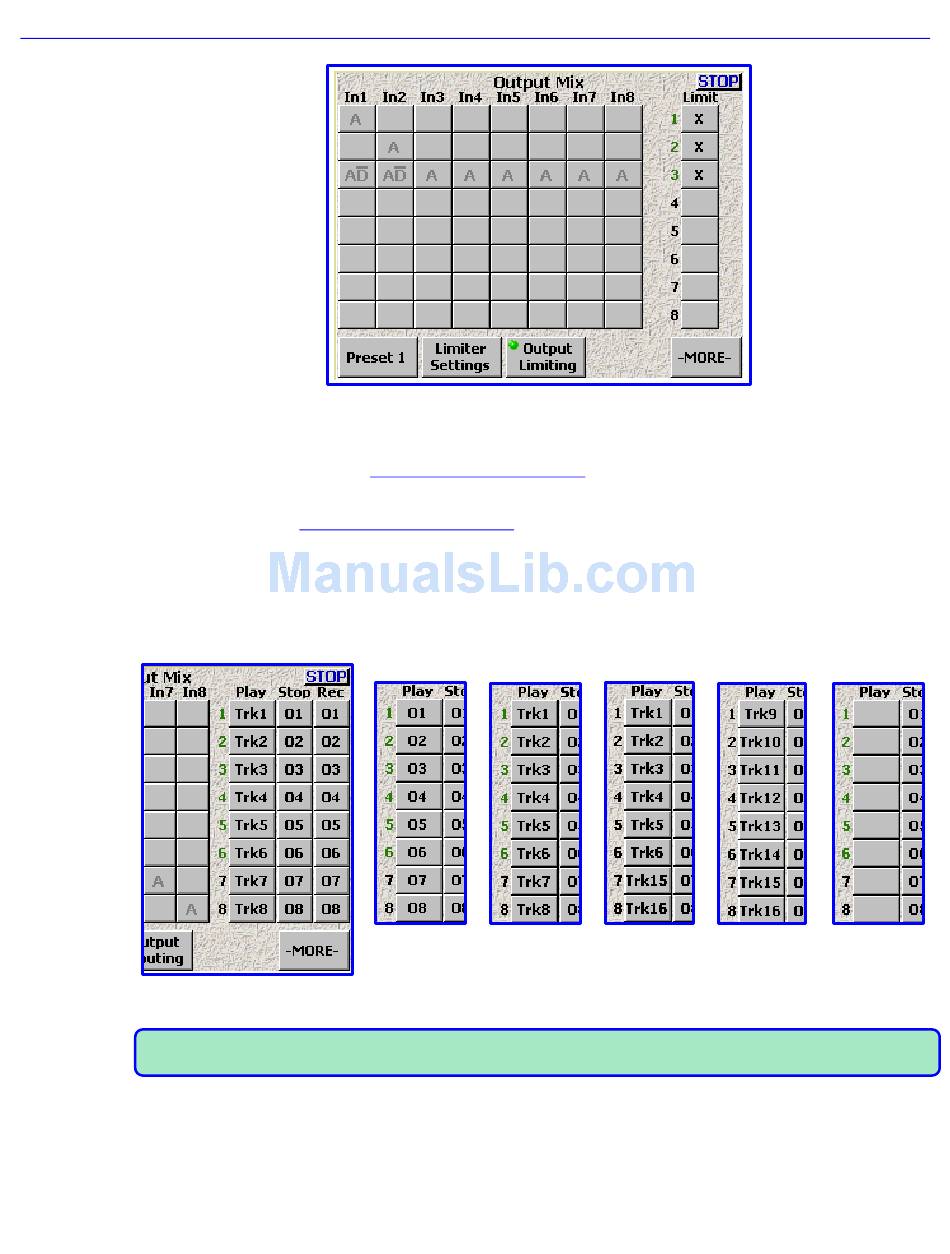

Figure 3-8 Output Mix – Limit column page
Output Limiter Settings page
Output Routing Presets page
Normal
Figure 3-9 Output Mix – Output Routing columns page
49
{p.51}.
{p.53}.
Play Switches Play Tracks
1-6, 15-16
Play Tracks Mute Play
9-16
