Battery Menu page
Page purpose:
How to get here:
(Home page  Battery icon button)

Page Notes

None
Page Level Shortcuts
None

Low Battery Voltage button

Press it to adjust the threshold voltage level. Once the voltage drops below the specified level, the battery voltage
text in the Battery icon button changes from Black to Red. (Valid range: 10.0 – 13.5, Value step: 0.1)
Low Battery Voltage button Shortcuts
Pressing it opens a data entry field to accept the new value.
See: Common Data Entry Field Shortcuts List
BACKSPACE key – 1) The first time the backspace is pressed it enters a decimal point.

Reset Graph button

Pressing it clears any data being displayed in the Voltage vs. Time graph.

Battery Type field

It indicates where the power is coming from, Internal or External.

Voltage field

It displays the power source's current real-time voltage.

Voltage vs. Time graph

It displays, in graphic form, the progression over time of the power source's voltage.
This page maintains the alert voltage and a profile of the battery discharge over time.

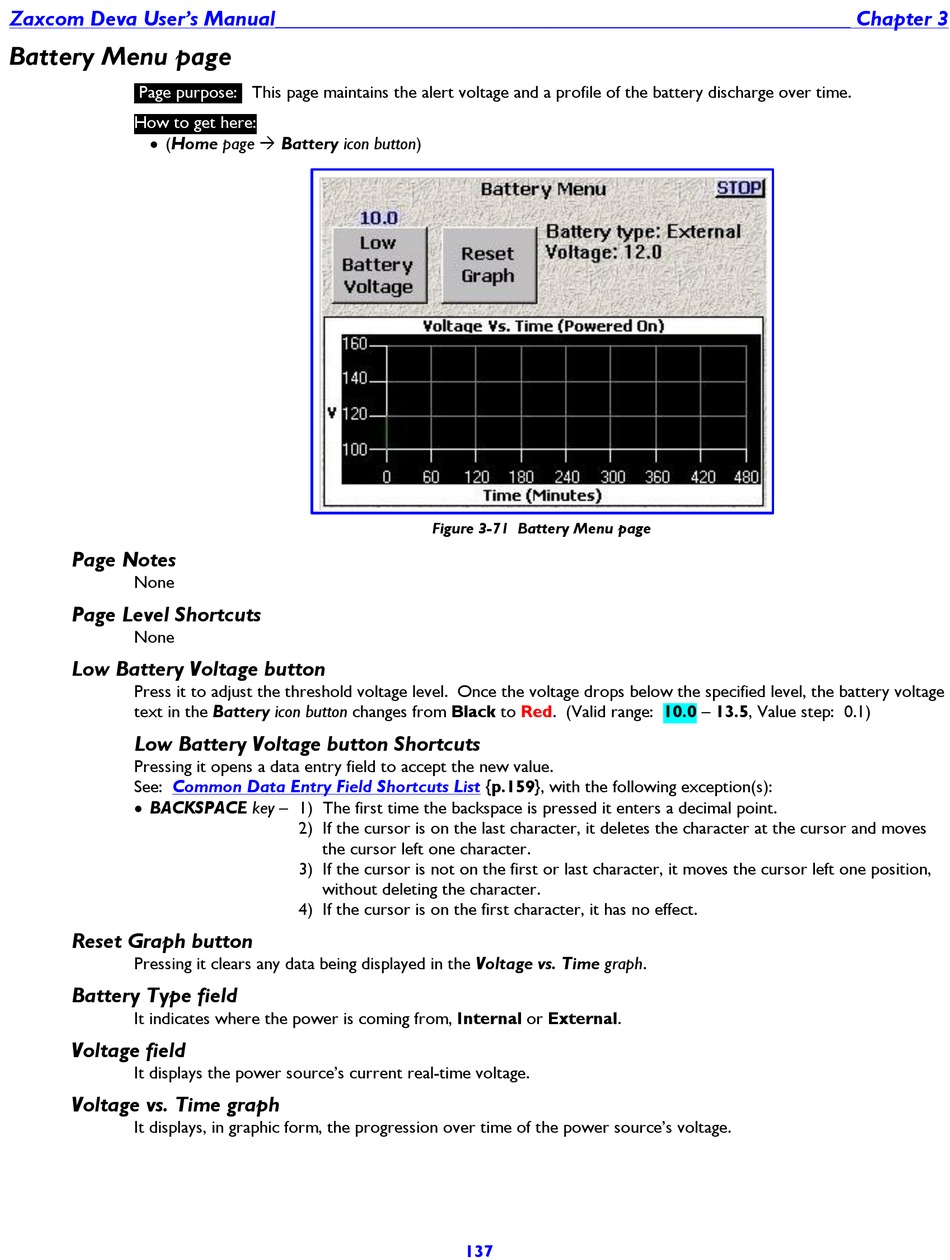

Figure 3-71 Battery Menu page

2) If the cursor is on the last character, it deletes the character at the cursor and moves
the cursor left one character.
3) If the cursor is not on the first or last character, it moves the cursor left one position,
without deleting the character.
4) If the cursor is on the first character, it has no effect.
