Chapter 3_______________________________________________________Zaxcom Deva User's Manual

Disk Mix page

Page purpose:
(or 10) recording tracks.
How to get here:
(MENU key  Disk Mix button)

Page Notes

In this page, the top line shows the 8 available input channels (In1 – In8) plus the slate mic and the tone
generator. The vertical line of numbers on the right shows the 12 available recording tracks. The bottom row
of buttons controls the parameters of the matrix selections.
Figure 3-4 {above} shows a Deva-16 set up to record 8 analog pre-fader inputs to tracks 1 through 8, 2 digital
pre-fader inputs recorded to tracks 9 and 10 and a post-fader mix to tracks 11 and 12. Analog input #1 and
digital input #2 are inverted. The slate-mic and the tone generator are enabled for all tracks except 13 - 16.

Page Level Shortcuts

None

Disk Mix matrix buttons

Connects the Input Channel to the Recording Channel.
Pressing one of them cycles through the available choices, based on the setting of the (Analog / Digital) In Toggle
button, Phase Invert button and (Pre- / Post-) Fader button.

Slate buttons

Pressing one of them selects / deselects (indicated by an X) sending the slate source on the associated path.

Tone buttons

Pressing one of them selects / deselects (indicated by an X) sending tone on the associated path.
This page routes the 8 analog inputs, 8 digital inputs, slate mic and the reference tone to the 16
Deva-16 Top view
Deva-5.8 view
Indicator
Black A
Black A with Line
White A
White A with Line
Black D
Black D with Line
White D
White D with Line

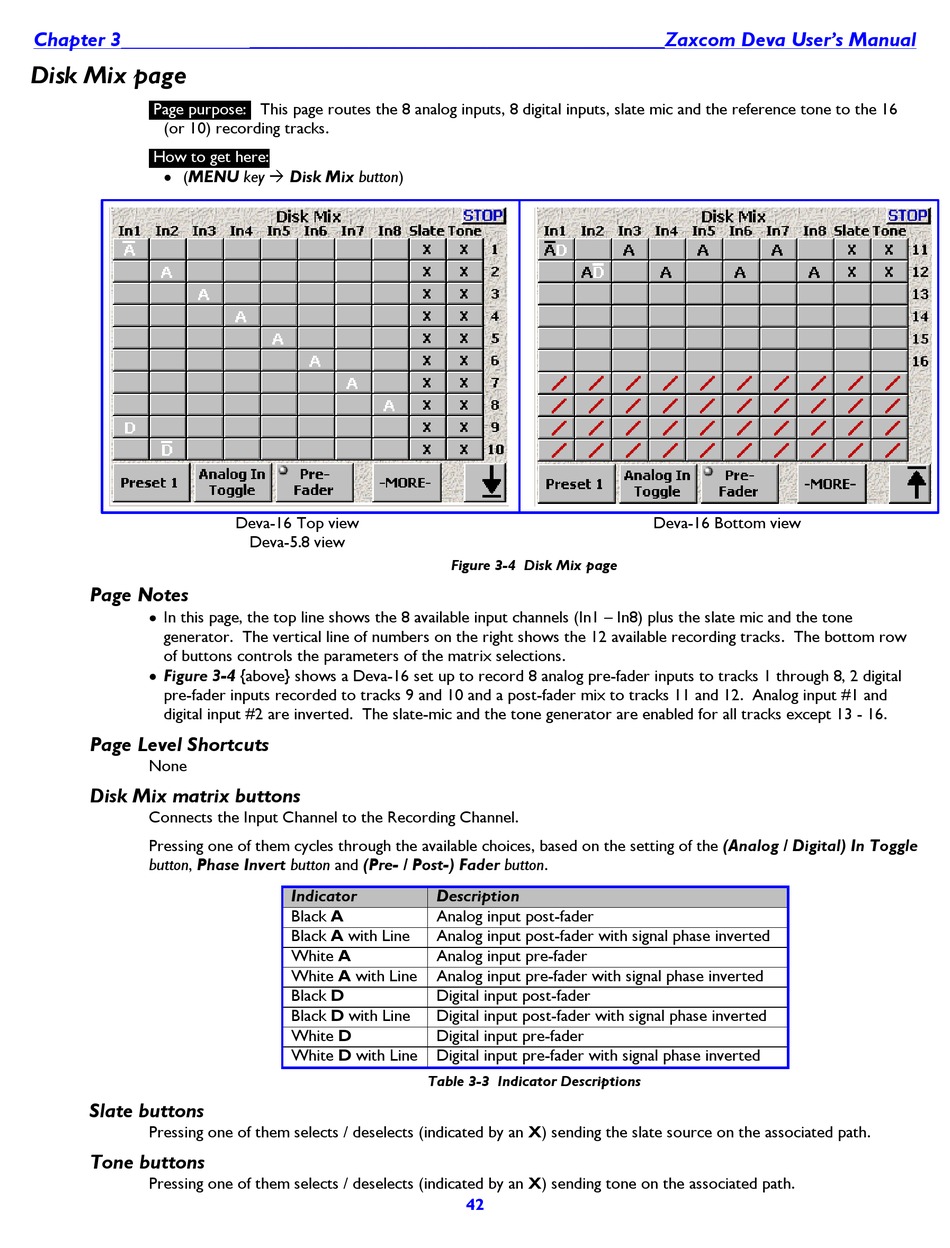

Figure 3-4 Disk Mix page

Description
Analog input post-fader
Analog input post-fader with signal phase inverted
Analog input pre-fader
Analog input pre-fader with signal phase inverted
Digital input post-fader
Digital input post-fader with signal phase inverted
Digital input pre-fader
Digital input pre-fader with signal phase inverted
Table 3-3 Indicator Descriptions
42
Deva-16 Bottom view
