Deva-16 Camera Returns view
NOTE: The camera feed is a mono return. While there are two camera return feeds, they are internally
summed to mono.
NOTE: In Deva-5.8, the following limits apply. In the Disk Tracks view, there are 10 tracks. In the Camera
Returns view, only the Camera buttons are displayed.

Page Notes

None

Page Level Shortcuts

None

Preset Loaded Name field

It appears just below the page title and indicates which preset (User or Factory) is currently loaded. If it is not a
saved preset, Working Preset is displayed. Default setting: Factory 2

Disk Tracks matrix buttons

Pressing them selects which disk track(s) being recorded will be monitored. Left (L) and right (R) buttons send the
specific track(s) to the left and/or right ear cups.

Outputs matrix buttons

Pressing them selects which output channels will be monitored. Left (L) and right (R) buttons send the specific
track(s) to the left and/or right ear cups.

Camera Returns matrix buttons

Pressing them selects which Camera Returns will be monitored. Left (L) and right (R) buttons send the specific
track(s) to the left and/or right ear cups.
NOTE: To monitor a single channel in both the left and right headphone mix, select it in both the left and right sides.

(Disk Tracks / Outputs / Camera Returns) Toggle button

Pressing it cycles through the Disk Tracks, Outputs and Camera Returns views.

Factory Presets button

Pressing it displays the

User Presets button

Pressing it displays the

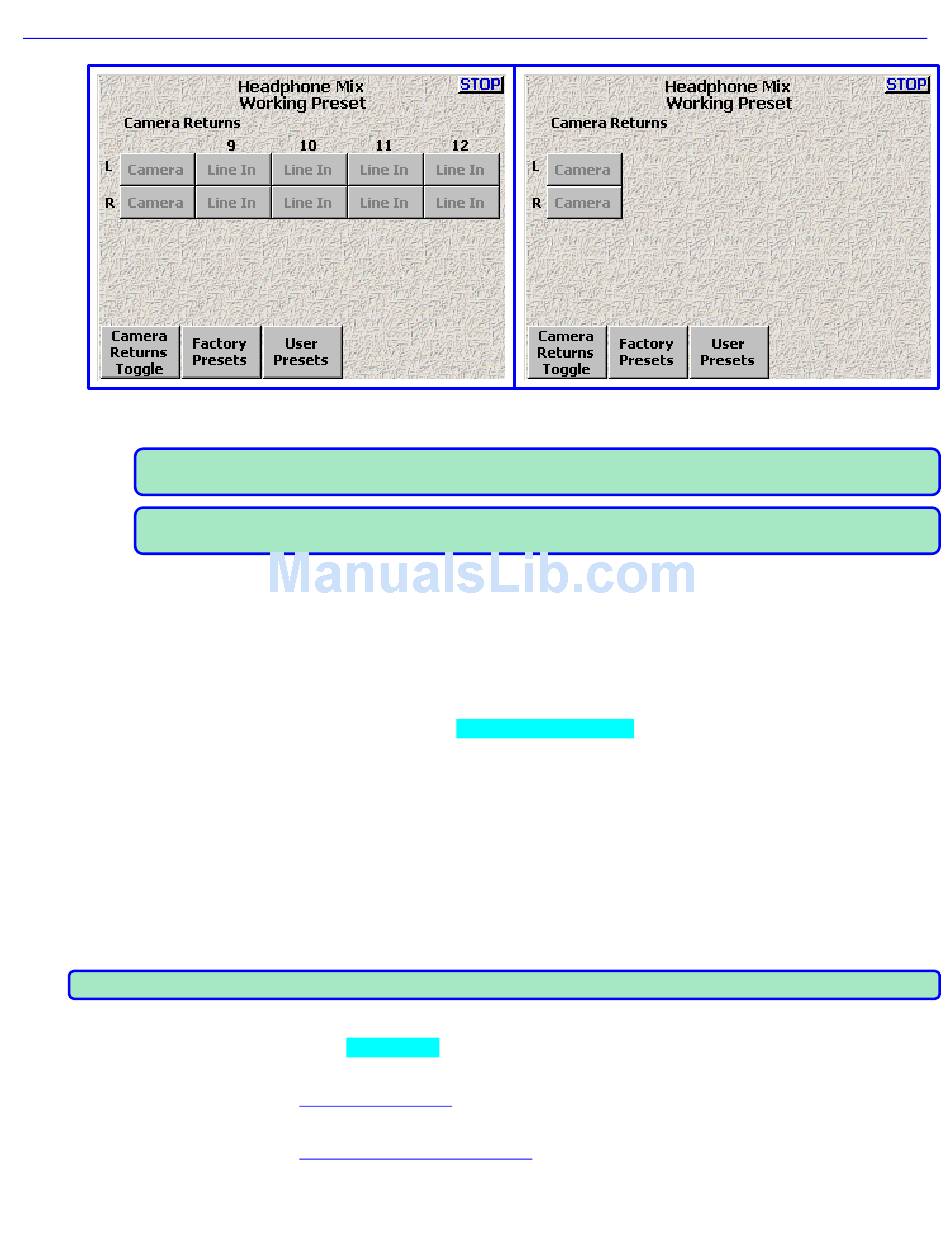

Figure 3-31 Headphone Mix page (part 2)

Factory Presets page {p.78}.
(Load / Save) User Presets page
76
Deva-5.8 Camera Returns view
{p.79}.
