Zaxcom Deva User's Manual_______________________________________________________ Chapter 3

Formatting dialog box

Page purpose:
How to get here:
(MENU key  My Deva button  Internal HD drive button  Format Drive button)  Format Drive
button

Page Notes

The following is an example of what is displayed in the FORMATTING dialog. Be aware that this will change
based on the size of the media being formatted:
NOTE: It takes about 7 minutes to reformat a 137 GB HDD.

Page Level Shortcuts

None
Performs the Erase and Format process for the Primary Drive.

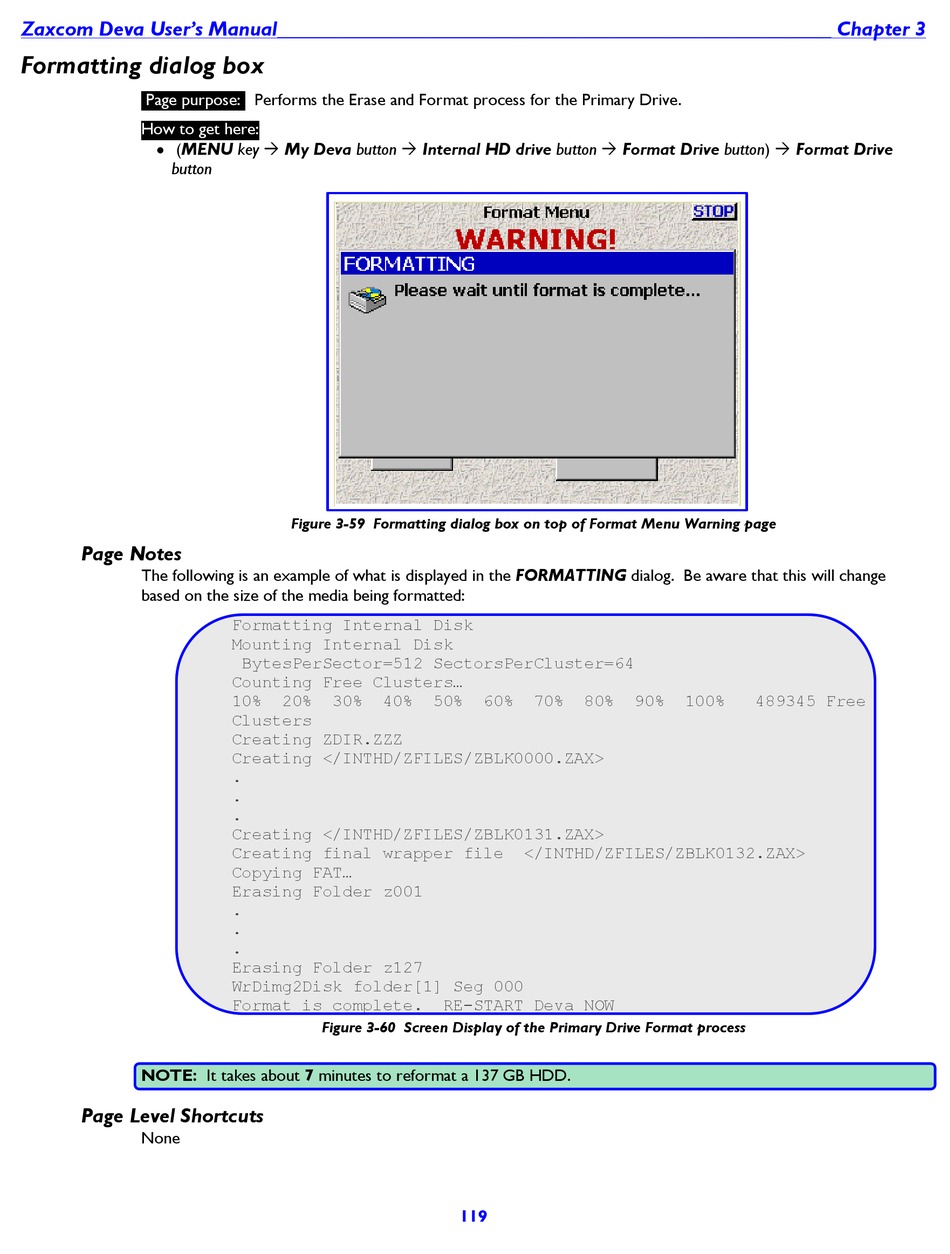

Figure 3-59 Formatting dialog box on top of Format Menu Warning page
Formatting Internal Disk
Mounting Internal Disk
BytesPerSector=512 SectorsPerCluster=64
Counting Free Clusters...
10% 20% 30% 40%
Clusters
Creating ZDIR.ZZZ
Creating </INTHD/ZFILES/ZBLK0000.ZAX>
.
.
.
Creating </INTHD/ZFILES/ZBLK0131.ZAX>
Creating final wrapper file
Copying FAT...
Erasing Folder z001
.
.
.
Erasing Folder z127
WrDimg2Disk folder[1] Seg 000
Format is complete.
Figure 3-60 Screen Display of the Primary Drive Format process
50% 60% 70% 80%
</INTHD/ZFILES/ZBLK0132.ZAX>
RE-START Deva NOW
119
90% 100% 489345 Free
