Summary of Contents for Zaxcom Nomad FP8

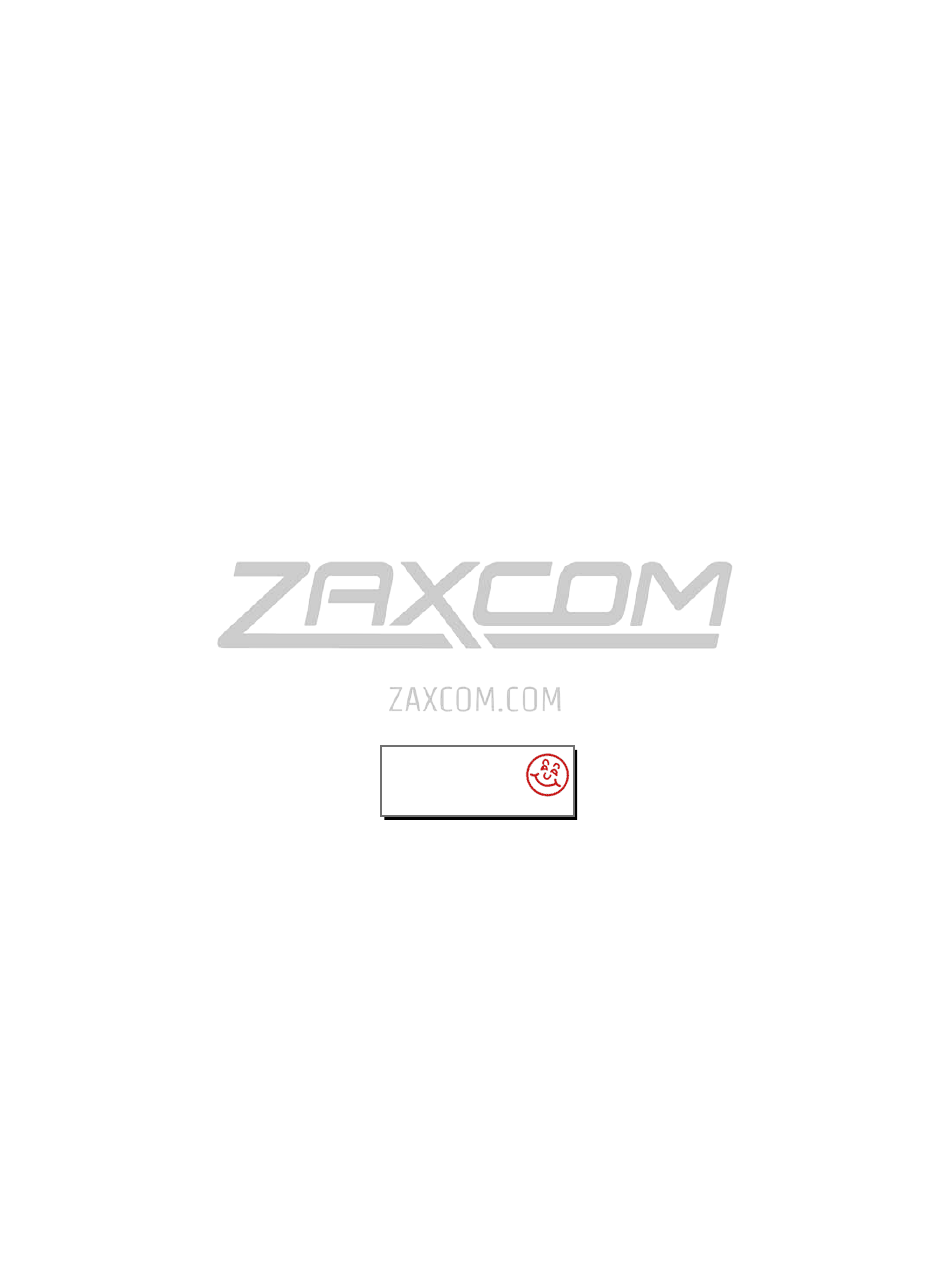

- Page 1 USER MANUAL Published July 2014 Software Version Nomad 7.10 interstage Phistersvej 31, 2900 Hellerup, Danmark Telefon 3946 0000, fax 3946 0040 www.interstage.dk - pro audio with a smile Nomad FP8 Expand Your Horizons...
-
Page 2: Table Of Contents
KNOWING YOUR NOMAD FP8 ........................3 ATTACHING YOUR NOMAD FP8 ........................4 NOMAD FP8 OPERATIONS ..........................5 FP8 K ............................... 5 SSIGNING NOBS Fader assign ............................... 5 Input trim assign ..............................6 Transmitter gain assign ............................6 ..............................7 SING THE KEYS Listening to multiple inputs .......................... -
Page 3: Knowing Your Nomad Fp8

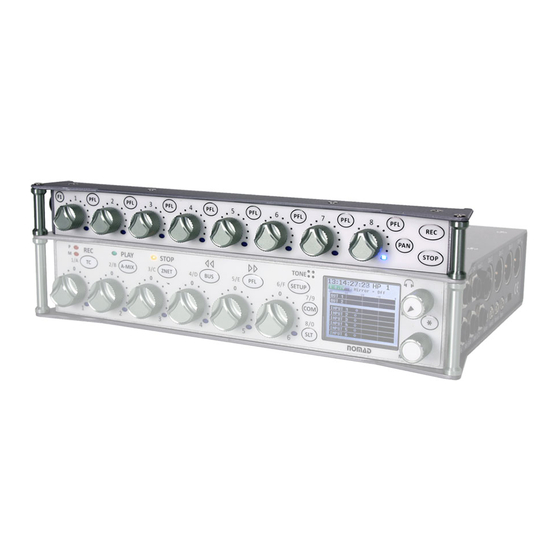

Zaxcom Nomad FP8 FP8 Layout Knowing your Nomad FP8 1. F1 Key - User assignable function key. 2. Fader Knob - each of the 8 faders on the FP8 can be assigned to act as an analog fader, digital fader, ZaxNet wireless control or input trim control. -
Page 4: Attaching Your Nomad Fp8
Zaxcom Nomad FP8 Attaching the FP8 Attaching your Nomad FP8 WARNING DO NOT REMOVE THESE SCREWS SCREWS THAT ATTACH THE FP8 TO NOMAD POST SCREWS 1. The FP8 has 2 screws that attach it to the body of your Nomad. And two screws that connect the short post (supplied with your FP8) to the longer posts on your Nomad. -
Page 5: Nomad Fp8 Operations
Your Nomad will need to be running software version 6.46 or higher for the FP8 to operate. Assigning FP8 Knobs Each individual potentiometer (pot) on the Nomad FP8 are user assignable as an analog or digital fader, a TRX transmitter gain controller or an input trim controller. Any combination of assignments can be made. -
Page 6: Input Trim Assign
Zaxcom Nomad FP8 FP8 Operations Input trim assign Each FP8 potentiometers can be assigned to control the trim of an analog or digital input. When assigning trim to a fader pot each pot will control the trim corresponding to the fader number. For example fader pot 1 can be assigned to control the input trim for analog input 1 or digital input 1. -
Page 7: Using The Pfl Keys
Zaxcom Nomad FP8 FP8 Operations Using the PFL keys The pre fader listen key to the right of each FP8 fader will follow the trim or fader assignment to that fader. To set the PFL to follow what is assigned to a fader you need to set the PFL ROUTING in the mode menu to “FADER”... -
Page 8: Function Key
Record and Stop Keys The Nomad FP8 has dedicated record and stop keys. These keys will start and stop Nomad’s recorder with a short key press. The REC and STOP keys on the FP8, unlike the REC and STOP key on Nomad, will function... -
Page 9: Product Support
Download the latest Firmware from: http://zaxcom.com/support/updates/ Download the latest User Manuals from: http://zaxcom.com/support/updates/ Submit Technical Questions at: http://www.zaxcom.com/submit-a-technical-question Submit information for Repair Services at: http://www.zaxcom.com/support/repairs Join the Zaxcom User Forum at: http://www.zaxcom.com/forum/forum.php Join the Zaxcom Face Book User Group at: https://www.facebook.com/groups/682199065139938/... -
Page 10: Zaxcom Warranty Policy And Limitations
Distributers may sell Product to resellers who then sell Product to end users. Please see below for warranty information or obtaining service. No warranty service is provided unless the Product is returned to Zaxcom Inc. or a Zaxcom dealer in the region where the Product was first shipped by Zaxcom.
