Zaxcom Deva User's Manual_______________________________________________________ Chapter 3

Meter Menu page

Page purpose:
page
How to get here:
(MENU key  Setup button  Meters button)

Page Notes

None

Page Level Shortcuts

None

Number of Home Screen Meters button

Pressing it cycles the number of meters (4 – 16*) displayed on the
Default setting: Max track count

Meter Vertical / Horizontal button

Pressing it cycles the
This page provides metering options, which includes how many meters are shown on the
{p.35}, the meter's orientation and their size.
Home page
Horizontal
Big Vertical

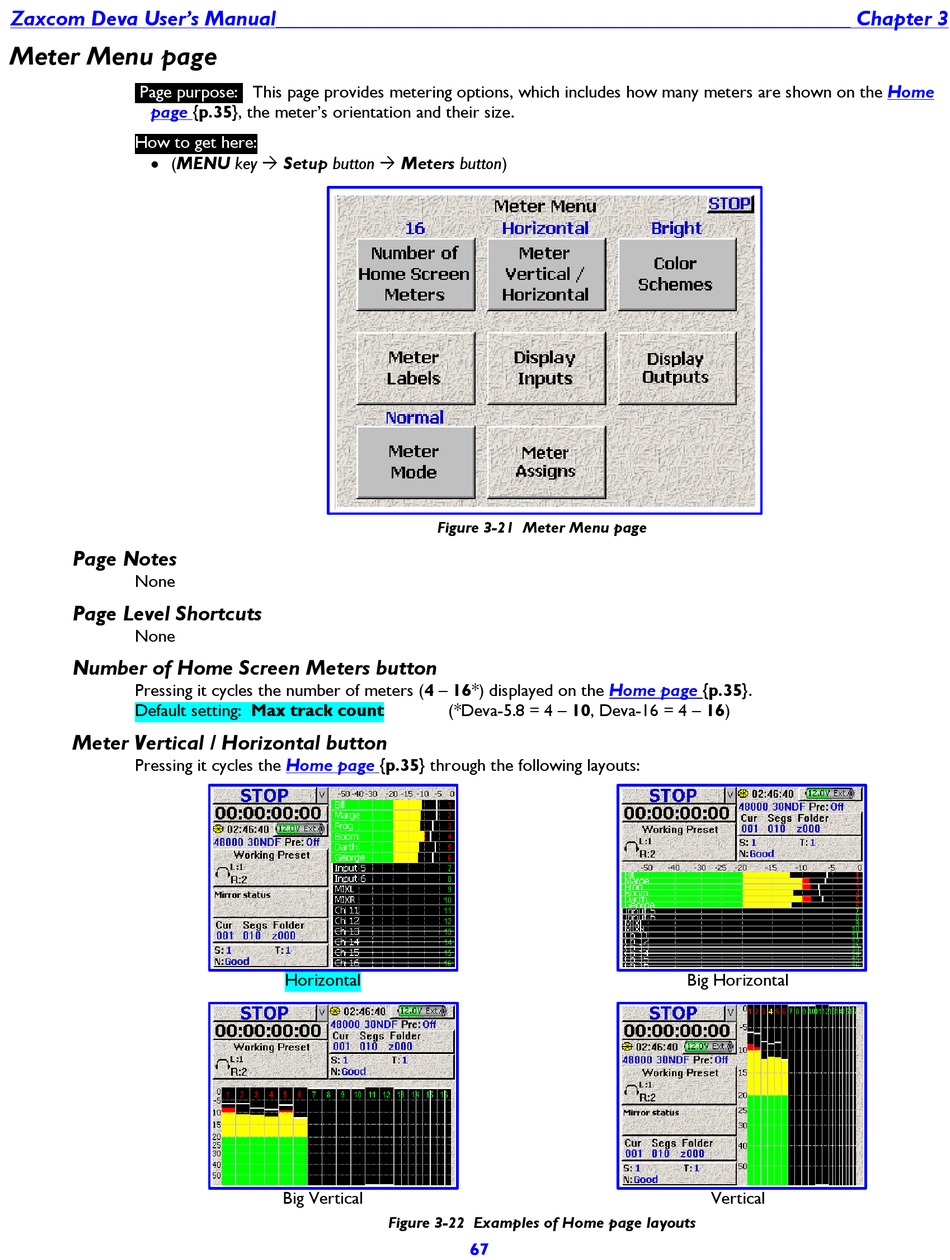

Figure 3-21 Meter Menu page

(*Deva-5.8 = 4 – 10, Deva-16 = 4 – 16)
{p.35} through the following layouts:

Figure 3-22 Examples of Home page layouts

67
Home page {p.35}.
Big Horizontal
Vertical
Home
