Output Routing Presets page
Page purpose:
How to get here:
(MENU key  Output Mix button  Routing Presets button)
Page Notes
Once you have made your selection on this page, go to the previous page to see what effect your choice had.
Page Level Shortcuts
None

Normal button

Outputs come from the Output Mix bus.

Play Switches button

Outputs come from the disk on playback.
Play Tracks 1-6, 15-16 button
Play Tracks 1-6, 9-10 button
This button varies based on the hardware:
Deva-16: Play Tracks 1-6, 15-16 button. As the label indicates, it sets the playback tracks to 1-6, 15 & 16.
Deva-5.8: Play Tracks 1-6, 9-10 button. As the label indicates, it sets the playback tracks to 1-6, 9 & 10.
Play Tracks 9-16 button
Play Tracks 3-10 button
This button varies based on the hardware:
Deva-16: Play Tracks 9-16 button. As the label indicates, it sets the playback tracks to 9-16.
Deva-5.8: Play Tracks 3-10 button. As the label indicates, it sets the playback tracks to 3-10.

Mute Play button

Outputs are muted during playback.
This page sets-up the Play column of the Output Routing section for the Output Mix.
Deva-16 view

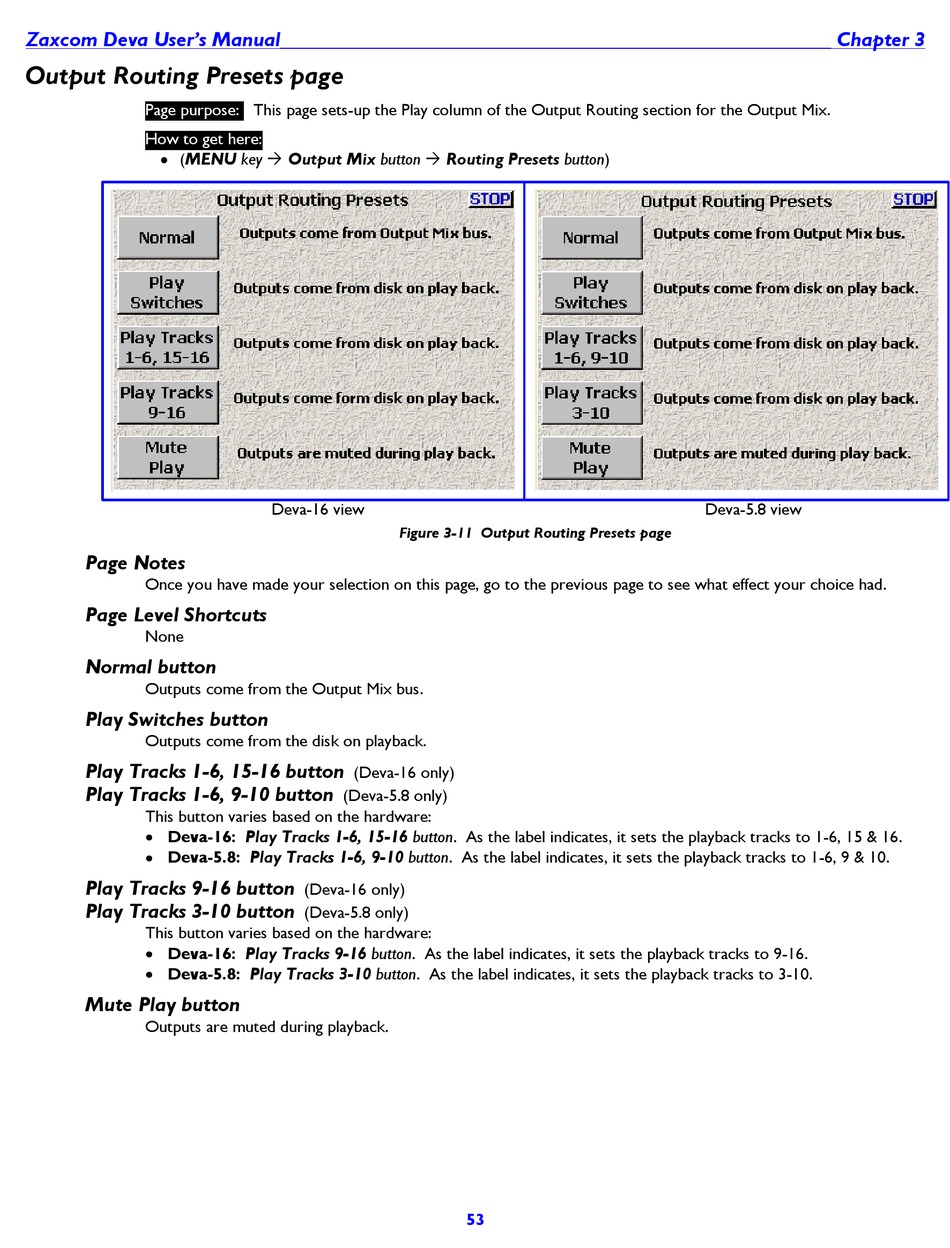

Figure 3-11 Output Routing Presets page

(Deva-16 only)
(Deva-5.8 only)
(Deva-16 only)
(Deva-5.8 only)
