Zaxcom Deva User's Manual_______________________________________________________ Chapter 3
Analog Input (#) – Dynamics page
Page purpose:
channel.
How to get here:
(MENU key  Input Configure button  Analog (#) buttons  Dynamics button)

Page Notes

You have two methods to change each parameter on this page:
o Click on a parameter, it turns White. The Inc button or Dec button pick up a parameter title. Pressing either
button will adjust the parameter in its respective direction.
o Click on a parameter, it turns White. Click on the now
enter the value and press the ENTER key.
If you enter a value that is out of the valid range, the closest value in range is applied.
Page Level Shortcuts
ENTER key
UP or DOWN ARROW key (keyboard) – cycles through the compressor buttons.
2 or 8 key (front panel)
Level meter
It displays the current audio level for this channel. The scale is dBFS.
Gain meter
It displays the total gain on the channel including make-up gain. The scale is dB.
Compress (On / Off) button
Pressing it enables (On) / disables (Off) the compressor for this channel. When this button is highlighted, pressing
the ENTER key toggles the setting.
Attack button
(Attack Speed) It controls the amount of gain slewing which will generally slow the response to attack transients
only. (Valid range: 1 – 4 – 100 ms, Value step: 1)
Attack button Shortcuts
Clicking the button the first time selects it. This allows the value to be modified by the Inc button or Dec button.
Clicking it a second time opens it for direct access.
See: Common Data Entry Field Shortcuts List
Requires EFFECTS PACKAGE – This page maintains the compressor for each analog input

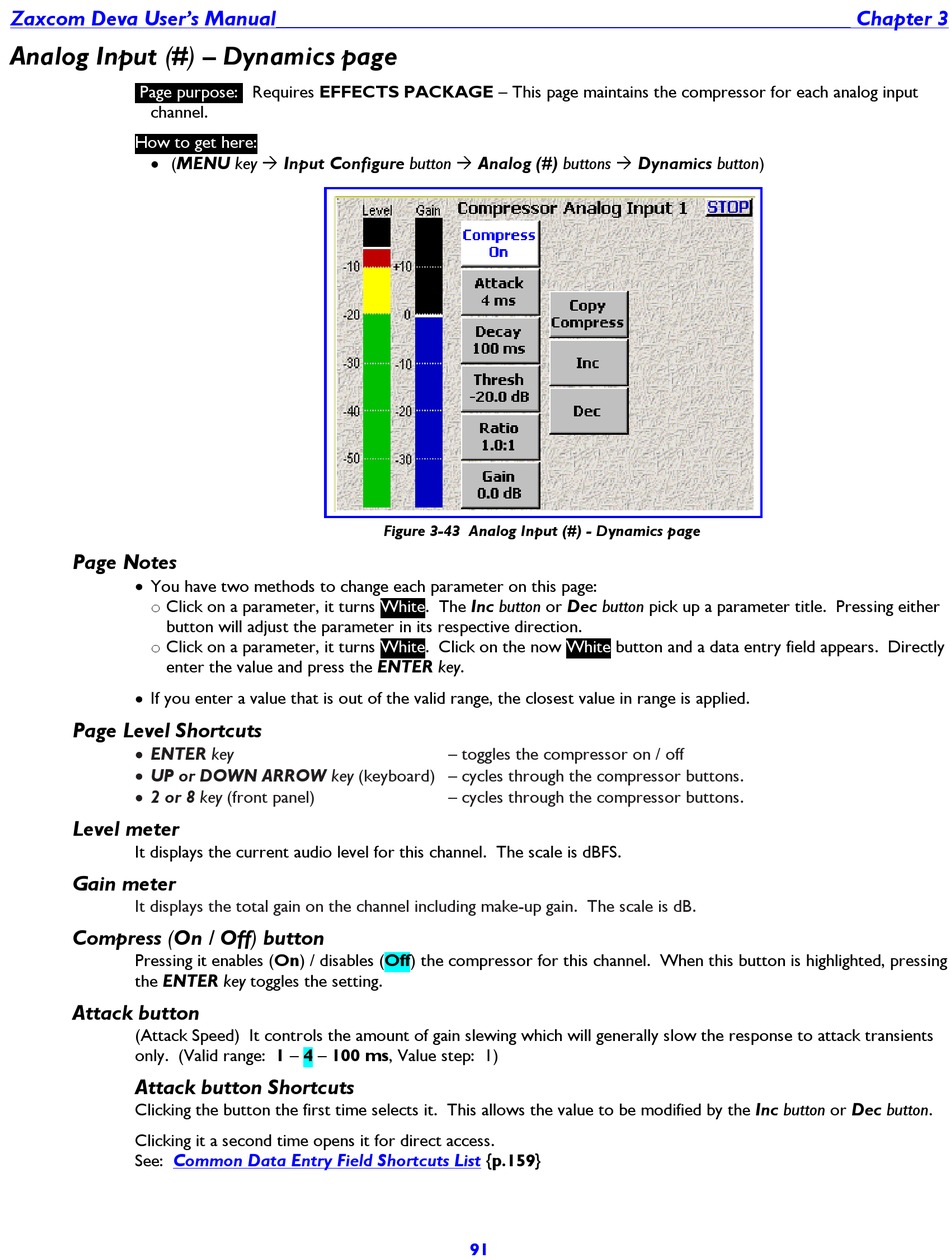

Figure 3-43 Analog Input (#) - Dynamics page

White button and a data entry field appears. Directly
– toggles the compressor on / off
– cycles through the compressor buttons.
{p.159}
91
