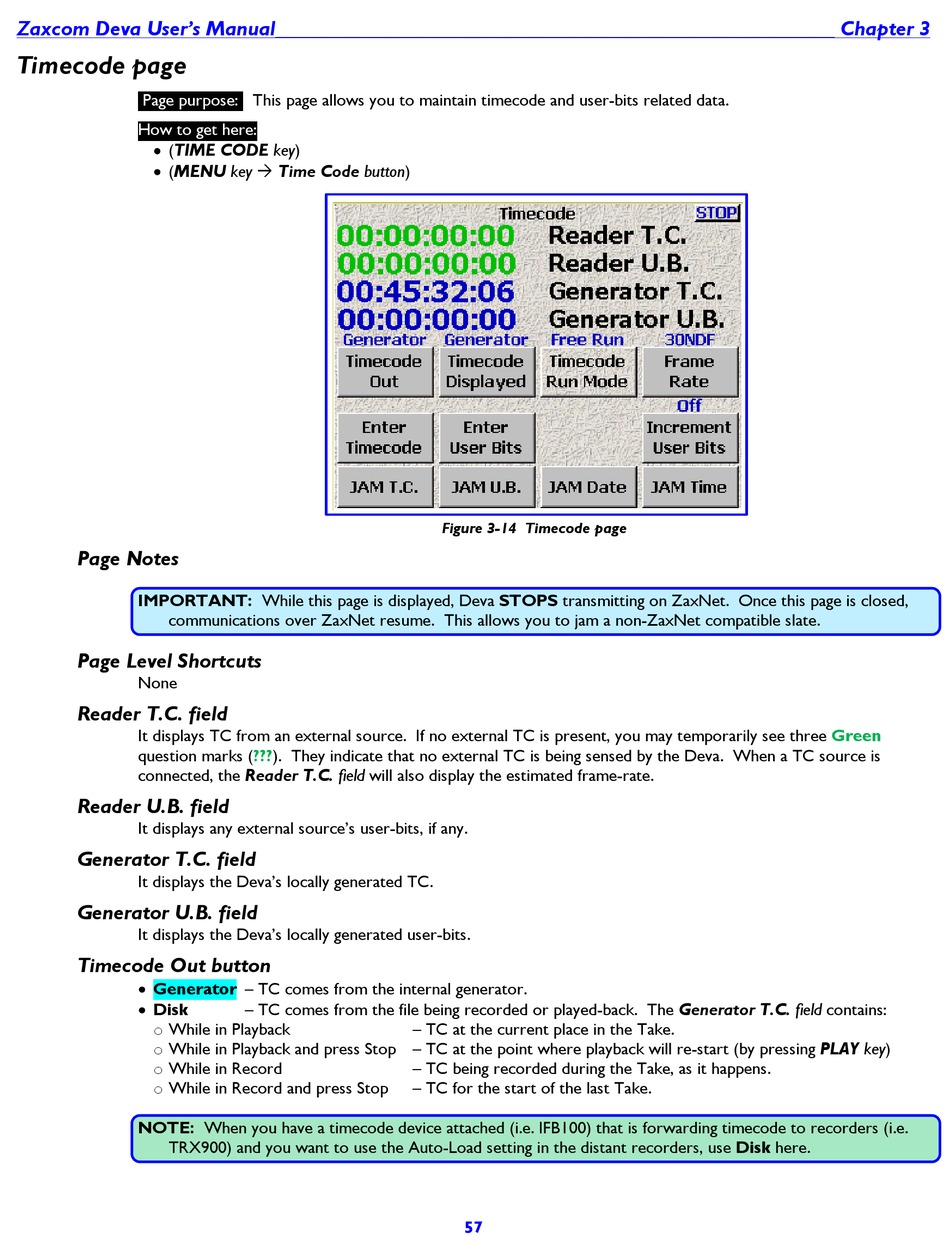

Figure 3-14 Timecode Page - Zaxcom Deva 16 User Manual

Zaxcom Deva User's Manual_______________________________________________________ Chapter 3
Timecode page
Page purpose:
How to get here:
(TIME CODE key)
(MENU key  Time Code button)
Page Notes
IMPORTANT: While this page is displayed, Deva STOPS transmitting on ZaxNet. Once this page is closed,
communications over ZaxNet resume. This allows you to jam a non-ZaxNet compatible slate.
Page Level Shortcuts
None
Reader T.C. field
It displays TC from an external source. If no external TC is present, you may temporarily see three
question marks (???). They indicate that no external TC is being sensed by the Deva. When a TC source is
connected, the Reader T.C. field will also display the estimated frame-rate.
Reader U.B. field
It displays any external source's user-bits, if any.
Generator T.C. field
It displays the Deva's locally generated TC.
Generator U.B. field
It displays the Deva's locally generated user-bits.
Timecode Out button
Generator – TC comes from the internal generator.
Disk
o While in Playback
o While in Playback and press Stop – TC at the point where playback will re-start (by pressing PLAY key)
o While in Record
o While in Record and press Stop
NOTE: When you have a timecode device attached (i.e. IFB100) that is forwarding timecode to recorders (i.e.
TRX900) and you want to use the Auto-Load setting in the distant recorders, use Disk here.
This page allows you to maintain timecode and user-bits related data.
– TC comes from the file being recorded or played-back. The Generator T.C. field contains:
– TC at the current place in the Take.
– TC being recorded during the Take, as it happens.
– TC for the start of the last Take.

Figure 3-14 Timecode page
