Digital Input (#) page

Page purpose:
How to get here:
(MENU key  Input Configure button  Analog Inputs Toggle button {=Digital}  Digital (#) buttons)

Page Notes

None

Page Level Shortcuts

1 – 8 keys – the same as clicking on analog channel buttons 1 – 8.
D key
E key
B key

Delay button

Press it to enter a value for the duration of this input's delay.
(Valid range: 0 – 40 ms, Value step: 1)

Delay button Shortcuts

See: Common Data Entry Field Shortcuts List

HPF button

Press it to enter a value for the cutoff frequency for this input's high-pass filter.
Off
(Valid range: 30 – 240 Hz, Value step: 1)

HPF button Shortcuts

See: Common Data Entry Field Shortcuts List

Trimmer graphic fader

It sets the pre-amp level for this channel to optimize this channel's performance. If you look at the bottom of the
fader background, you'll see the numeric representation of the slider's position, within 0.25 dB. This makes it easy
to repeat a setting, if necessary. (Valid range: -20 – 0 – +30 dB, Value step: 0.25)
NOTE: The scale is NOT dBFS and it is NOT dBu. It is a purely relative comparison to the input value arriving
at the fader.
This page maintains several parameters for each digital input channel.
– goes to the Digital Input (#) – Dynamics page
– goes to the Digital Input (#) – EQ page
as the EQ key on the Mix-12.
– goes to the Digital Input (#) – BUS page
same as the BUS key on the Mix-12.

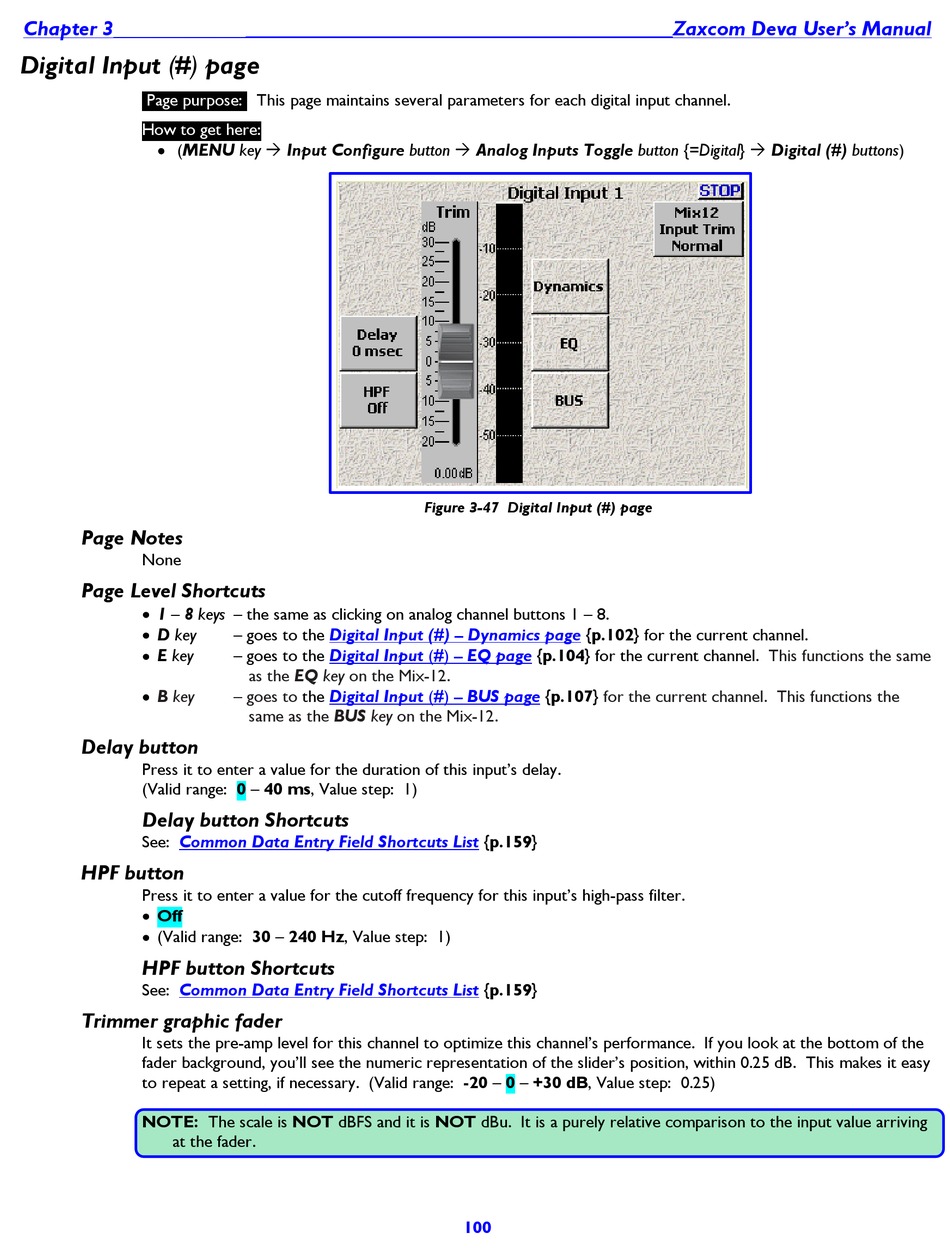

Figure 3-47 Digital Input (#) page
{p.102} for the current channel.
{p.104} for the current channel.
{p.107} for the current channel. This functions the
{p.159}
{p.159}
