Zaxcom Deva User's Manual_______________________________________________________ Chapter 3

(Analog / Digital) Input Delay page

Page purpose:
How to get here:
Analog
(MENU key  Input Configure button  Adjust Delay button)
Digital
(MENU key  Input Configure button  Analog Inputs Toggle button {=Digital}  Adjust Delay button)

Page Notes

None

Page Level Shortcuts

0 – 9 keys – opens the data entry field for the currently selected (highlighted) button (see Enter Delay button

Channel (#) buttons

Unit = msec
Unit = samples – Valid range based on Sampling-rate

More Delay button

Pressing it increments the selected parameter by its step value.

Less Delay button

Pressing it decrements the selected parameter by its step value.

Enter Delay button

Press it to directly enter the value and press the ENTER key.

Enter Delay button Shortcuts

See: Common Data Entry Field Shortcuts List

Clear Delay button

Pressing it resets all of the channels to zero at one time.
This page allows you to set a digital delay for any of the analog or digital inputs.
Analog Input Delay view

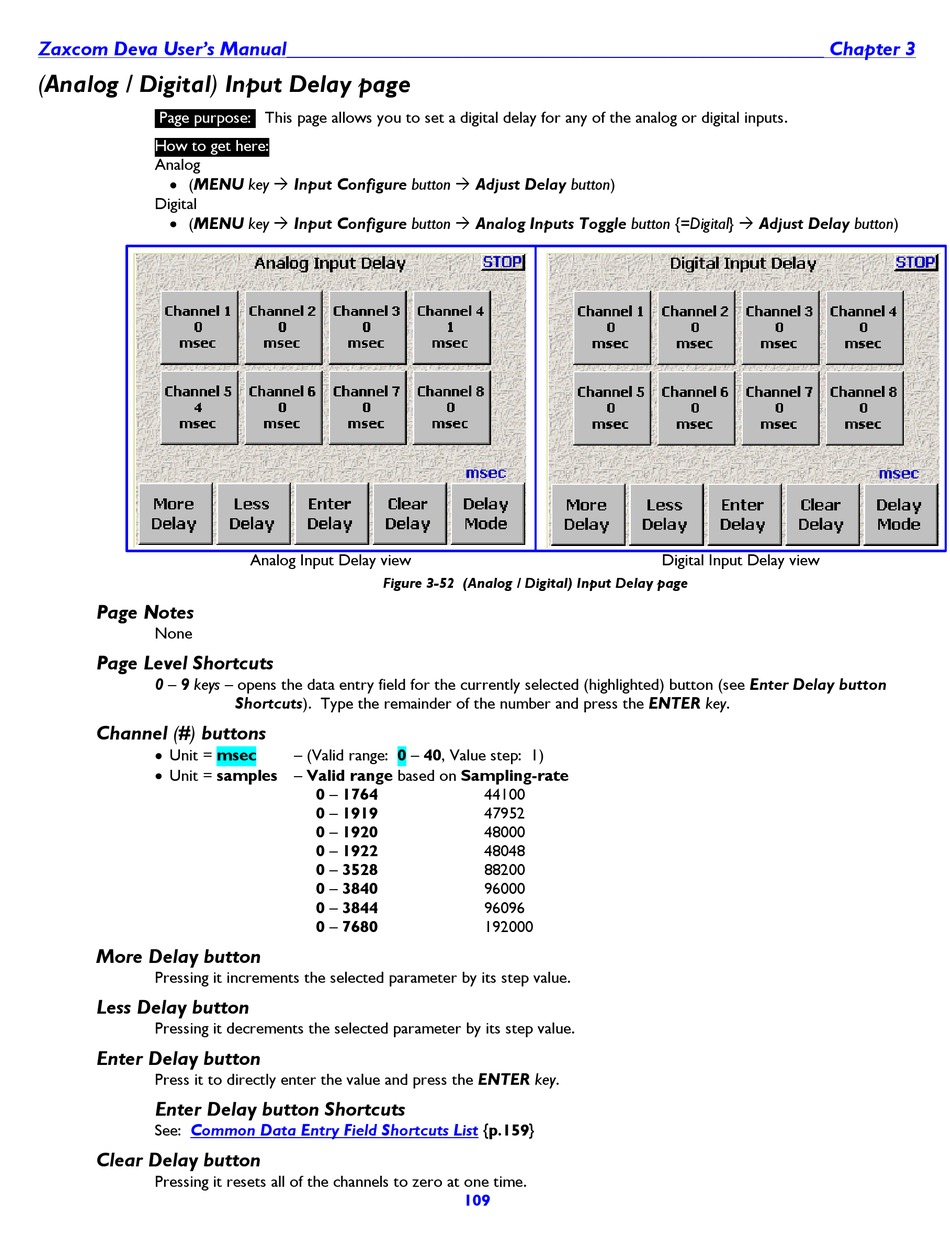

Figure 3-52 (Analog / Digital) Input Delay page
Shortcuts). Type the remainder of the number and press the ENTER key.
– (Valid range: 0 – 40, Value step: 1)
0 – 1764
0 – 1919
0 – 1920
0 – 1922
0 – 3528
0 – 3840
0 – 3844
0 – 7680
44100
47952
48000
48048
88200
96000
96096
192000
{p.159}
109
Digital Input Delay view
