Analog Input (#) page
Page purpose:
How to get here:
(MENU key  Input Configure button  Analog (#) buttons)

Page Notes

You have two methods to change each parameter on this page (does not apply to values that toggle):
o Click on a parameter button and a data entry field appears. Directly enter the value and press the ENTER
key.
o If you enter a value that is out of the valid range, the closest value in range is applied.
Page Level Shortcuts
1 – 8 keys – the same as clicking on analog channel buttons 1 – 8.
D key
E key
B key

(Mic / Line) Level button

Pressing it toggles this channel's level between LINE LEVEL and

48V (On / Off) button

Phantom power works in cooperation with the mic / line level settings. If you have a channel set to Line-Level,
you can't turn On that channel's phantom power.
NOTE: If you change a channel from microphone input (Mic) to line input (Line), the phantom power for that
channel is turned 'OFF' and the

Setting Phantom Power

To turn 'ON' 48V phantom power, select the 48V (On / Off) button. When phantom power is enabled, 48V Off
changes to
Delay button
Press it to enter a value for the duration of this input's delay.
Unit = msec
Unit = samples – (Valid range: 0 – 1920, Value step: 1)
Delay button Shortcuts
See: Common Data Entry Field Shortcuts List
This page maintains several parameters for each analog input channel.
– goes to the Analog Input (#) – Dynamics page
– goes to the Analog Input (#) – EQ page
as the EQ key on the Mix-12.
– goes to the Analog Input (#) – BUS page
same as the BUS key on the Mix-12.
48V On
48V On.
– (Valid range: 0 – 40, Value step: 1)

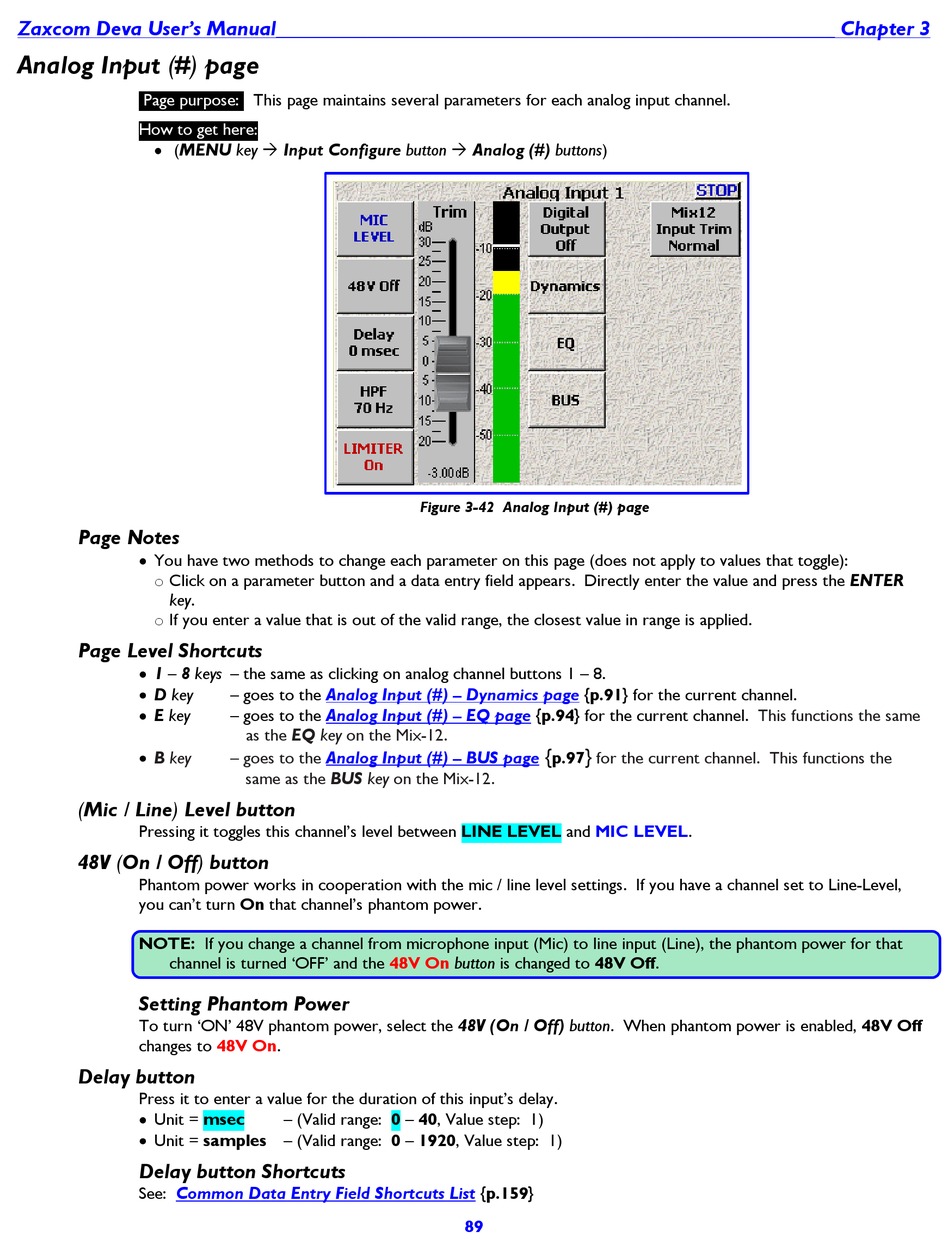

Figure 3-42 Analog Input (#) page

{p.91} for the current channel.
{p.94} for the current channel.
{ }
p.97 for the current channel. This functions the
MIC
button is changed to 48V Off.
{p.159}
89
This functions the same
LEVEL.
