EVALUATION BOARD DESCRIPTION

The Evaluation board allows the flexible testing of the ADAV4601 audio processor. Both analog and digital I/O can
be handled. The various connectors are listed below.
Table 1 Evaluation Board Connectors
Connector Name
J2
J3
J6
J7
J8
J10
J12
J13
J18
J20
7.5V Power 7.5V Power
SPDIF Out SPDIF Out
Supply Supply
Mute Switch Mute Switch
Reset Switch Reset Switch
SPDIF In SPDIF In
ADAV4601 System Design Document
Rev.1 August 2009
Function
7.5V DC Power supply
96-way connector
PWM Outputs
AUXOUT4 Left and Right
AUXIN1 Left and Right
Headphone 1 Output
3 Way Jumper, ADAV4601 Clock Select
AUXOUT1 Left and Right
USB Mini Connector
AUXOUT3 Left and Right
USB USB
PWM Out PWM Out

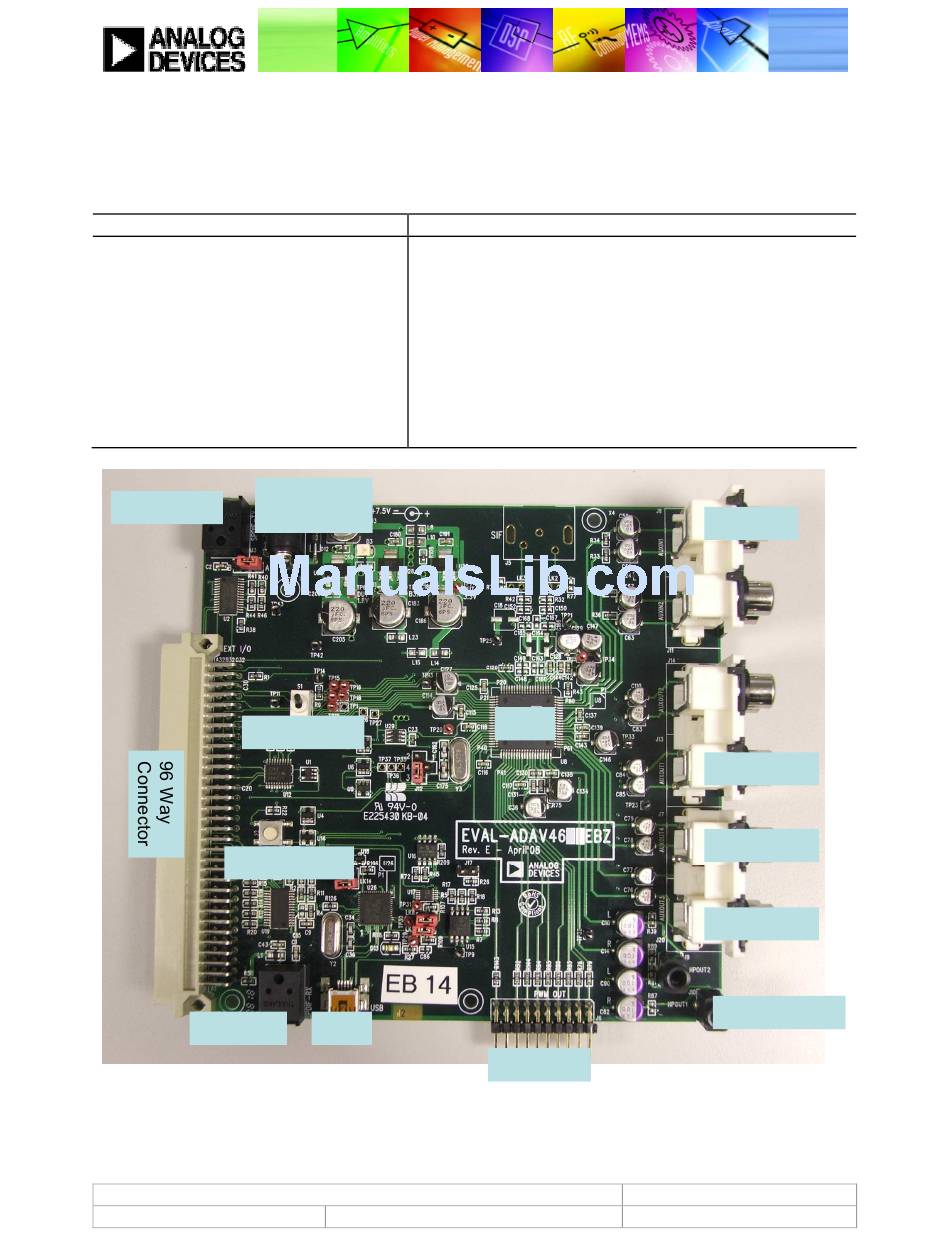

Figure 2: ADAV4601 Rev E Evaluation Board
Analog Devices
DUT DUT
Confidential Information
Page 7
AUXIN 1 AUXIN 1
AUXOUT 1 AUXOUT 1
AUXOUT 4 AUXOUT 4
AUXOUT 3 AUXOUT 3
Headphone 1 Headphone 1
