Loudness Wizard

The loudness wizard creates a loudness block control. This control will have two fields in the register, one to control
the cutoff frequency and one to control the level. The wizard will automatically create these two fields, and assign
the suffixes _LFC and _LLEVEL to generate the two inputs.
1) Select the maximum, default
and minimum values along with
step sizes

Clipper Wizard

Controls the clipper blocks. This wizard is very similar to the volume / gain wizard.
1) Select the maximum, default
and minimum values along with
step sizes

Mute Wizard

Controls the mute blocks.
1) If ticked, a 0 will mute the
output. If unticked a 1 will mute
the output.
2) If ticked, by default the block
will be muted
ADAV4601 System Design Document
Rev.1 August 2009

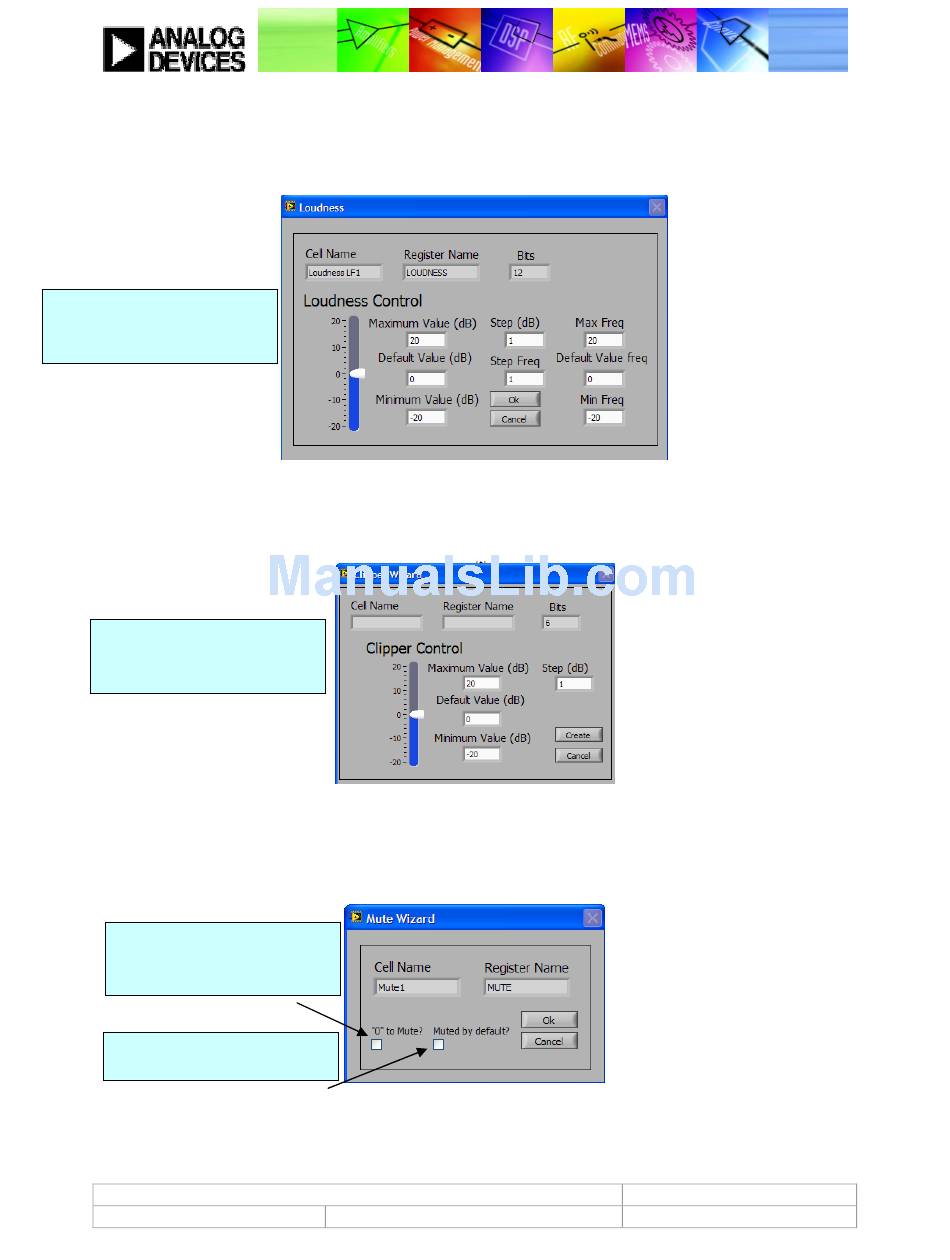

Figure 66: Loudness wizard
Figure 67: Clipper wizard
Figure 68: Mute wizard
