One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the
AD7606C-18
1 MSPS Bipolar Input, Simultaneous Sampling ADCs

FEATURES

Fully featured evaluation board for the AD7606C-18 and the
AD7606C-16
On-board power supplies
Standalone capability
SDP-H1
compatible
PC software for control and data analysis
Time and frequency domain

EVALUATION KIT CONTENTS

EVAL-AD7606C18FMCZ or EVAL-AD7606C16FMCZ

ADDITIONAL EQUIPMENT NEEDED

EVAL-SDP-CH1Z
(SDP-H1) high speed controller board
PC running Windows Vista SP2 (32-bit or 64-bit), Windows 7
SP1 (32-bit or 64-bit), Windows 8.1 (32-bit or 64-bit), or
Windows 10 (32-bit or 64-bit) with a USB 2.0 port
DC and ac signal source
SMB and USB cables
External supply (optional)

DOCUMENTS NEEDED

AD7606C-18 or AD7606C-16 data sheet

ONLINE RESOURCES

ACE
software
AD7606C-18 or AD7606C-16 ACE plugin (provided in ACE)
AD7606x Family Software Model
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
EVAL-AD7606CFMCZ
and
AD7606C-16

EVALUATION BOARD DESCRIPTION

The EVAL-AD7606CFMCZ is a fully featured evaluation board
that allows users to evaluate the features of the AD7606C-18 and
AD7606C-16 analog-to-digital converters (ADCs). The EVAL-
AD7606CFMCZ is controlled by the EVAL-SDP-CH1Z (SDP-H1)
system demonstration platform (SDP). The SDP-H1 controls the
EVAL-AD7606CFMCZ through the USB port of a PC using the
Analysis | Control | Evaluation (ACE) software, which is available
to download from the ACE software page or the AD7606C-18
or the AD7606C-16 product page.
The on-board components include the
low noise, low dropout (LDO) linear regulators and an
high precision, band gap voltage reference.

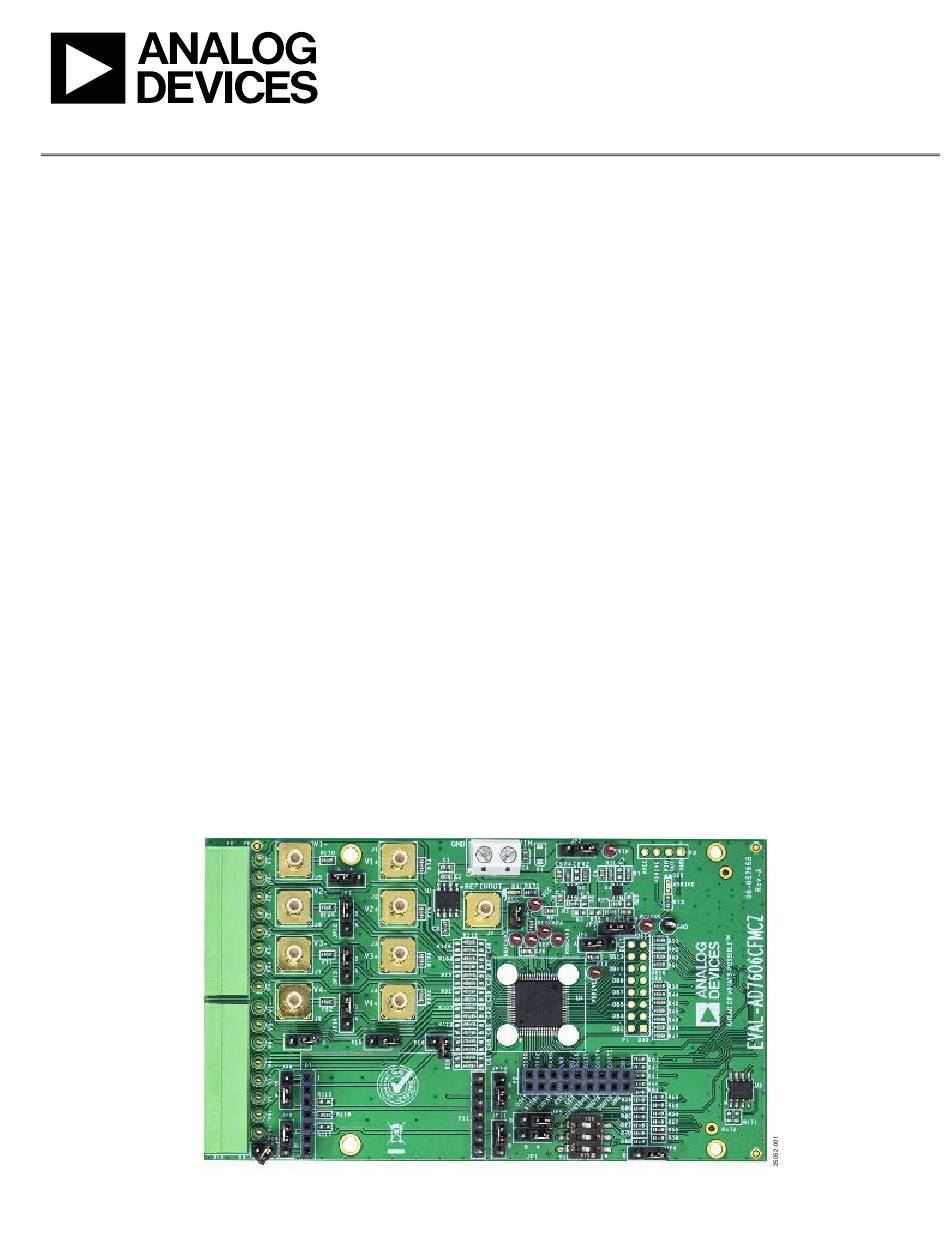

Figure 1 shows the evaluation board photograph. The printed
model number on the evaluation board is EVAL-AD7606CFMCZ.
For full details on the AD7606C-18 and the AD7606C-16, see
the AD7606C-18 and AD7606C-16 data sheets, which must be
consulted in conjunction with this user guide when using the
EVAL-AD7606CFMCZ. In addition, full details on the SDP-H1
are available on the SDP-H1 product page.
Throughout this user guide, the EVAL-AD7606CFMCZ refers
to either the EVAL-AD7606C18FMCZ or the EVAL-
AD7606C16FMCZ.

EVALUATION BOARD PHOTOGRAPH

Figure 1.
Rev. A | Page 1 of 15
Evaluation Board User Guide
8-Channel DASs with 18-Bit/16-Bit,
UG-1870
ADP7118
5 V and 3.3 V
ADR4525

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVAL-AD7606C16FMCZ and is the answer not in the manual?

Questions and answers

Summary of Contents for Analog Devices EVAL-AD7606C16FMCZ

  • Page 1: Features

    Analysis | Control | Evaluation (ACE) software, which is available to download from the ACE software page or the AD7606C-18 EVALUATION KIT CONTENTS or the AD7606C-16 product page. EVAL-AD7606C18FMCZ or EVAL-AD7606C16FMCZ The on-board components include the ADP7118 5 V and 3.3 V...
  • Page 2: Table Of Contents

    Change to ACE Software Operation Section......10 1/2021—Rev. 0 to Rev. A Change to Description of Analysis Window Section ....13 Added AD7606C-16 ............Universal Added EVAL-AD7606C16FMCZ ........Universal 10/2020—Revision 0: Initial Version Changed EVAL-AD7606C18FMCZ to EVAL-AD7606CFMCZ ..................Throughout Rev. A | Page 2 of 15...
  • Page 3: Evaluation Board Quick Start Guide

    USB port of the PC. Launch the ACE software from the following location: Restart the PC after the installation process completes. For C:\Program Files (x86)\Analog Devices\ACE. complete software installation instructions, see the Connect an input signal via the Channel 1 to Channel 8 Software Installation section.
  • Page 4: Evaluation Board Hardware

    UG-1870 EVAL-AD7606CFMCZ Evaluation Board User Guide EVALUATION BOARD HARDWARE DEVICE DESCRIPTION The default interface to the EVAL-AD7606CFMCZ is achieved via the field programmable gate array (FPGA) mezzanine card The 18-bit AD7606C-18 and the 16-bit AD7606C-16 (FMC) connector, which connects the EVAL-AD7606CFMCZ 8-channel, simultaneous sampling, successive approximation to the SDP-H1.
  • Page 5 EVAL-AD7606CFMCZ Evaluation Board User Guide UG-1870 Link Default Position Function Use JP3 to select the V source for the AD7606C-18 and the AD7606C-16. DRIVE In Position A, the AD7606C-18 or the AD7606C-16 is supplied with 3.3 V from the ADP7118. In Position B, the AD7606C-18 or the AD7606C-16 is supplied with 3.3 V from the SDP-H1.
  • Page 6: Evaluation Board Software

    Double click the ACEInstall.exe file to begin the installation. By default, the software is saved to the following location: C:\Program Files (x86)\Analog Devices\ACE. A dialog box opens asking for permission to allow the program to make changes to the PC. Click Yes to begin the Figure 3.
  • Page 7 EVAL-AD7606CFMCZ Evaluation Board User Guide UG-1870 software components to install are preselected (see Figure 5). Click Install. Figure 7. Installation in Progress When the installation is complete, click Next > (see Figure 8), and then click Finish to complete the installation process. Figure 5.
  • Page 8: Evaluation Board Setup Procedures

    System Tools, click Device Manager. If the SDP-H1 AD7606CFMCZ. driver is installed and the SDP-H1 is properly connected to Connecting the EVAL-AD7606CFMCZ and the SDP-H1 to the PC, Analog Devices SDP-H1 is shown in the a PC ADI Development Tools list in the Device Manager After the software is installed, take the following steps to window, as shown in Figure 9.
  • Page 9: Ace Software Operation

    From the Start menu of the PC, select All Programs > The available programmable blocks in the AD7606C-18 chip Analog Devices > ACE> ACE.exe to open the ACE view window are as follows: software main window shown in Figure 10.
  • Page 10: Change To Ace Software Operation Section

    UG-1870 EVAL-AD7606CFMCZ Evaluation Board User Guide Figure 11. AD7606C-18 Board View Figure 12. AD7606C-18 Chip View Window Rev. A | Page 10 of 15...
  • Page 11: Description Of Memory Map View Window

    EVAL-AD7606CFMCZ Evaluation Board User Guide UG-1870 Figure 13. Configurable Pop-Up Window Figure 14. AD7606C-18 Memory Map View Window DESCRIPTION OF MEMORY MAP VIEW WINDOW Click Read All to read the values of all the registers from the chip. Click Proceed to Memory Map in the AD7606C-18 chip view Click Read Selected to read the selected register from the chip.
  • Page 12: Description Of Analysis Window

    UG-1870 EVAL-AD7606CFMCZ Evaluation Board User Guide Figure 15. AD7606C-18 Analysis View Window DESCRIPTION OF ANALYSIS WINDOW selected, the number of data lines can be selected through the DOUT Configuration pulldown menu. Click Proceed to Analysis in the AD7606C-18 chip view window (see Figure 12) to open the AD7606C-18 Analysis The Oversampling Ratio (Software) pulldown menu in the Device Configuration section can be set between 2 and 64 (in...
  • Page 13: Histogram Tab

    AD7606C ACE Remote Control page on The RESULTS pane displays the information related to the dc the Analog Devices, Inc., website and follow the instructions to performance. operate the hardware and software, set up the The Histogram graph displays the number of hits per code within Python/MATLAB environment, and begin communication the sampled data (see Figure 17).
  • Page 14 UG-1870 EVAL-AD7606CFMCZ Evaluation Board User Guide Figure 16. Waveform Tab Figure 17. Histogram Tab Rev. A | Page 14 of 15...
  • Page 15 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
