Enable Wizard

Controls the enable block.
1) If ticked, a 0 will mute the
output. If unticked a 1 will mute
the output.
2) If ticked, by default the block
will be muted

Imported Registers

Some of the cell types create the registers importing a code file (*.cod). The GUI will request the *.cod file, and it will
check that the cell type in the project matches the cell type defined in the .cod file.
Please note that these registers will not be editable, and they will be exclusive to the cell added to them. This
means, it's not possible to add a cell to a previously created register, if this one was an imported register.
We provide a set of .COD files for the following cell types:
ADI Surround
•
AVC
•
BBE
•
BBE VIVA
•
BassEnhance
•
Compressor
•
The .cod files can be found on the AppLayer / import_code_files / directory. Once the code file is selected, a register
like the example in Figure 70 (AVC block) will be automatically added to the register map.
1) Select the cell that
will be code-imported
1) Input register name
2) Select input name
(Internal use only, won't
be used as any input
name)
ADAV4601 System Design Document
Rev.1 August 2009

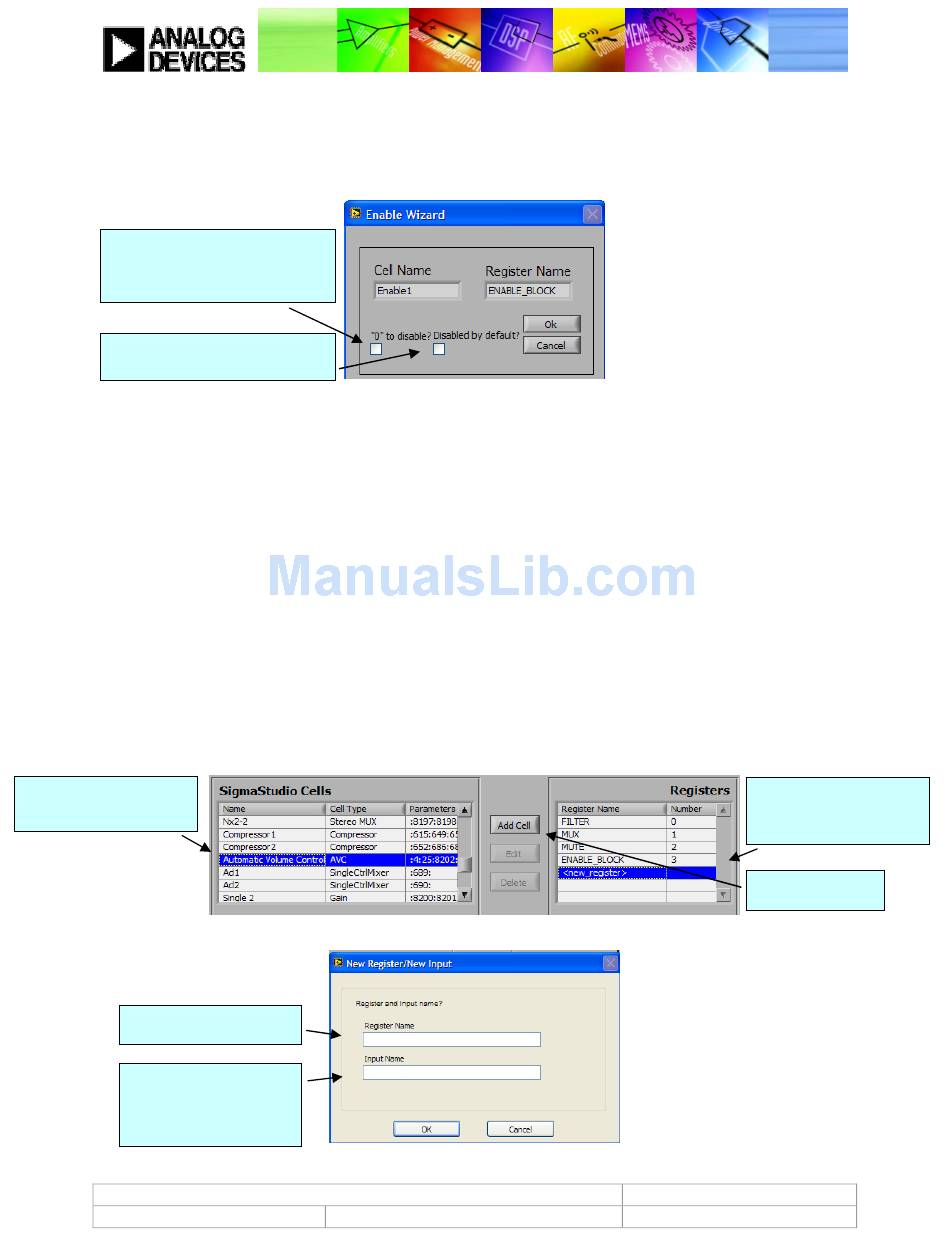

Figure 69: Enable wizard
Figure 70: Import Wizard (1)
Figure 71: Import Wizard (1)
Analog Devices
2) Select "new_register"
(imported cells can't
share registers)
3) Click Add Cell
