One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the
FEATURES
Full featured evaluation board for the
On-board power supplies
Standalone capability
System demonstration platform (SDP) compatible
(EVAL-SDP-CB1Z)
PC software for control and data analysis (download from
AD7606
product page)
EVALUATION KIT CONTENTS
EVAL-AD7606SDZ
evaluation board
Evaluation software CD for the
Mains power supply adapter
Screw/nut kit
ADDITIONAL EQUIPMENT NEEDED
EVAL-SDP-CB1Z
system demonstration platform
PC running Windows Vista or Windows 7 with USB 2.0 port
Signal source
SMB cables
USB cable
ONLINE RESOURCES
Documents Needed
AD7606
data sheet
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
AD7606
16-Bit simultaneous sampling, 8-Channel, SAR ADC
AD7606
AD7606

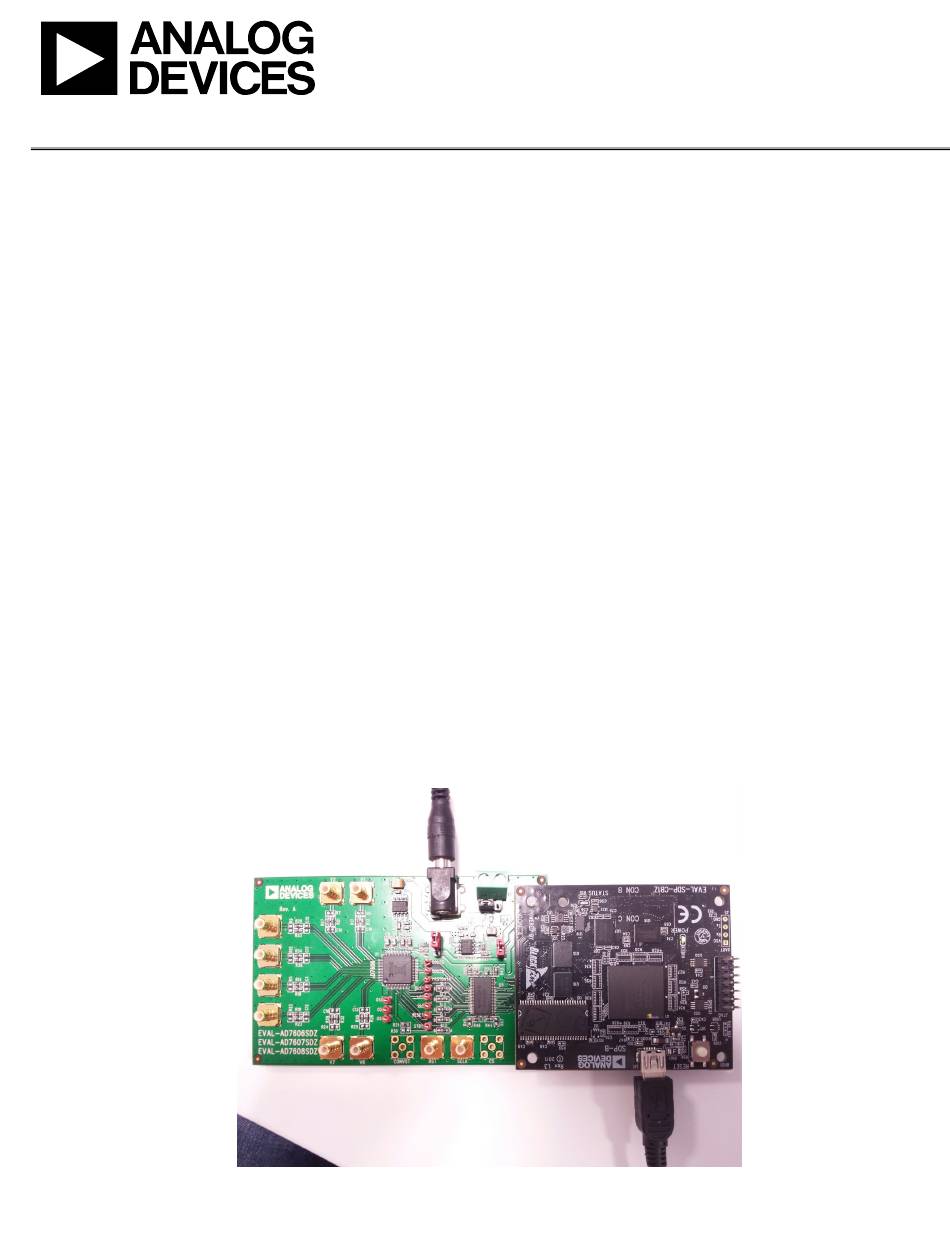

TYPICAL SETUP
Rev. PR.A| Page 1 of 13
EVAL-AD7928SDZ User Guide
EVAL-AD7606SDZ
Required Software
AD7606
evaluation software
Design and Integration Files
Schematics, layout files, bill of materials
EVALUATION BOARD DESCRIPTION
The
EVAL-AD7606SDZ
allows the user to easily evaluate all the features of the
analog-to-digital converter (ADC). The evaluation board can be
controlled by the
EVAL-SDP-CB1Z
SDP connector (J102). The SDP board allows the evaluation
board to be controlled through the USB port of a PC using the
AD7606
evaluation software, which is available for download
from the product page or from the installer CD included in the
evaluation board kit.
On-board components include the following:
ADP7104ARDZ-5.0: 5 V, low noise LDO
•
ADR421: high precision, band gap voltage reference
•
Figure 1.
user guide
is a full featured evaluation board that
SDP board via a 120-way
AD7606
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-AD7928SDZ
Summary of Contents for Analog Devices EVAL-AD7928SDZ
-
Page 1: Features
EVAL-AD7928SDZ User Guide One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluating the AD7606 16-Bit simultaneous sampling, 8-Channel, SAR ADC FEATURES EVAL-AD7606SDZ user guide Required Software Full featured evaluation board for the... -
Page 2: Table Of Contents
EVAL-AD7928SDZ User Guide TABLE OF CONTENTS Features ....................1 Power Supplies ................4 Evaluation Kit Contents ..............1 Sockets/Connectors ..............6 Additional Equipment Needed ............1 Evaluation Board Software ...............7 Online Resources ................1 Software Installation ..............7 Evaluation Board Description............1 Software Operation ..............10 Typical Setup .................. -
Page 3: Quick Start Guide
SDP board if prompted by the operating restarted after the installation.) system. Ensure that the various link options are configured as Launch the evaluation software from the Analog Devices outlined in Table 2. subfolder in the Programs menu. Connect the... -
Page 4: Evaluation Board Hardware
EVAL-AD7928SDZ User Guide EVALUATION BOARD HARDWARE DEVICE DESCRIPTION Connect the supply to a 100 V to 240 V ac wall outlet at 50 Hz to 60 Hz. The output from the supply is provided through a 2.0 AD7606 ADC is a 16-bit, , 8-channel, simultaneous mm inner diameter jack that connects to the evaluation board sampling successive approximation ADC. - Page 5 EVAL-AD7928SDZ User Guide Table 2. Link Options Link Default Position Function This link is used to select the power supply source for the EVAL-AD7606SDZ. In Position A, the board is powered with the J1 wall wart connector. In Position B, The J3 terminal block s the source.
-
Page 6: Sockets/Connectors
EVAL-AD7928SDZ User Guide SOCKETS/CONNECTORS The connectors and sockets on the AD7606 evaluation board are outlined in Table 3. Table 3. On-Board Connectors Connector Function 7 V to 9 V, 2.0 mm dc jack connector 120-way connector for EVAL-SDP-CB1Z interface External power connector, 7 V to 9 V dc input J1-8 Analog input terminal block. -
Page 7: Evaluation Board Software
EVAL-AD7928SDZ User Guide EVALUATION BOARD SOFTWARE SOFTWARE INSTALLATION EVAL-AD7606SDZ kit includes the evaluation software on a CD; the software is also available for download from the AD7606 product page. There are two parts to the installation: EVAL-AD7606SDZ evaluation software installation •... - Page 8 EVAL-AD7928SDZ User Guide Figure 6. Evaluation Software Installation—Installation Complete The installation of the evaluation software completes. Rev. Pr.A | Page 8 of 13...
- Page 9 EVAL-AD7928SDZ User Guide Installing the SDP Board Drivers The SDP drivers installation completes. Click Finish. After the evaluation board software installation is complete, the ADI SDP Drivers Setup wizard window opens for the installation of the EVAL-SDP-CB1Z SDP board drivers.
-
Page 10: Software Operation
EVAL-AD7928SDZ User Guide Figure 12. AD7606/7/8 Main Window SOFTWARE OPERATION top portion of the screen contains the menu bar and the screen can be divided into three main sections: Part Information, The main function of this window is to allow you to read Data Capture, and Linearity. -
Page 11: Using The Software
EVAL-AD7928SDZ User Guide One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluating the AD7606 16-Bit simultaneous sampling, 8-Channel, SAR ADC USING THE SOFTWARE At the bottom left of the graph are the zoom options. These CONFIGURATION TAB allow you to zoom in and out to get a closer look at a sample. - Page 12 EVAL-AD7928SDZ User Guide the sampling frequency up to this rate and the number of nitely until you click Stop. (The Continuous button switches samples to be taken. to Stop when clicked). The samples taken are then uploaded and displayed. An FFT Note that no data appears on the screen if the channels are not and/or histogram can be calculated and displayed.
- Page 13 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
