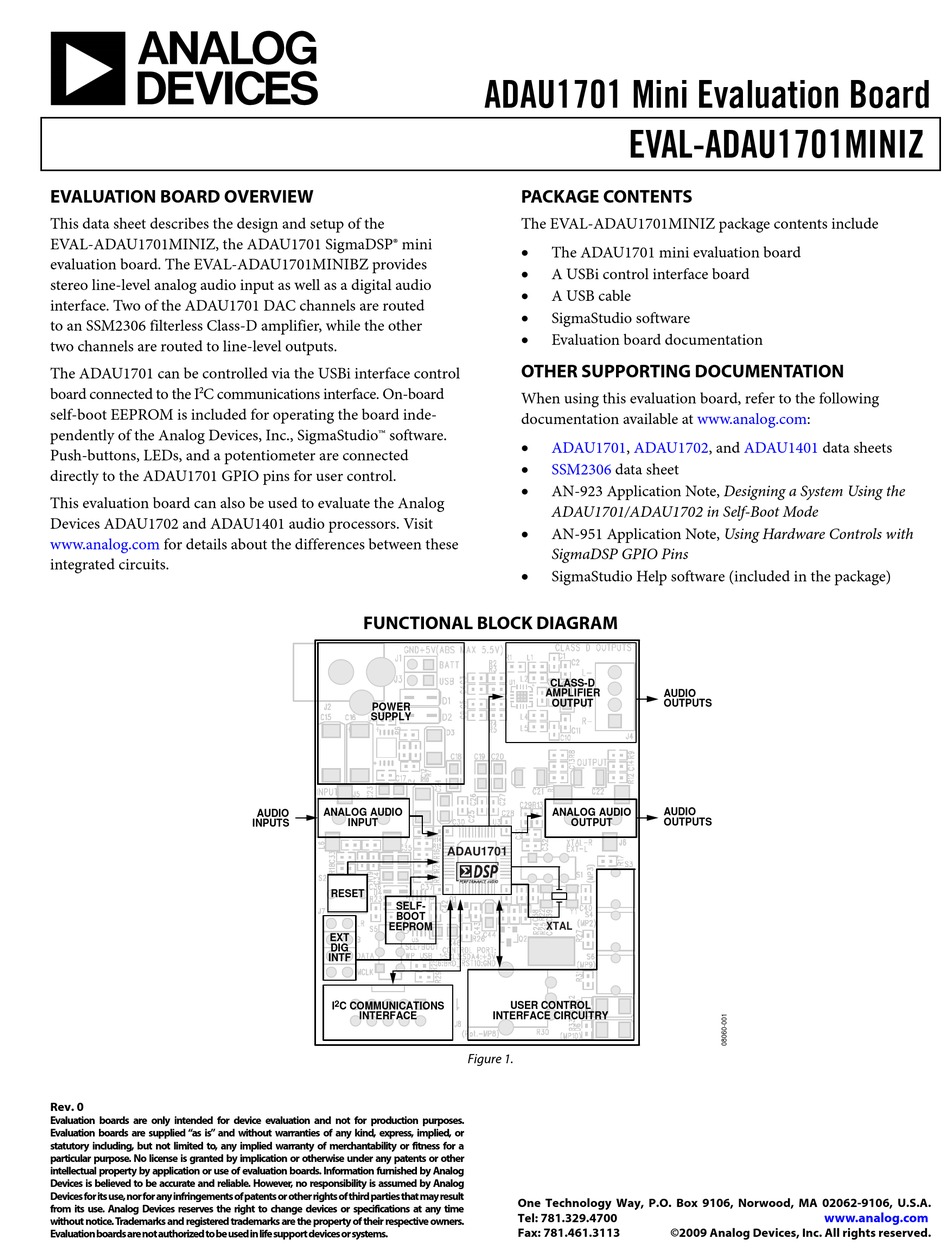

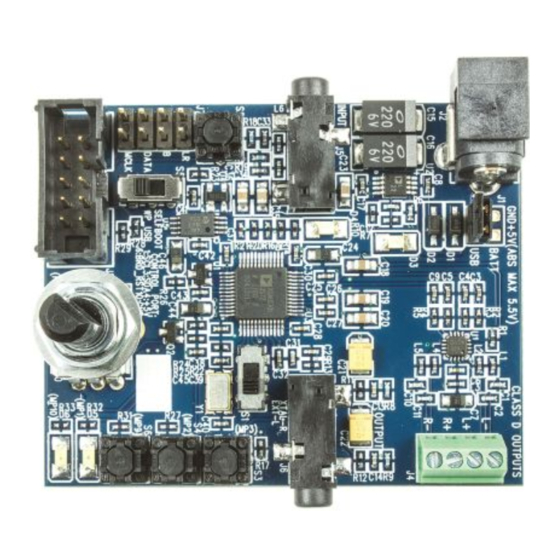

EVALUATION BOARD OVERVIEW
This data sheet describes the design and setup of the
EVAL-ADAU1701MINIZ, the ADAU1701 SigmaDSP® mini
evaluation board. The EVAL-ADAU1701MINIBZ provides
stereo line-level analog audio input as well as a digital audio
interface. Two of the ADAU1701 DAC channels are routed
to an SSM2306 filterless Class-D amplifier, while the other
two channels are routed to line-level outputs.
The ADAU1701 can be controlled via the USBi interface control
2
board connected to the I
C communications interface. On-board
self-boot EEPROM is included for operating the board inde-
pendently of the Analog Devices, Inc., SigmaStudio™ software.
Push-buttons, LEDs, and a potentiometer are connected
directly to the ADAU1701 GPIO pins for user control.
This evaluation board can also be used to evaluate the Analog
Devices ADAU1702 and ADAU1401 audio processors. Visit
www.analog.com
for details about the differences between these
integrated circuits.
Rev. 0
Evaluation boards are only intended for device evaluation and not for production purposes.
Evaluation boards are supplied "as is" and without warranties of any kind, express, implied, or
statutory including, but not limited to, any implied warranty of merchantability or fitness for a
particular purpose. No license is granted by implication or otherwise under any patents or other
intellectual property by application or use of evaluation boards. Information furnished by Analog
Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog
Devices for its use, nor for any infringements of patents or other rights of third parties that may result
from its use. Analog Devices reserves the right to change devices or specifications at any time
without notice. Trademarks and registered trademarks are the property of their respective owners.
Evaluation boards are not authorized to be used in life support devices or systems.
FUNCTIONAL BLOCK DIAGRAM
POWER
SUPPLY
ANALOG AUDIO
AUDIO
INPUT
INPUTS
RESET
SELF-
BOOT
EEPROM
EXT
DIG
INTF
2
I
C COMMUNICATIONS
INTERFACE
ADAU1701 Mini Evaluation Board
PACKAGE CONTENTS
The EVAL-ADAU1701MINIZ package contents include
x
The ADAU1701 mini evaluation board
x
A USBi control interface board
x
A USB cable
x
SigmaStudio software
x
Evaluation board documentation
OTHER SUPPORTING DOCUMENTATION
When using this evaluation board, refer to the following
documentation available at www.analog.com:
x
ADAU1701, ADAU1702, and
x
SSM2306
data sheet
x
AN-923 Application Note, Designing a System Using the
ADAU1701/ADAU1702 in Self-Boot Mode
x
AN-951 Application Note, Using Hardware Controls with
SigmaDSP GPIO Pins
x
SigmaStudio Help software (included in the package)
CLASS-D
AMPLIFIER
OUTPUT
ANALOG AUDIO
OUTPUT
ADAU1701
XTAL
USER CONTROL
INTERFACE CIRCUITRY
Figure 1.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
Fax: 781.461.3113
EVAL-ADAU1701MINIZ
ADAU1401
AUDIO
OUTPUTS
AUDIO
OUTPUTS
©2009 Analog Devices, Inc. All rights reserved.
data sheets
www.analog.com
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-ADAU1701MINIZ
Summary of Contents for Analog Devices EVAL-ADAU1701MINIZ
-
Page 1: Evaluation Board Overview
Devices for its use, nor for any infringements of patents or other rights of third parties that may result One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. from its use. Analog Devices reserves the right to change devices or specifications at any time Tel: 781.329.4700 www.analog.com... -
Page 2: Table Of Contents
EVAL-ADAU1701MINIZ TABLE OF CONTENTS Evaluation Board Overview ............1 Analog Audio Input ..............5 Package Contents ................1 Analog Audio Line Output ............5 Other Supporting Documentation ..........1 Class-D Amplifier Output ............5 Functional Block Diagram .............. 1 Clocking the Evaluation Board ...........5 Revision History ................ -
Page 3: Setting Up The Evaluation Board
EVAL-ADAU1701MINIZ SETTING UP THE EVALUATION BOARD SETTING SWITCHES AND JUMPERS QUICK START To configure the evaluation board for stereo analog input and To quickly get started with the evaluation board, install the output, set the switches and jumpers as shown in Figure 2. - Page 4 EVAL-ADAU1701MINIZ To complete the steps, you will be working with the Hardware Configuration tab. In the Hardware Configuration tab under the GPIO box (see Figure 5), select the pull-down menu next to MP8 and set for ADC3. This allows the rotary potentiometer on the...
-
Page 5: Using The Evaluation Board
J2, or through a battery wired to J1. 12.288 MHz Crystal Right When the USBi is used to power the EVAL-ADAU1701MINIZ MCLK from Header J7 Left from the 5 V dc of the USB port (default setting), a jumper EXTERNAL DIGITAL AUDIO INPUT should be connected to J3. -
Page 6: I 2 C Communications Header
EVAL-ADAU1701MINIZ Figure 8. Using the EVAL-ADAU1701MINIZ and the USBi with SigmaStudio Figure 6. Digital Audio Input 0 through Input 7 in SigmaStudio Input Cell SELF-BOOT EEPROM Configure the corresponding multipurpose pins of the SigmaStudio can download a single set of program RAM, ADAU1701 in SigmaStudio, as shown in Figure 7. -
Page 7: Writeback Trigger Transistor
Yellow LED D5 Active high Output GPIO The settings in the SigmaStudio register control window appear as Push-button S4 Push to Input GPIO shown in Figure 13 when used with the EVAL-ADAU1701MINIZ. ground debounce, invert Push-button S3 Push to Input GPIO... -
Page 8: Schematics
EVAL-ADAU1701MINIZ SCHEMATICS Figure 14. Board Schematics Rev. 0 | Page 8 of 12... -
Page 9: Board Silkscreen And Parts Placement
EVAL-ADAU1701MINIZ BOARD SILKSCREEN AND PARTS PLACEMENT Figure 15. Board Layout Rev. 0 | Page 9 of 12... -
Page 10: Ordering Information
EVAL-ADAU1701MINIZ ORDERING INFORMATION BILL OF MATERIALS Table 5. Item Reference Designator Description Manufacturer Part Number C1, C2, C10, C11, C12 Multilayer ceramic 50 V, NP0 Murata ENA GRM1555C1H102JA01D (0402), 1.0 nF C13, C14, C31 Multilayer ceramic 16 V, X7R Kemet... - Page 11 EVAL-ADAU1701MINIZ Item Reference Designator Description Manufacturer Part Number R1, R17, R21, R23, R24, 25, R27, Chip resistor 1%, 63 mW, thick Rohm MCR01MZPF1002 R28, R29, R31 film (0402), 10.0 kΩ R10, R14, R32, R33 Chip resistor 1%, 63 mW, thick...
-
Page 12: Ordering Guide
Z = RoHS Compliant Part. Purchase of licensed I C components of Analog Devices or one of its sublicensed Associated Companies conveys a license for the purchaser under the Philips I C Patent Rights to use these components in an I C system, provided that the system conforms to the I C Standard Specification as defined by Philips.
