APPLICATION LAYER SOFTWARE GUI

To start the program, click Start -> All Programs -> Analog Devices -> Analog Devices Application Layer ->
Application Layer. Once loaded, the software GUI looks like Figure 40 below. For more information about each
function, please refer to the User Manual section.
Menu Bar
Project Information
Import SigmaStudio
SigmaStudio Cells
Cell Parameters
Table 8: Application Layer GUI
Menu Bar
Project Information
Import SigmaStudio
SigmaStudio Cells
Cell Parameters
Path Information
Register Tools
Registers List
Cells in Register
Register Information
ADAV4601 System Design Document
Rev.1 August 2009

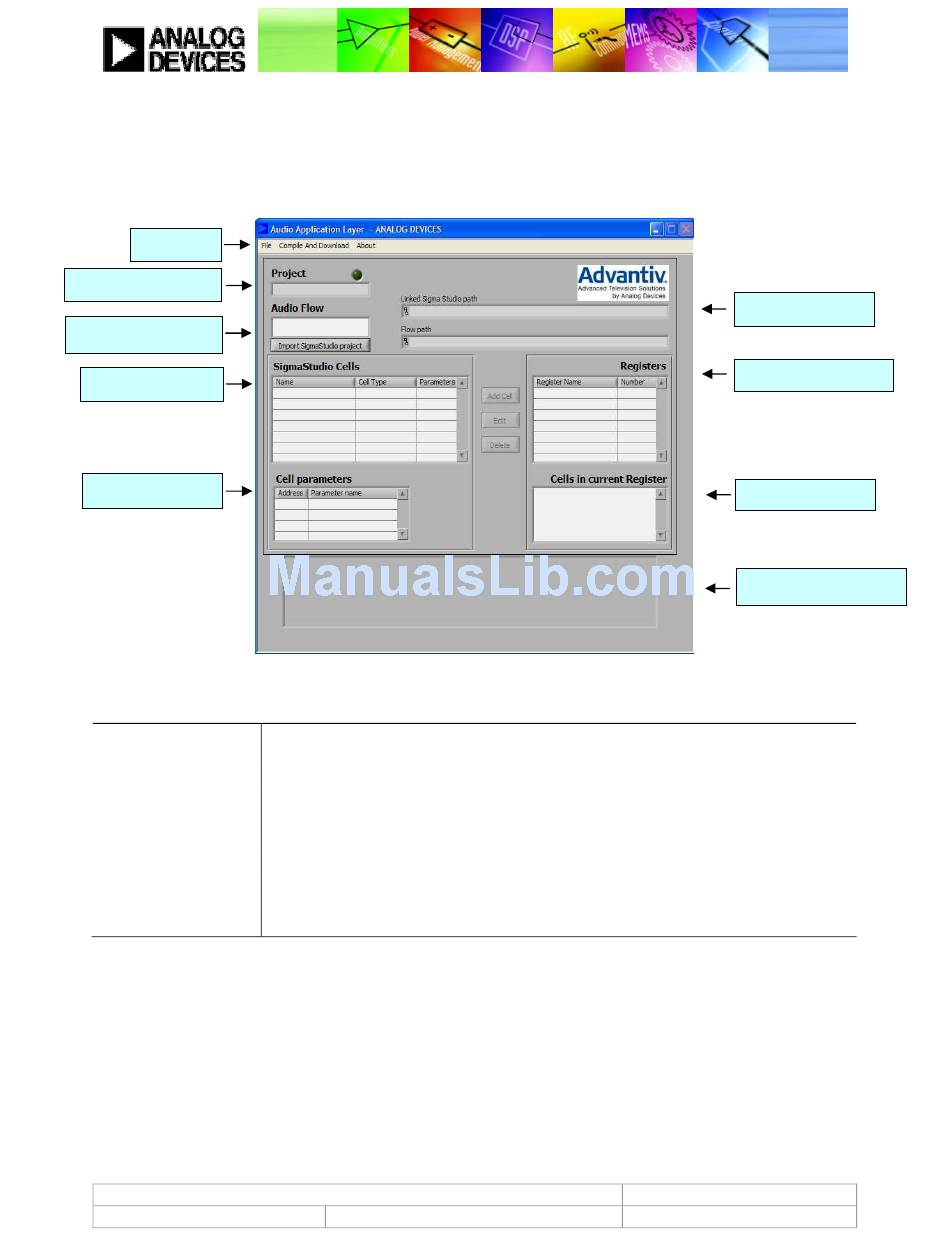

Figure 40: Application Layer GUI
Project functions (load, save, compile, download, etc.)
Current project.
Allows a link from a SigmaStudio project to the Application Layer.
Interactive list with all the cells automatically extracted from the SigmaStudio project.
Information window with the parameters related to the cell selected in the listbox above.
Path where the project is saved, and path to the linked SigmaStudio project.
Tools to manipulate the registers.
Interactive list of the current registers defined in the project
Interactive list of the cells defined in the selected register.
Displays information of the selected register.
