To Power Up the ADAV4601, select the Write button, this will write the power up sequence to the device. Once
written, the values written can be read back using the Read button. This will return the following dialog box.
Note: If the dialog box does not display these values, the part has not been programmed properly and will not
operate correctly. Reset the evaluation board and write the power up script to the evaluation board again. To reset
the evaluation board, please refer to Section 1 – Getting the Evaluation Board Up and Running for more details.
ADAV4601 System Design Document
Rev.1 August 2009

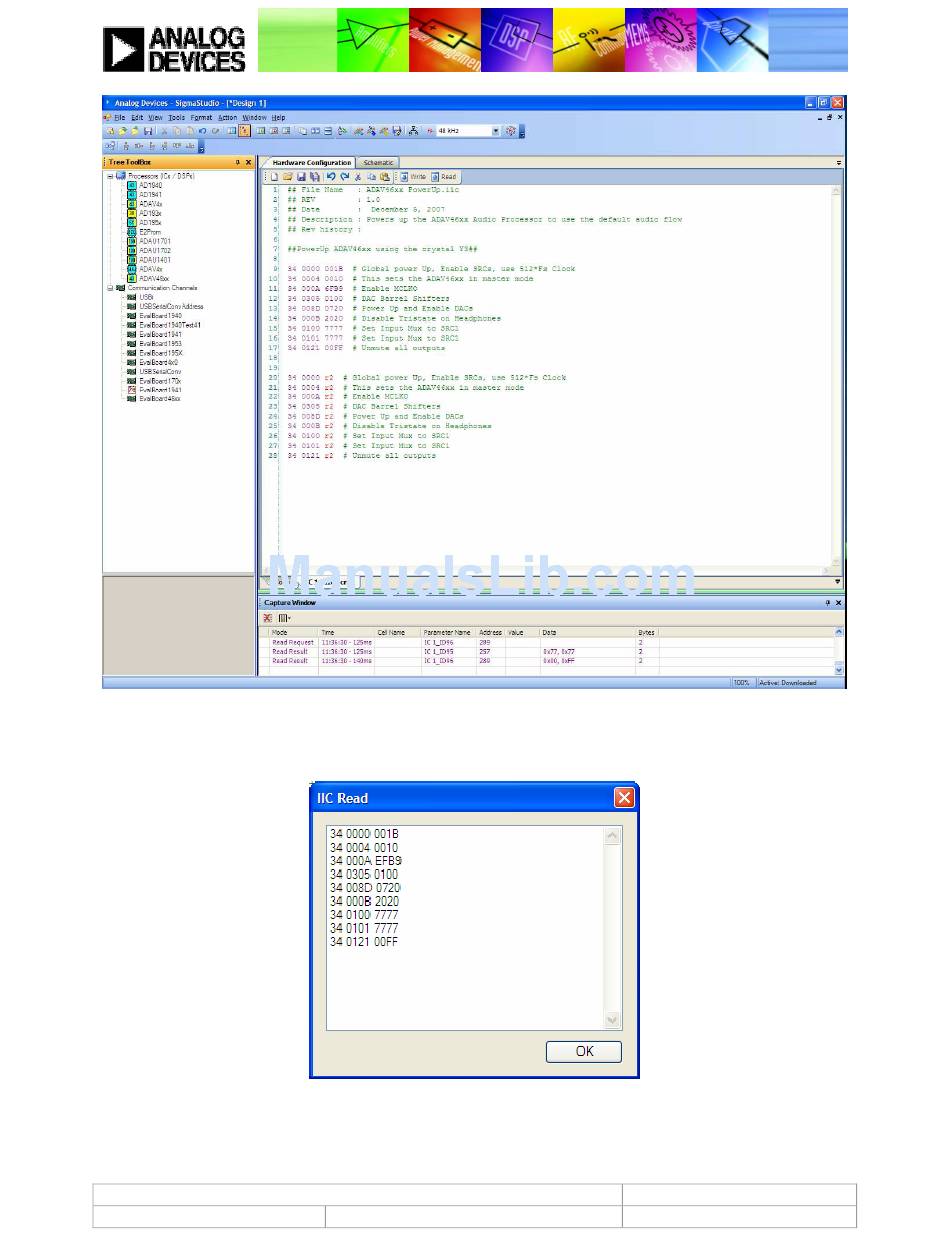

Figure 31: Power UpADAV4601.iic
Figure 32: Readback ADAV4601 PowerUp Script
