Evaluating the ADATE304 200 MHz Dual Integrated DCL with Level Setting DACs, Per Pin PMU, and Per Chip VHH
FEATURES
Full featured evaluation board for the
►
Supply voltages: +21 V and −10 V, on-board voltage regulators
►
Breakout signal inputs and outputs through SMA connectors
►
Differential pairs provided with 50 Ω controlled impedance traces
►
with equal lengths
LED indicators for read and write data
►
PC software for control through USB
►
EVALUATION KIT CONTENTS
EVAL-ADATE304BBCZ
►
EQUIPMENT NEEDED
PC running Windows
►
Type A to type B USB cable (at least USB 2.0)
►
Benchtop power supplies and connector cables
►
Data timing generator (DTG) or equivalent
►
Oscilloscope
►
ONLINE RESOURCES
Bill of Materials
►
Documents Needed
►
ADATE304
data sheet
►
Software Needed
►
ADATE304 Evaluation Software
►
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Arrow.com.
Downloaded from
ADATE304
®
User Guide | EVAL-ADATE304
GENERAL DESCRIPTION
The EVAL-ADATE304BBCZ is a full featured evaluation board
designed to allow the user to simply evaluate all features of
the ADATE304 dual integrated driver, comparator, and active
load (DCL) and four-quadrant per pin parametric measurement
unit (PPMU). The EVAL-ADATE304BBCZ features breakout con-
nections through the SMA terminals for all the signal inputs and
outputs. The differential pairs are provided with 50 Ω controlled
impedance traces with equal lengths.
The EVAL-ADATE304BBCZ only requires two power supplies, +21
V and −10 V. All other voltages required by the device are created
by the on-board regulators. The EVAL-ADATE304BBCZ SPI com-
munications are provided by an on-board USB UART chip. SPI
jumper connectors allow the user to bypass the UART and connect
their own SPI signals for evaluation (see
setup is for control through the USB port. Communication with the
ADATE304 evaluation board software is through the USB, and the
light emitting diode (LED) indicators on the EVAL-ADATE304BBCZ
provide displays for the read and write data.
The ADATE304 data sheet provides full details on all the functional-
ities of the ADATE304 device, as well as the information on each
of the registers within the ADATE304, and must be consulted when
using the EVAL-ADATE304BBCZ.
UG-2130
Table
1). The default
Rev. 0 | 1 of 18
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-ADATE304
Summary of Contents for Analog Devices EVAL-ADATE304
-
Page 1: Features
User Guide | EVAL-ADATE304 UG-2130 Evaluating the ADATE304 200 MHz Dual Integrated DCL with Level Setting DACs, Per Pin PMU, and Per Chip VHH FEATURES GENERAL DESCRIPTION Full featured evaluation board for the ADATE304 The EVAL-ADATE304BBCZ is a full featured evaluation board ►... -
Page 2: Table Of Contents
User Guide EVAL-ADATE304 TABLE OF CONTENTS Features..............1 ADATE304 Evaluation Board Notes....7 Evaluation Kit Contents......... 1 Evaluation Board Software........8 Equipment Needed..........1 Software Operation..........8 Online Resources..........1 DAC Levels............8 General Description..........1 Load File Settings..........8 Evaluation Board Photograph........3 SCLK Frequency, Reset ADATE304, Reset Quick Start Guide.......... -
Page 3: Evaluation Board Photograph

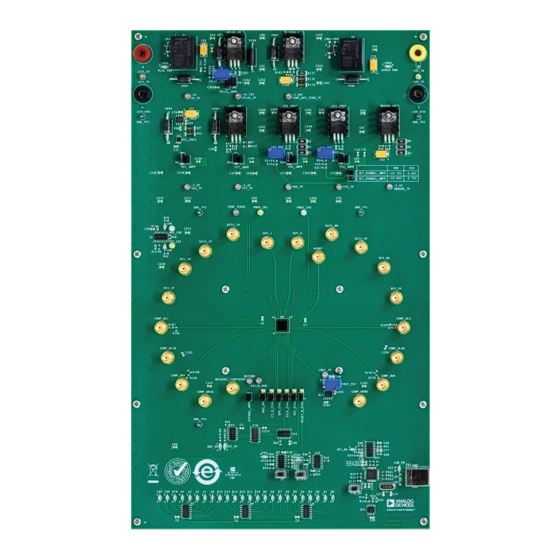

User Guide EVAL-ADATE304 EVALUATION BOARD PHOTOGRAPH Figure 1. EVAL-ADATE304BBCZ analog.com Rev. 0 | 3 of 18 Arrow.com. Downloaded from... -
