One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for Programmable Single-Scan Waveform Generator

FEATURES

Full-featured evaluation board for the
USB cable for PC connection
Can be powered entirely from USB port
Various linking options
PC software for control of
On-board patchwork area

EVALUATION BOARD DESCRIPTION

The
EVAL-AD5932EBZ
is a full-featured evaluation board for
the
AD5932
programmable single-scan waveform generator.
The evaluation board interfaces to the USB port of a PC. It is
possible to power the entire board using the USB port. Software
is available with the EVAL-AD5932EBZ, allowing users to easily
program the AD5932.
The
AD5932
evaluation board includes a 50 MHz oscillator that
provides the MCLK for the AD5932. The user can remove this
oscillator, if required, and drive the
clock oscillator or an external clock source via a SMB connector.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
AD5932
AD5932
AD5932
with a different

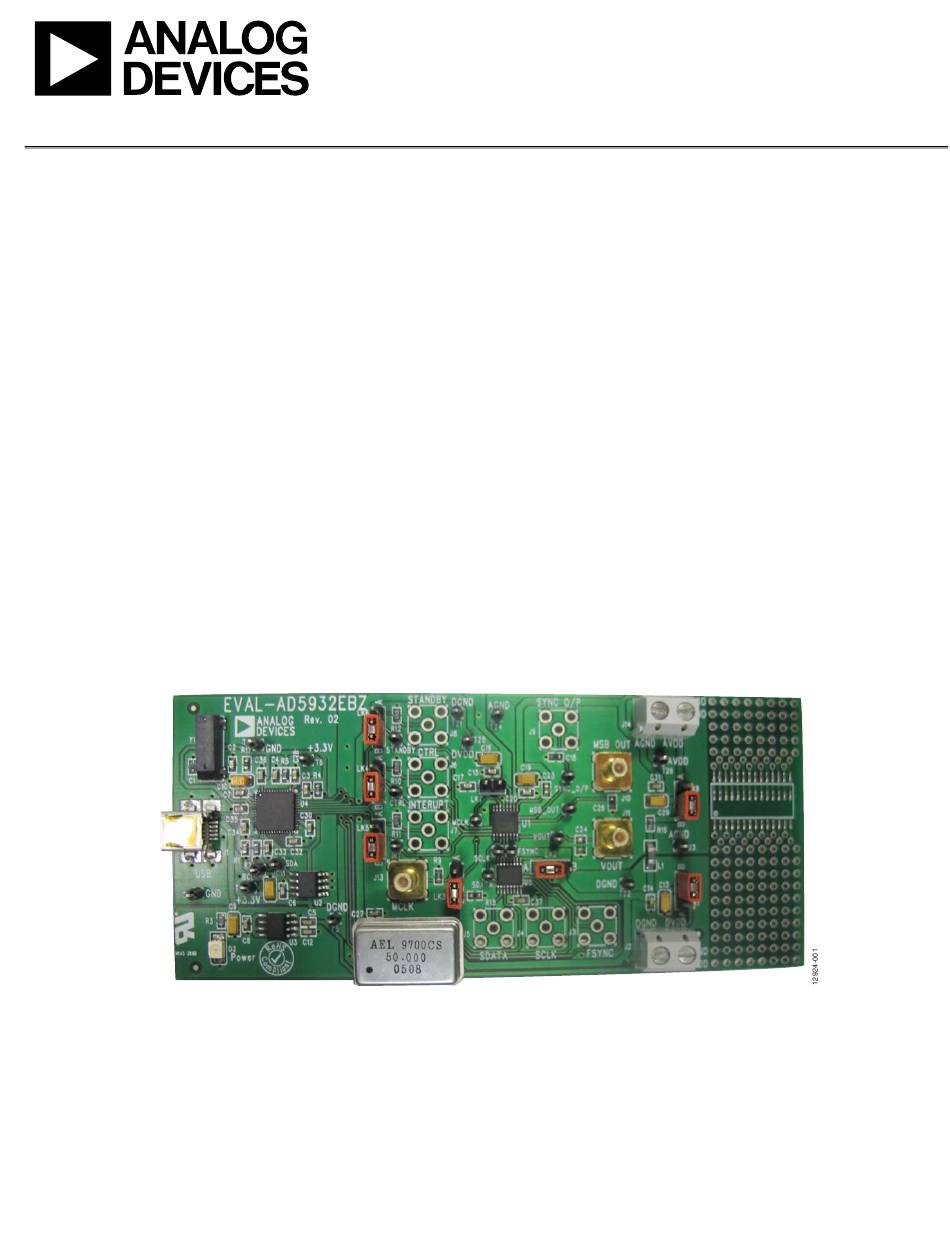

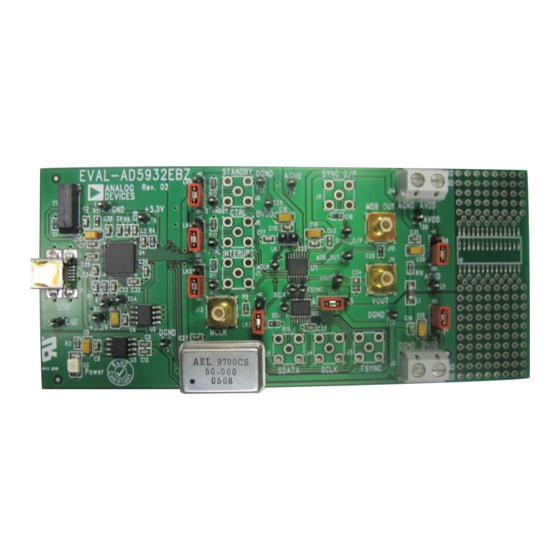

EVALUATION BOARD PHOTOGRAPH

EVAL-AD5932EBZ User Guide
AD5932
DEVICE DESCRIPTION
The
AD5932
is a waveform generator that allows the user to
generate synthesized analog or digital frequency-stepped
waveforms. Because frequency profiles are preprogrammed,
continuous write cycles are eliminated, which frees up valuable
DSP/microcontroller resources. Waveforms start from a known
phase and increment phase continuously, allowing phase shifts
to be easily determined. The device can be operated with clock
frequencies of up to 50 MHz.
Complete specifications for the
AD5932
data sheet, available from Analog Devices, Inc., which
should be consulted in conjunction with this user guide when
using the evaluation board.
Figure 1.
Rev. A | Page 1 of 10
UG-796
AD5932
are available in the

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVAL-AD5932EBZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analog Devices EVAL-AD5932EBZ

Summary of Contents for Analog Devices EVAL-AD5932EBZ

  • Page 1: Features

    USB port. Software using the evaluation board. is available with the EVAL-AD5932EBZ, allowing users to easily program the AD5932. AD5932 evaluation board includes a 50 MHz oscillator that provides the MCLK for the AD5932.

  • Page 2: Table Of Contents

    UG-796 EVAL-AD5932EBZ User Guide TABLE OF CONTENTS Features ....................1 Evaluation Board Software ...............4 Evaluation Board Description............1 Installing the Software ..............4 AD5932 Device Description ............1 Using the Software ................4 Evaluation Board Photograph ............1 Evaluation Board Schematics and Artwork ........6 Revision History ................

  • Page 3: Hardware Description

    EVAL-AD5932EBZ User Guide UG-796 HARDWARE DESCRIPTION POWER SUPPLIES When LK1 is in Position B, DVDD is supplied with 3.3 V from the regulator. When LK8 is in Position B, AVDD is powered AD5932 has two analog power supply inputs: AVDD from DVDD through the L1 ferrite bead (600 Ω...

  • Page 4: Changes To Evaluation Board Software Section, Figure 2, And Figure 3

    UG-796 EVAL-AD5932EBZ User Guide EVALUATION BOARD SOFTWARE AD5932 evaluation kit is available from the Analog Devices USING THE SOFTWARE website at www.analog.com. The AD5932 evaluation software is To launch the software, click Start > All Programs > Analog included in the evaluation kit on a CD, and is also available for Devices >...

  • Page 5: Changes To Figure 4 To Figure 6

    EVAL-AD5932EBZ User Guide UG-796 The increment frequency determines the duration of the DAC Finally, the PROGRAM button (see Figure 6) writes this output signal for each individual frequency of the frequency information to the AD5932 registers. To start the frequency scan.

  • Page 6: Evaluation Board Schematics And Artwork

    UG-796 EVAL-AD5932EBZ User Guide EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 7. EVAL-AD5932EBZ Schematic, Page 1 of 2 Rev. A | Page 6 of 10...
  • Page 7 EVAL-AD5932EBZ User Guide UG-796 Figure 8. EVAL-AD5932EBZ Schematic, Page 2 of 2 Rev. A | Page 7 of 10...
  • Page 8 UG-796 EVAL-AD5932EBZ User Guide Figure 9. EVAL-AD5932EBZ Silkscreen Artwork Figure 10. EVAL-AD5932EBZ Component Side Artwork Figure 11. EVAL-AD5932EBZ Solder Side Artwork Rev. A | Page 8 of 10...

  • Page 9: Ordering Information

    EVAL-AD5932EBZ User Guide UG-796 ORDERING INFORMATION BILL OF MATERIALS Table 2. Item Reference Description Supplier/Part No. C1, C2, C6 22 pF, 0603 ceramic capacitor FEC 722-005 2.2 µF, 0805 ceramic capacitor Digikey 445-1588-1-ND C18, C26 0603 capacitor Not Inserted 0805 capacitor Not Inserted 0.01 µF, 0603, ceramic capacitor...
  • Page 10 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
