One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the

FEATURES

Full featured evaluation board for the
On-board power supplies
Standalone capability
SDP-H1 compatible
(EVAL-SDP-CH1Z
PC software for control and data analysis (download from the
AD7606B
product page)
Time and frequency domain

EVALUATION KIT CONTENTS

EVAL-AD7606BFMCZ evaluation board

ADDITIONAL EQUIPMENT NEEDED

System demonstration platform (SDP)—high speed controller
board
(EVAL-SDP-CH1Z
(SDP-H1))
PC running Windows Vista SP2 (32-bit or 64-bit), Windows 7
SP1 (32-bit or 64-bit), Windows 8.1 (32-bit or 64-bit), or
Windows 10 (32-bit or 64-bit) with a USB 2.0 port
DC/ac signal source
SMB and USB cables
External supply (optional)

DOCUMENTS NEEDED

AD7606B
data sheet
EVAL-AD7606BFMCZ user guide
Schematics
Layout files
Bill of materials

ONLINE RESOURCES

ACE
evaluation software
AD7606B ACE
plug-in
AD7606B
8-Channel DAS with 16-Bit, 800 kSPS Bipolar Input,
Simultaneous Sampling ADC
AD7606B
(SDP-H1))

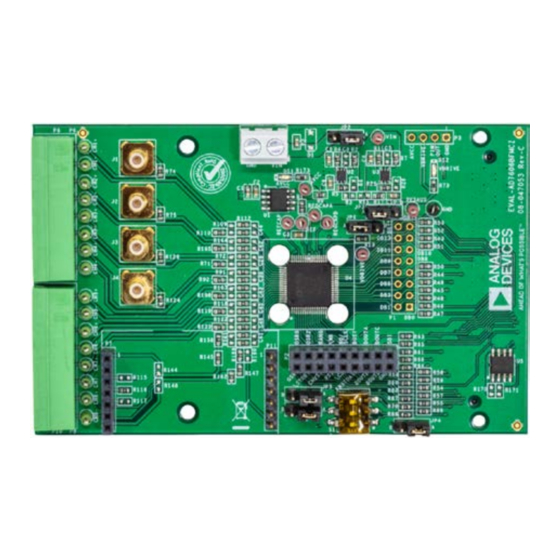

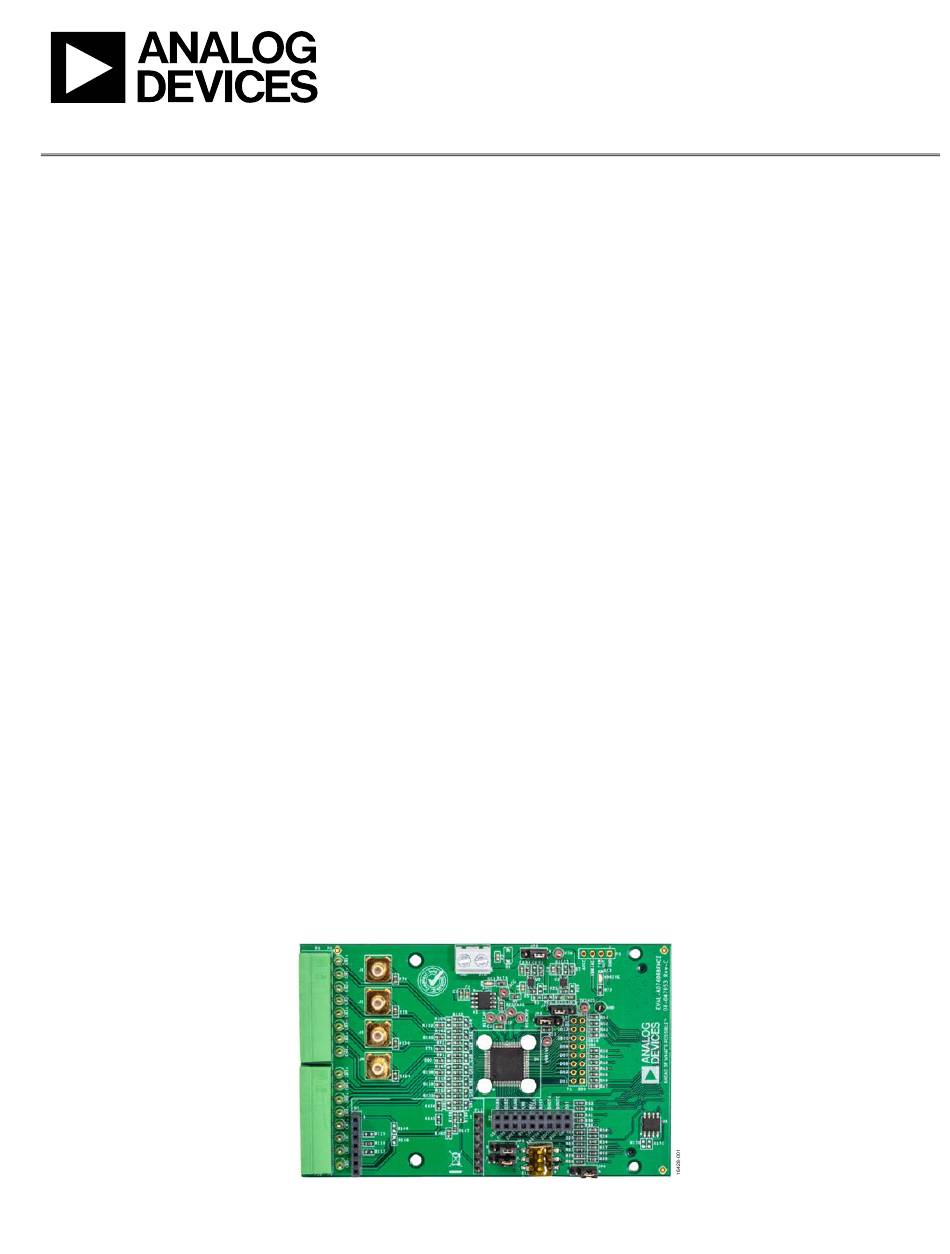

EVALUATION BOARD PHOTOGRAPH

EVAL-AD7606BFMCZ

EVALUATION BOARD DESCRIPTION

The EVAL-AD7606BFMCZ is a full featured evaluation board
that allows users to easily evaluate the features of the
analog-to-digital converter (ADC). The EVAL-AD7606BFMCZ
can be controlled by the system demonstration platform controller
board
(EVAL-SDP-CH1Z
(SDP-H1) allows the EVAL-AD7606BFMCZ to be controlled
through the USB port of a PC using the
software. The software is available for download from the
AD7606B
product page.
On-board components include an
dropout regulator (LDO) and an
band gap voltage reference.
Full data on the
which must be consulted in conjunction with this user guide. Full
details on the
EVAL-SDP-CH1Z
product page.
Figure 1.
Rev. A | Page 1 of 15
User Guide
(SDP-H1)). The
EVAL-SDP-CH1Z
AD7606B
ADP7118
ADR4525
AD7606B
is available in the
AD7606B
are available on the
UG-1225
AD7606B
evaluation
5 V, low noise low
high precision,
data sheet,
SDP-H1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVAL-AD7606BFMCZ and is the answer not in the manual?

Questions and answers

Related Manuals for Analog Devices EVAL-AD7606BFMCZ

Summary of Contents for Analog Devices EVAL-AD7606BFMCZ

  • Page 1: Features

    8-Channel DAS with 16-Bit, 800 kSPS Bipolar Input, Simultaneous Sampling ADC FEATURES EVALUATION BOARD DESCRIPTION The EVAL-AD7606BFMCZ is a full featured evaluation board Full featured evaluation board for the AD7606B that allows users to easily evaluate the features of the...

  • Page 2: Table Of Contents

    UG-1225 EVAL-AD7606BFMCZ User Guide TABLE OF CONTENTS Features ....................1 Power Supplies ................4 Evaluation Kit Contents ..............1 Channel Input ................4 Additional Equipment Needed ............1 Evaluation Board Software ...............6 Documents Needed ................1 Software Installation ..............6 Online Resources ................1 AD7606B Evaluation Software Operation .........8...

  • Page 3: Quick Start Guide

    User Guide UG-1225 QUICK START GUIDE To quickly evaluate the AD7606B ADC, take the following By default, the power for the EVAL-AD7606BFMCZ is steps: supplied by the EVAL-SDP-CH1Z (SDP-H1) controller board. A number of power options are available, see the...

  • Page 4: Evaluation Board Hardware

    The EVAL-AD7606BFMCZ evaluation software controls the STBY pin. When using the EVAL-AD7606BFMCZ board in standalone mode without running the EVAL-AD7606BFMCZ evaluation software, this jumper allows selection of standby mode. In this case, change the R8 and R10 resistors to 0 Ω links.
  • Page 5 In Position B, the PAR/SER SEL pin is tied to AGND, and the parallel interface is selected. The EVAL-AD7606BFMCZ evaluation software controls the REF SELECT pin. By default, the internal reference is selected. If switching to the external reference is required through the EVAL-AD7606BFMCZ evaluation software, R1 must be populated.

  • Page 6: Changes To Software Installation Section, Figure 2, Figure 3, And Figure 4

    SOFTWARE INSTALLATION Read the license and click I Agree. Download the evaluation software from the AD7606B product page. Both the EVAL-AD7606BFMCZ software and the EVAL-SDP-CH1Z (SDP-H1) board drivers must be installed. Warning evaluation software and drivers must be installed before...

  • Page 7: Changes To Figure 5, Figure 6, Figure 7, And Figure 8

    Always disconnect power from the EVAL-SDP-CH1Z or press the reset tact switch located alongside the mini USB port before removing the EVAL-AD7606BFMCZ evaluation board. Figure 7. Installation in Progress 10. When the installation is complete, click Next >, and then click Finish to complete.

  • Page 8: Ad7606B Evaluation Software Operation

    Devices > ACE> ACE.exe, which brings up the window shown in Figure 10. The available programmable blocks in chip view are as follows: If the EVAL-AD7606BFMCZ evaluation board is not  Analog input range on a per channel basis through the...

  • Page 9: Changes To Figure 11 And Figure 12

    EVAL-AD7606BFMCZ User Guide UG-1225 Figure 11. Board View Figure 12. Chip View Rev. A | Page 9 of 15...

  • Page 10: Description Of Memory Map Window

    UG-1225 EVAL-AD7606BFMCZ User Guide Figure 13. Pop-Up Configurable Window Figure 14. Memory Map View Apply Changes DESCRIPTION OF MEMORY MAP WINDOW The registers are in default values when powered up. To Click Proceed to Memory Map in the chip view to open the implement the values changed in all of the registers, click window shown in Figure 14.
  • Page 11 EVAL-AD7606BFMCZ User Guide UG-1225 Apply Selected Reset Chip In some cases, the values of all registers are changed, but the Clicking Reset Chip causes the software to reset the AD7606B. user wants to implement changes on a selected register only.

  • Page 12: Description Of Analysis Window

    UG-1225 EVAL-AD7606BFMCZ User Guide Figure 15. Analysis View DESCRIPTION OF ANALYSIS WINDOW AD7606B data sheet to determine the maximum oversampling ratio for the selected oversampling mode. Click Proceed to Analysis in the chip view to open the window, The Input Range, when hardware mode is enabled, allows as shown in Figure 15.

  • Page 13: Histogram Tab

    EVAL-AD7606BFMCZ User Guide UG-1225 Export Capture Data When selecting either y-scale dynamic or x-scale dynamic, the corresponding axis width automatically adjusts to show the Click Export to export captured data. The waveform, entire range of the ADC results after each batch of samples.

  • Page 14: Fft Tab

    UG-1225 EVAL-AD7606BFMCZ User Guide Figure 17. Histogram Tab Figure 18. FFT Tab FFT TAB Windowing Figure 18 shows the FFT tab, which displays fast Fourier transform The Windowing pane allows the user to select the windowing (FFT) information for the last batch of samples gathered.

  • Page 15: Exiting The Software

    By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
