Chapter 2

Thermal/Cooling Requirements

The CPU is the primary source of heat on the board. The CoreModule 720 is designed to operate at the
maximum speed of the CPU and requires a heatsink (provided). See
the board and heatsink assembly.
0.44
0.39
NOTE
All heights are given in inches.
CoreModule 720
Heatsink

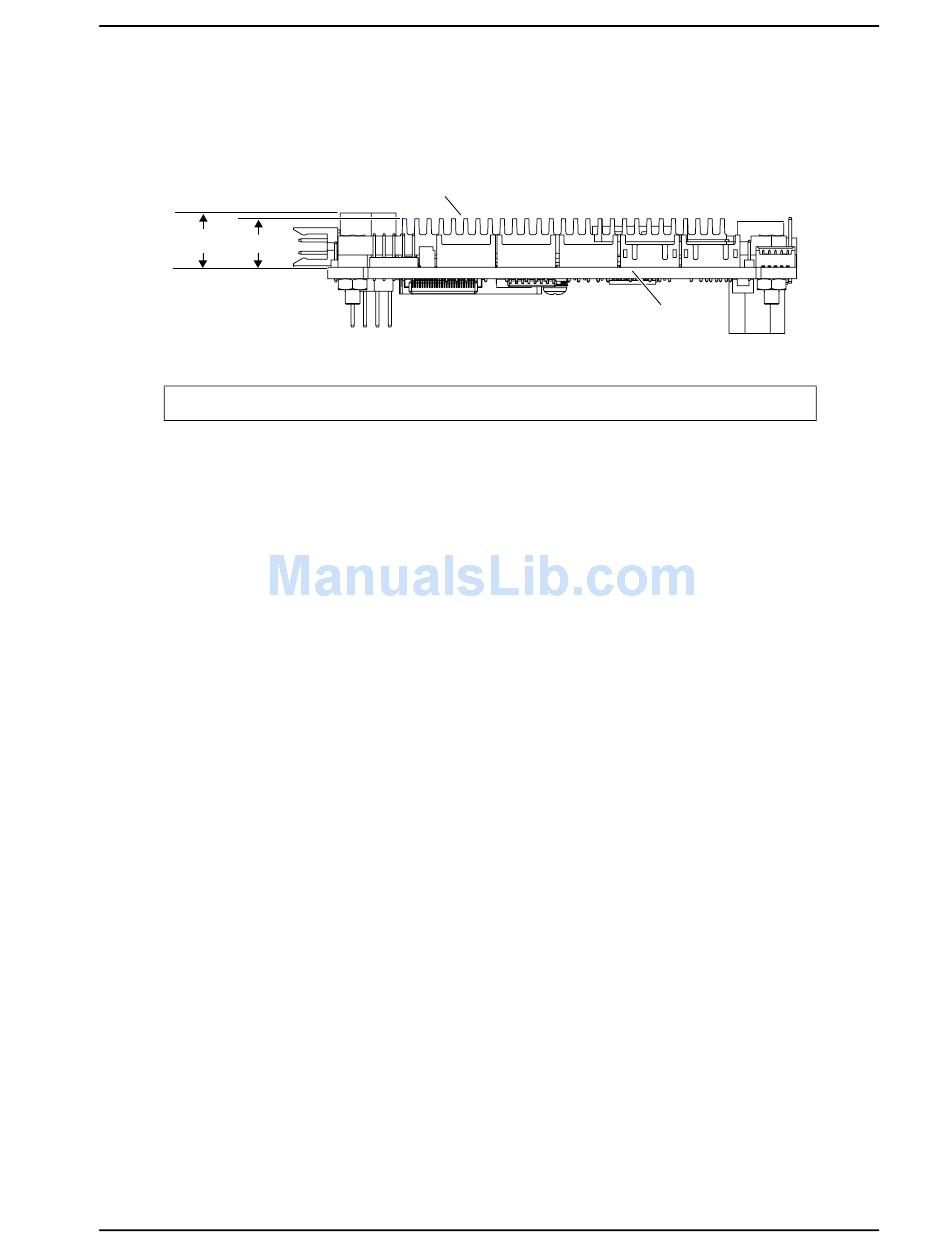

Figure 2-9. Stack Height of Cooling Assembly

Reference Manual
Product Overview
Figure 2-9
for height measurements of
CoreModule 720
17
