Chapter 2
Key:
U1 - CPU
U2 - DDR2 SDRAM - 1
U3 - DDR2 SDRAM - 1
U4 - DDR2 SDRAM - 1
U5 - DDR2 SDRAM - 1
U10 - PCH
U15 - Gigabit Ethernet Controller
U16 - Ethernet EEPROM
U18 - PCIe to PCI Bridge
U21 - RS-232 Transceiver - COM0
U22 - RS-232 Transceiver - COM1-3
U31 - SPI Flash - BIOS
U33 - Temperature Monitor
U35 - Thermal Regulator - SSD
T1 - Gigabit Ethernet Transformer
Key:
U6 - DDR2 SDRAM - 2
U7 - DDR2 SDRAM - 2
U8 - DDR2 SDRAM - 2
U9 - DDR2 SDRAM - 2
U12 - CAN Transceiver
U17 - LPC-to-ISA Bridge
U20 - SPI EEPROM - PCIe to PCI
U32 - Thermal Regulator - PCIe to PCI
U37 - Solid State Drive (SSD) - SATA
J5
- SD (Security Digital) Memory Card
Socket (See Header, Connector, and Socket table)
10
U33
U1
U10

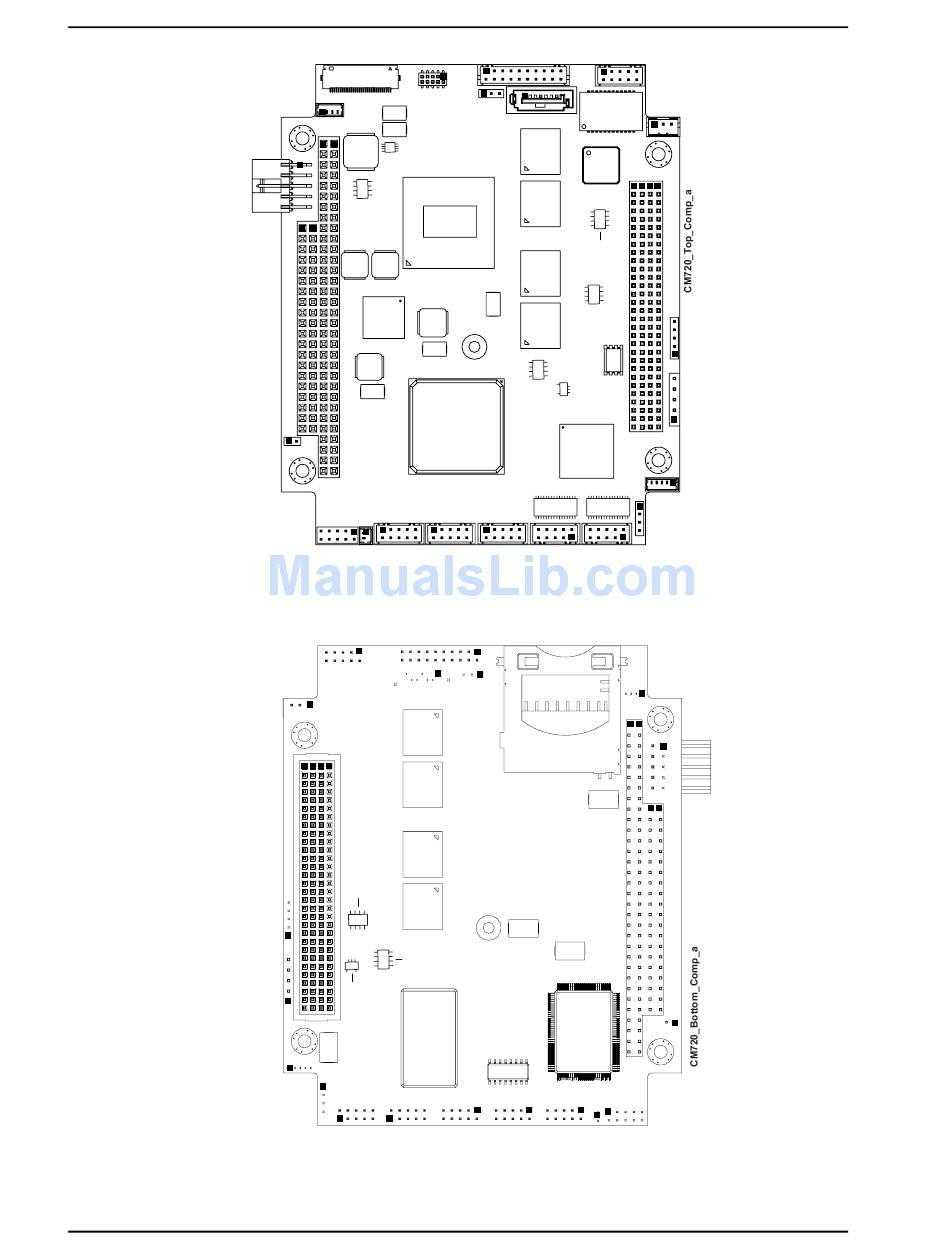

Figure 2-3. Component Locations (Top Side)

U9
U8
U7
U12
U6
U20
U32
U37

Figure 2-4. Component Locations (Bottom Side)

Reference Manual
T1
U5
U15
U4
U16
U3
U2
U31
U35
U18
U22
U21
J5
U17
Product Overview
CoreModule 720
