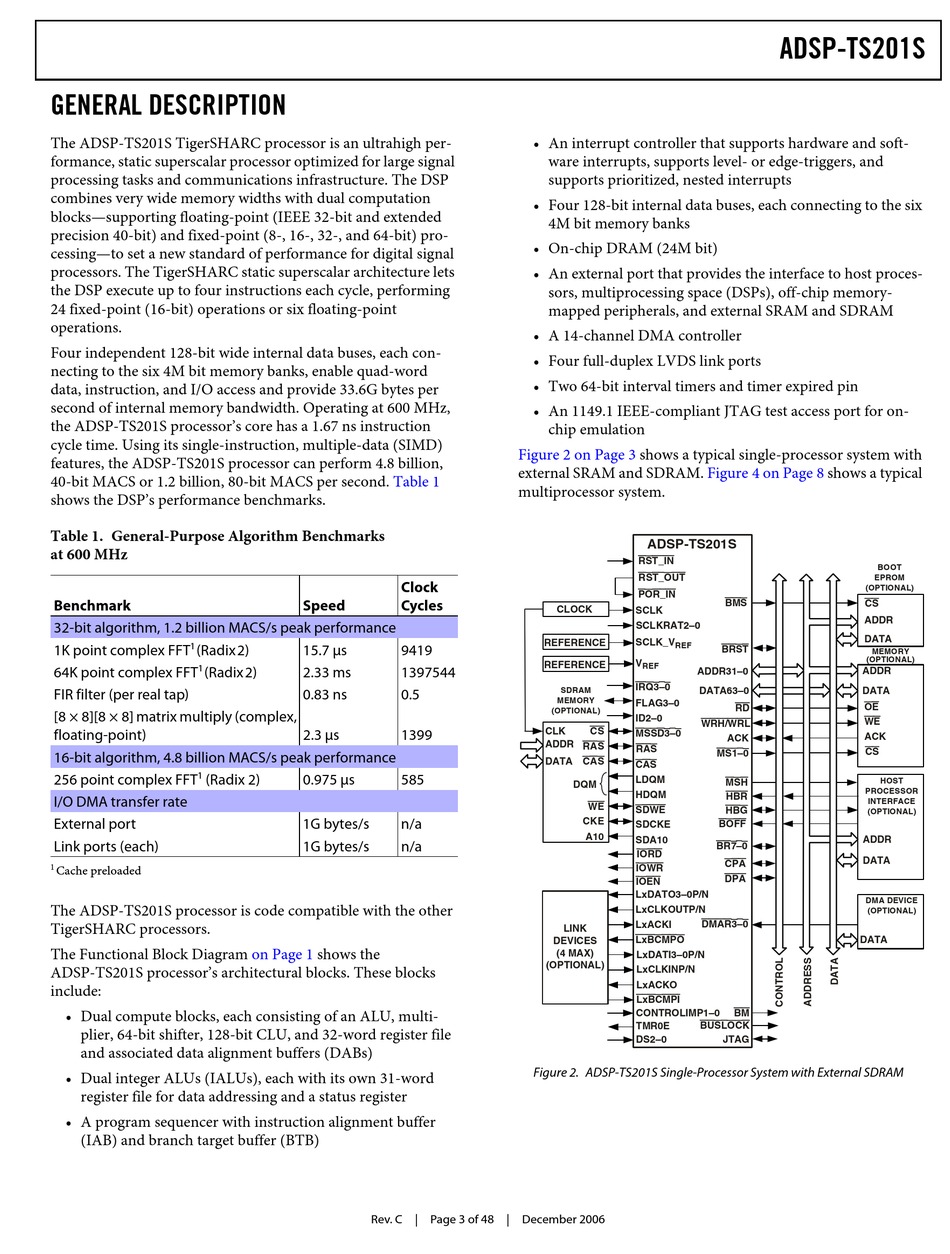

GENERAL DESCRIPTION

The ADSP-TS201S TigerSHARC processor is an ultrahigh per-
formance, static superscalar processor optimized for large signal
processing tasks and communications infrastructure. The DSP
combines very wide memory widths with dual computation
blocks—supporting floating-point (IEEE 32-bit and extended
precision 40-bit) and fixed-point (8-, 16-, 32-, and 64-bit) pro-
cessing—to set a new standard of performance for digital signal
processors. The TigerSHARC static superscalar architecture lets
the DSP execute up to four instructions each cycle, performing
24 fixed-point (16-bit) operations or six floating-point
operations.
Four independent 128-bit wide internal data buses, each con-
necting to the six 4M bit memory banks, enable quad-word
data, instruction, and I/O access and provide 33.6G bytes per
second of internal memory bandwidth. Operating at 600 MHz,
the ADSP-TS201S processor's core has a 1.67 ns instruction
cycle time. Using its single-instruction, multiple-data (SIMD)
features, the ADSP-TS201S processor can perform 4.8 billion,
40-bit MACS or 1.2 billion, 80-bit MACS per second.
shows the DSP's performance benchmarks.
Table 1. General-Purpose Algorithm Benchmarks
at 600 MHz
Benchmark
32-bit algorithm, 1.2 billion MACS/s peak performance
1
1K point complex FFT (Radix2)
1
64K point complex FFT (Radix2)
FIR filter (per real tap)
[8 × 8][8 × 8] matrix multiply (complex,
floating-point)
16-bit algorithm, 4.8 billion MACS/s peak performance
1
256 point complex FFT (Radix 2)
I/O DMA transfer rate
External port
Link ports (each)
1
Cache preloaded
The ADSP-TS201S processor is code compatible with the other
TigerSHARC processors.
The Functional Block Diagram
ADSP-TS201S processor's architectural blocks. These blocks
include:
• Dual compute blocks, each consisting of an ALU, multi-
plier, 64-bit shifter, 128-bit CLU, and 32-word register file
and associated data alignment buffers (DABs)
• Dual integer ALUs (IALUs), each with its own 31-word
register file for data addressing and a status register
• A program sequencer with instruction alignment buffer
(IAB) and branch target buffer (BTB)
Table 1
Clock
Speed Cycles
15.7 μs 9419
2.33 ms 1397544
0.83 ns 0.5
2.3 μs 1399
0.975 μs 585
1G bytes/s n/a
1G bytes/s n/a
on Page 1 shows the
Rev. C | Page 3 of 48 | December 2006
• An interrupt controller that supports hardware and soft-
ware interrupts, supports level- or edge-triggers, and
supports prioritized, nested interrupts
• Four 128-bit internal data buses, each connecting to the six
4M bit memory banks
• On-chip DRAM (24M bit)
• An external port that provides the interface to host proces-
sors, multiprocessing space (DSPs), off-chip memory-
mapped peripherals, and external SRAM and SDRAM
• A 14-channel DMA controller
• Four full-duplex LVDS link ports
• Two 64-bit interval timers and timer expired pin
• An 1149.1 IEEE-compliant JTAG test access port for on-
chip emulation
Figure 2 on Page 3 shows a typical single-processor system with
external SRAM and SDRAM.
multiprocessor system.
ADSP-TS201S
RST_IN
RST_OUT
POR_IN
CLOCK
SCLK
SCLKRAT2–0
SCLK_V
REFERENCE
REF
V
REFERENCE
REF
IRQ3–0
SDRAM
MEMORY
FLAG3–0
(OPTIONAL)
ID2–0
CS
CLK MSSD3–0
ADDR
RAS
RAS
CAS
DATA
CAS
LDQM
DQM
HDQM
WE
SDWE
CKE
SDCKE
A10
SDA10
IORD
IOWR
IOEN
LxDATO3–0P/N
LxCLKOUTP/N
LxACKI
LINK
LxBCMPO
DEVICES
(4 MAX)
LxDATI3–0P/N
(OPTIONAL)
LxCLKINP/N
LxACKO
LxBCMPI
CONTROLIMP1–0
TMR0E
DS2–0
Figure 2. ADSP-TS201S Single-Processor System with External SDRAM
ADSP-TS201S
Figure 4 on Page 8 shows a typical
EPROM
(OPTIONAL)
BMS
CS
ADDR
DATA
BRST
MEMORY
(OPTIONAL)
ADDR
ADDR31–0
DATA63–0 DATA
OE
RD
WE
WRH/WRL
ACK
ACK
CS
MS1–0
MSH
PROCESSOR
HBR
INTERFACE
HBG
(OPTIONAL)
BOFF
ADDR
BR7–0
DATA
CPA
DPA
DMA DEVICE
(OPTIONAL)
DMAR3–0
DATA
BM
BUSLOCK
JTAG
BOOT
HOST
