a

FEATURES

Six 16-Bit A/D Converters
Programmable Input Sample Rate
Simultaneous Sampling
76 dB SNR
64 kS/s Maximum Sample Rate
–95 dB Crosstalk
Low Group Delay (25 s Typ per ADC Channel)
Programmable Input Gain
Flexible Serial Port Which Allows Multiple Devices to
Be Connected in Cascade
Single (2.7 V to 3.6 V) Supply Operation
80 mW Max Power Consumption at 2.7 V
On-Chip Reference
28-Lead SOIC Package
APPLICATIONS
General-Purpose Analog Input
Industrial Power Metering
Motor Control
Simultaneous Sampling Applications

GENERAL DESCRIPTION

The AD73360L is a six-input channel analog front-end proces-
sor for general-purpose applications, including industrial power
VINP1
VINN1
VINP2
VINN2
VINP3
VINN3
REFCAP
REFOUT
VINP4
VINN4
VINP5
VINN5
VINP6
VINN6
REV. 0
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties
which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Analog Devices.

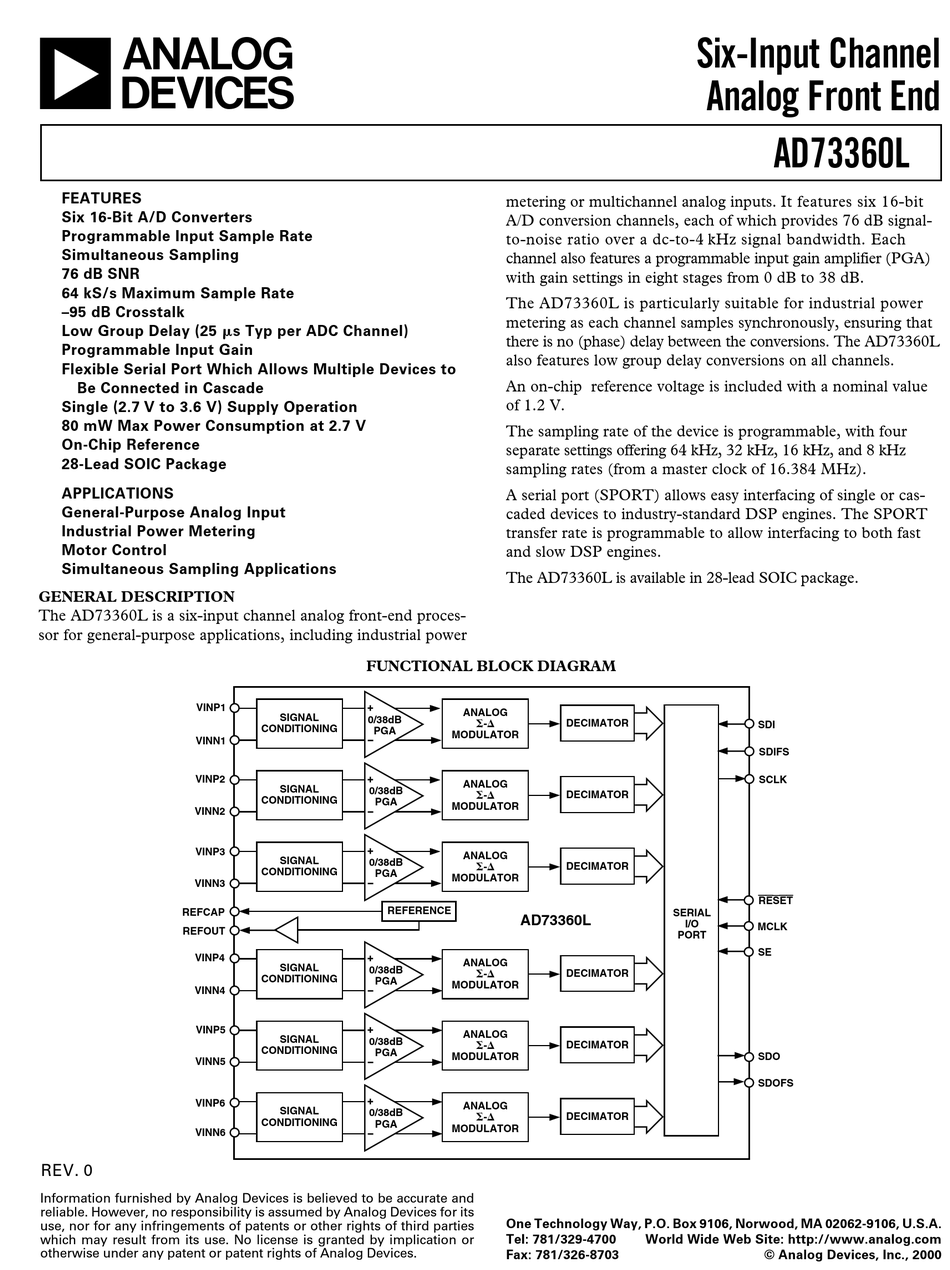

FUNCTIONAL BLOCK DIAGRAM

SIGNAL
0/38dB
CONDITIONING
PGA
SIGNAL
0/38dB
CONDITIONING
PGA
SIGNAL
0/38dB
CONDITIONING
PGA
REFERENCE
SIGNAL
0/38dB
CONDITIONING
PGA
SIGNAL
0/38dB
CONDITIONING
PGA
SIGNAL
0/38dB
CONDITIONING
PGA
metering or multichannel analog inputs. It features six 16-bit
A/D conversion channels, each of which provides 76 dB signal-
to-noise ratio over a dc-to-4 kHz signal bandwidth. Each
channel also features a programmable input gain amplifier (PGA)
with gain settings in eight stages from 0 dB to 38 dB.
The AD73360L is particularly suitable for industrial power
metering as each channel samples synchronously, ensuring that
there is no (phase) delay between the conversions. The AD73360L
also features low group delay conversions on all channels.
An on-chip reference voltage is included with a nominal value
of 1.2 V.
The sampling rate of the device is programmable, with four
separate settings offering 64 kHz, 32 kHz, 16 kHz, and 8 kHz
sampling rates (from a master clock of 16.384 MHz).
A serial port (SPORT) allows easy interfacing of single or cas-
caded devices to industry-standard DSP engines. The SPORT
transfer rate is programmable to allow interfacing to both fast
and slow DSP engines.
The AD73360L is available in 28-lead SOIC package.
ANALOG
DECIMATOR
-
MODULATOR
ANALOG
-
DECIMATOR
MODULATOR
ANALOG
-
DECIMATOR
MODULATOR
AD73360L
ANALOG
-
DECIMATOR
MODULATOR
ANALOG
DECIMATOR
-
MODULATOR
ANALOG
-
DECIMATOR
MODULATOR
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781/329-4700
Fax: 781/326-8703
Six-Input Channel
Analog Front End
AD73360L
SDI
SDIFS
SCLK
RESET
SERIAL
I/O
MCLK
PORT
SE
SDO
SDOFS
World Wide Web Site: http://www.analog.com
© Analog Devices, Inc., 2000
