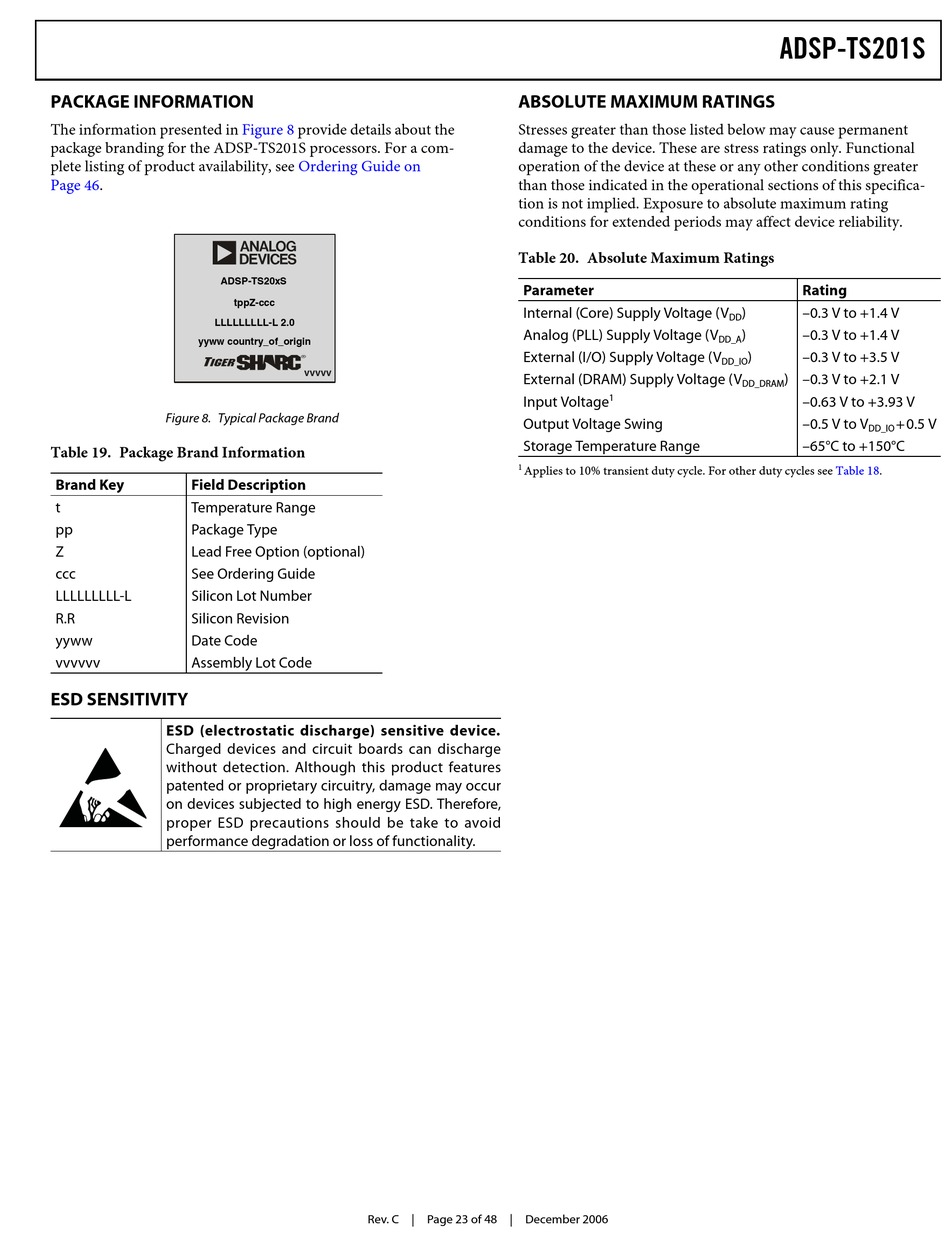

PACKAGE INFORMATION

The information presented in
package branding for the ADSP-TS201S processors. For a com-
plete listing of product availability, see
Page
46.
a
ADSP-TS20xS
LLLLLLLLL-L 2.0
yyww country_of_origin
T
Figure 8. Typical Package Brand
Table 19. Package Brand Information
Brand Key
Field Description
t
Temperature Range
pp
Package Type
Z
Lead Free Option (optional)
ccc
See Ordering Guide
LLLLLLLLL-L
Silicon Lot Number
R.R
Silicon Revision
yyww
Date Code
vvvvvv
Assembly Lot Code

ESD SENSITIVITY

ESD (electrostatic discharge) sensitive device.
Charged devices and circuit boards can discharge
without detection. Although this product features
patented or proprietary circuitry, damage may occur
on devices subjected to high energy ESD. Therefore,
proper ESD precautions should be take to avoid
performance degradation or loss of functionality.
Figure 8
provide details about the
Ordering Guide on
tppZ-ccc
vvvvv
Rev. C | Page 23 of 48 | December 2006

ABSOLUTE MAXIMUM RATINGS

Stresses greater than those listed below may cause permanent
damage to the device. These are stress ratings only. Functional
operation of the device at these or any other conditions greater
than those indicated in the operational sections of this specifica-
tion is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect device reliability.
Table 20. Absolute Maximum Ratings
Parameter
Internal (Core) Supply Voltage (V
Analog (PLL) Supply Voltage (V
External (I/O) Supply Voltage (V
External (DRAM) Supply Voltage (V
1
Input Voltage
Output Voltage Swing
Storage Temperature Range
1
Applies to 10% transient duty cycle. For other duty cycles see
ADSP-TS201S
Rating
)
–0.3 V to +1.4 V
DD
)
–0.3 V to +1.4 V
DD_A
)
–0.3 V to +3.5 V
DD_IO
) –0.3 V to +2.1 V
DD_DRAM
–0.63 V to +3.93 V
–0.5 V to V
+0.5 V
DD_IO
–65°C to +150°C
Table
18.
