Evaluating the ADA4351-2 Compact, Dual-Channel, Precision, Programmable Gain Transimpedance Amplifier (PGTIA)
FEATURES
Full featured evaluation board for the ADA4351-2, a dual-chan-
►
nel, PGTIA in a 3 mm × 3 mm, 16-lead LFCSP with no exposed
pad
Enables quick prototyping
►
Provisions for user-defined circuit configuration, including provi-
►
sions for photodiodes
Available edge-mounted SMA connectors and test points for
►
simple connection with test equipment
EVALUATION BOARD KIT CONTENTS
1 populated EVAL-ADA4351-2EBZ evaluation board
►
5 shunt connectors (2 usable and 3 extra)
►
DOCUMENTS NEEDED
ADA4351-2 data sheet
►
EQUIPMENT NEEDED
Hardware
►
Digital multimeter (Agilent 34401A)
►
Power supplies (Agilent E3631)
►
Source meter (Keithley 2400) for current source input
►
High precision voltage source (Datel DVC-8500) for voltage
►
source input
Cables and components
►
SMA (male) to BNC connector (male) cables
►
BNC connector (female) to dual banana plug adapter
►
Banana to grabber cables
►
SMA 50 Ω termination
►
GENERAL DESCRIPTION
The EVAL-ADA4351-2EBZ evaluation board is designed to help
users evaluate the ADA4351-2, a two-channel programmable gain
transimpedance amplifier (PGTIA) that features an integrated gain
switching network with two user-defined gain states that can be set
via external resistors, offered in a 3 mm × 3mm × 0.78 mm, 16-lead
lead frame chip scale package (LFCSP).
The EVAL-ADA4351-2EBZ is a 4-layer printed circuit board (PCB)
with dimensions at 2.9 inches x 2.25 inches.
2
shows the top and bottom view of the EVAL-ADA4351-2EBZ,
respectively. The EVAL-ADA4351-2EBZ comes populated with
the key components that allow users to run and to evaluate
the board quickly and with relative ease. That aside, the EVAL-
ADA4351-2EBZ also provides open resistor and capacitor slots on
its input and output stages, allowing the user to install components
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Figure 1
and
Figure
User Guide | EVAL-ADA4351-2
EVALUATION BOARD PHOTOGRAPHS

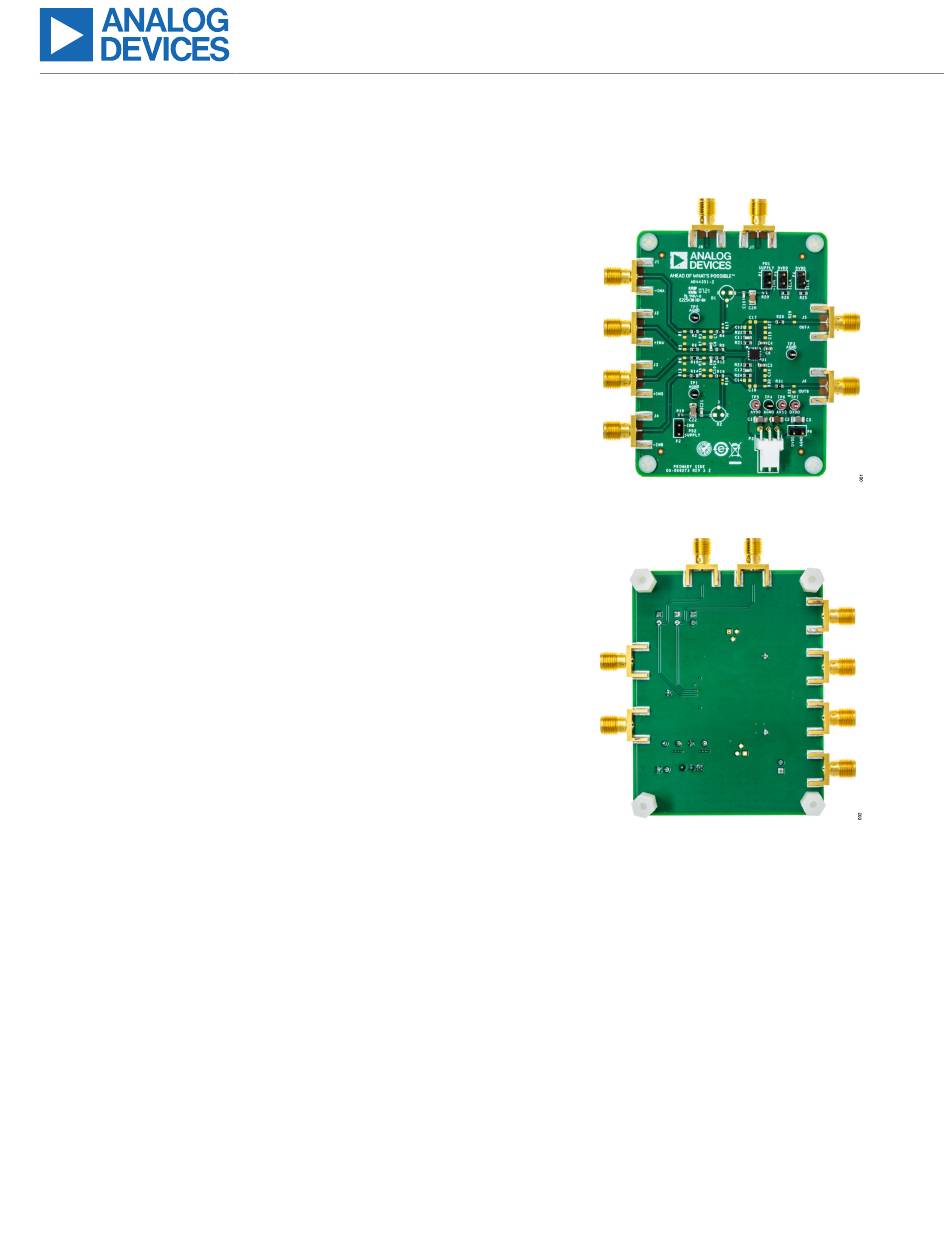

Figure 1. EVAL-ADA4351-2EBZ Photograph (Top View)
Figure 2. EVAL-ADA4351-2EBZ Photograph (Bottom View)
with user-defined values for connections such as a low-pass filter
(LPF) or voltage divider.
The EVAL-ADA4351-2EBZ is accessible through Subminiature
Version A (SMA) female socket edge mounts that allow users
to directly connect test equipment to the inputs and outputs of
both channels, as well as the gain switch control pins. The EVAL-
ADA4351-2EBZ also comes with an unpopulated photodiode slot
on each channel, allowing for quick prototyping.
For full details on the ADA4351-2, see the ADA4351-2 data sheet,
which should be consulted in conjunction with this user guide when
using the EVAL-ADA4351-2EBZ.
UG-2159
Rev. 0 | 1 of 9
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-ADA4351-2
Summary of Contents for Analog Devices EVAL-ADA4351-2
-
Page 1: Features
User Guide | EVAL-ADA4351-2 UG-2159 Evaluating the ADA4351-2 Compact, Dual-Channel, Precision, Programmable Gain Transimpedance Amplifier (PGTIA) FEATURES EVALUATION BOARD PHOTOGRAPHS Full featured evaluation board for the ADA4351-2, a dual-chan- ► nel, PGTIA in a 3 mm × 3 mm, 16-lead LFCSP with no exposed Enables quick prototyping ►... -
Page 2: Table Of Contents
User Guide EVAL-ADA4351-2 TABLE OF CONTENTS Features..............1 Gain Switch Control..........4 Evaluation Board Kit Contents.......1 Gain Setting............4 Documents Needed..........1 Getting Started............5 Equipment Needed..........1 Using Voltage Source as Input......7 Evaluation Board Photographs......1 Evaluation Board Schematic......... 8 General Description..........1 Ordering Information..........9 Evaluation Board Hardware........3... -
Page 3: Evaluation Board Hardware
User Guide EVAL-ADA4351-2 EVALUATION BOARD HARDWARE The EVAL-ADA4351-2EBZ provides users with features that make POWER SUPPLIES for easier evaluation and operation. Figure 3 shows the key com- ADA4351-2 uses two supplies: an analog supply that powers ponents of the EVAL-ADA4351-2EBZ and... -
Page 4: Gain Switch Control
User Guide EVAL-ADA4351-2 EVALUATION BOARD HARDWARE switch control pins. The SMA jack for Channel A is J8 (SELA), and GAIN SWITCH CONTROL the SMA jack for Channel B is J7 (SELB)(see Figure The ADA4351-2 has two channels, A and B. Each channel is... -
Page 5: Getting Started
User Guide EVAL-ADA4351-2 GETTING STARTED Take the following steps to simply get the EVAL-ADA4351-2EBZ up Refer to the Gain Switch Control section for details and other ► and running using a current source as input, as well as to perform ways to set the gain states. - Page 6 User Guide EVAL-ADA4351-2 GETTING STARTED Figure 5. EVAL-ADA4351-2EBZ Full Setup for Current Source Input analog.com Rev. 0 | 6 of 9...
-
Page 7: Using Voltage Source As Input
User Guide EVAL-ADA4351-2 GETTING STARTED USING VOLTAGE SOURCE AS INPUT Table 6. Configuring the ADA4351-2 for Single-Supply Operation (Continued) Parameter Status Description Because the ADA4351-2 is a PGTIA, the EVAL-ADA4351-2EBZ is AVSS 0 V. Single-supply operation. configured by default to follow a TIA circuit, expecting a current DVDD 5 V. -
Page 8: Evaluation Board Schematic
User Guide EVAL-ADA4351-2 EVALUATION BOARD SCHEMATIC Figure 8. EVAL-ADA4351-2EBZ Evaluation Board Schematic analog.com Rev. 0 | 8 of 9... -
Page 9: Ordering Information
Evaluation Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc. (“ADI”), with its principal place of business at Subject to the terms and conditions of the Agreement, ADI hereby grants to Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY.
