External Port; Interface) - Analog Devices TigerSHARC ADSP-TS201S Specifications

ADSP-TS201S
INTERNAL SPACE
RESERVED
SOC REGISTERS (UREGS)
RESERVED
INTERNAL REG ISTERS (UREG S)
RESERVED
INTERNAL MEMO RY BLOCK 10
RESERVED
INTERNAL MEMO RY BLOCK 8
RESERVED
INTERNAL MEMORY BLOCK 6
RESERVED
INTERNAL MEMORY BLOCK 4
RESERVED
INTERNAL MEMORY BLOCK 2
RESERVED
INTERNAL MEMORY BLOCK 0
33.6G bytes per second, enabling the core and I/O to access
eight 32-bit data-words and four 32-bit instructions each cycle.
The DSP's flexible memory structure enables:
• DSP core and I/O accesses to different memory blocks in
the same cycle
• DSP core access to three memory blocks in parallel—one
instruction and two data accesses
• Programmable partitioning of program and data memory
• Program access of all memory as 32-, 64-, or 128-bit
words—16-bit words with the DAB

EXTERNAL PORT

(OFF-CHIP MEMORY/PERIPHERALS INTERFACE)
The ADSP-TS201S processor's external port provides the DSP's
interface to off-chip memory and peripherals. The 4G word
address space is included in the DSP's unified address space.
0x03FFFFFF
0x001F03FF
0x001F0000
0x001E03FF
0x001E0000
0x0015FFFF
0x00140000
0x0011FFFF
0x00100000
0x000DFFFF
0x000C0000
0x0009FFFF
0x00080000
0x0005FFFF
0x00040000
0x0001FFFF
0x00000000

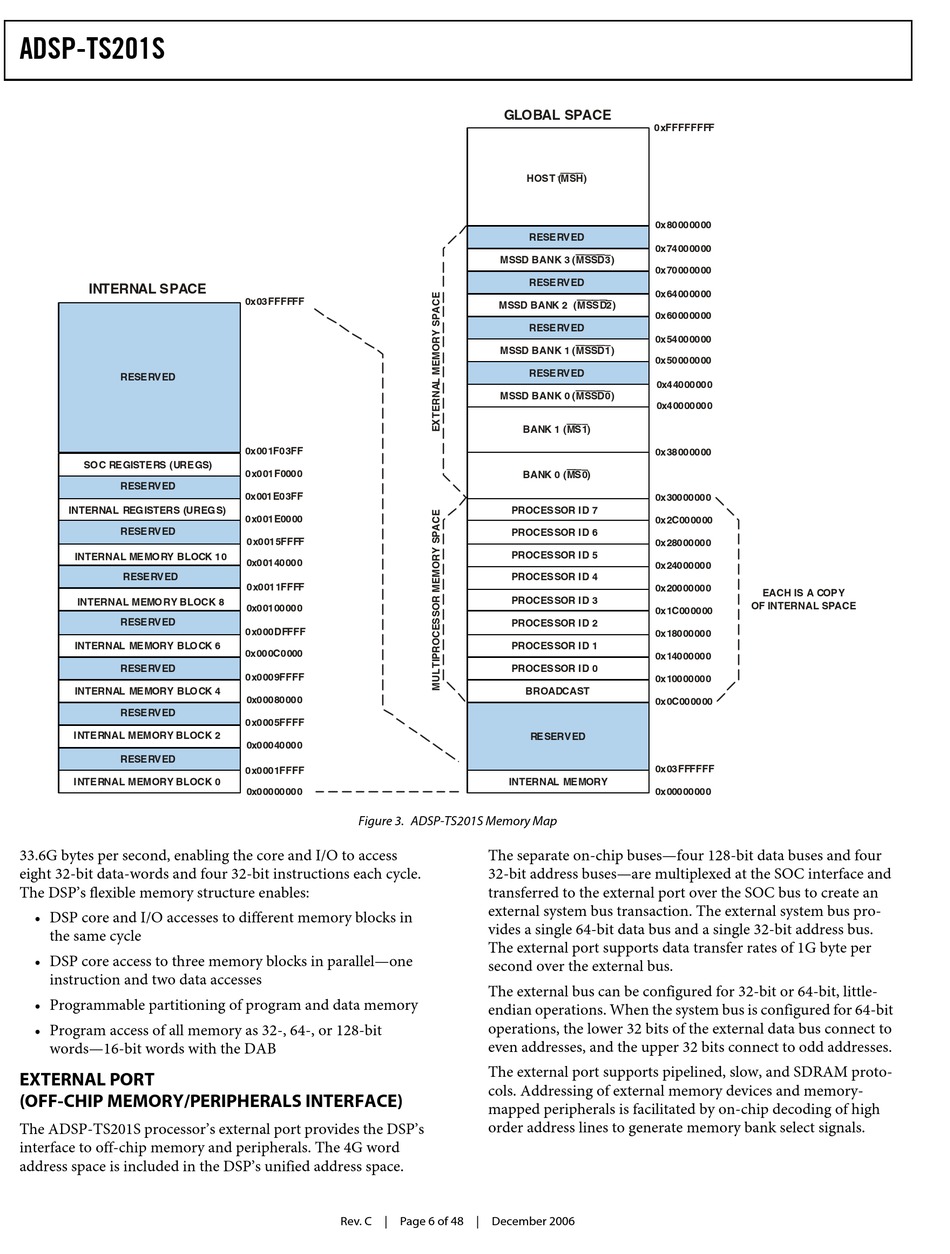

Figure 3. ADSP-TS201S Memory Map
Rev. C | Page 6 of 48 | December 2006
GLOBAL SPACE
0xFFFFFFFF
HOST (MSH)
0x80000000
RESERVED
0x74000000
MSSD BANK 3 (MSSD3)
0x70000000
RESERVED
0x64000000
MSSD BANK 2 (MSSD2)
0x60000000
RESERVED
0x54000000
MSSD BANK 1 (MSSD1)
0x50000000
RESERVED
0x44000000
MSSD BANK 0 (MSSD0)
0x40000000
BANK 1 (MS1)
0x38000000
BANK 0 (MS0)
0x30000000
PROCESSOR ID 7
0x2C000000
PROCESSOR ID 6
0x28000000
PROCESSOR ID 5
0x24000000
PROCESSOR ID 4
0x20000000
PROCESSOR ID 3
0x1C000000
PROCESSOR ID 2
0x18000000
PROCESSOR ID 1
0x14000000
PROCESSOR ID 0
0x10000000
BROADCAST
0x0C000000
RESERVED
0x03FFFFFF
INTERNAL MEMORY
0x00000000
The separate on-chip buses—four 128-bit data buses and four
32-bit address buses—are multiplexed at the SOC interface and
transferred to the external port over the SOC bus to create an
external system bus transaction. The external system bus pro-
vides a single 64-bit data bus and a single 32-bit address bus.
The external port supports data transfer rates of 1G byte per
second over the external bus.
The external bus can be configured for 32-bit or 64-bit, little-
endian operations. When the system bus is configured for 64-bit
operations, the lower 32 bits of the external data bus connect to
even addresses, and the upper 32 bits connect to odd addresses.
The external port supports pipelined, slow, and SDRAM proto-
cols. Addressing of external memory devices and memory-
mapped peripherals is facilitated by on-chip decoding of high
order address lines to generate memory bank select signals.
EACH IS A COPY
OF INTERNAL SPACE
