Cutter Unit

Cutter Unit ..................................................................................................................................................... 1024

Replacing the Cutter Unit .............................................................................................................................. 1024

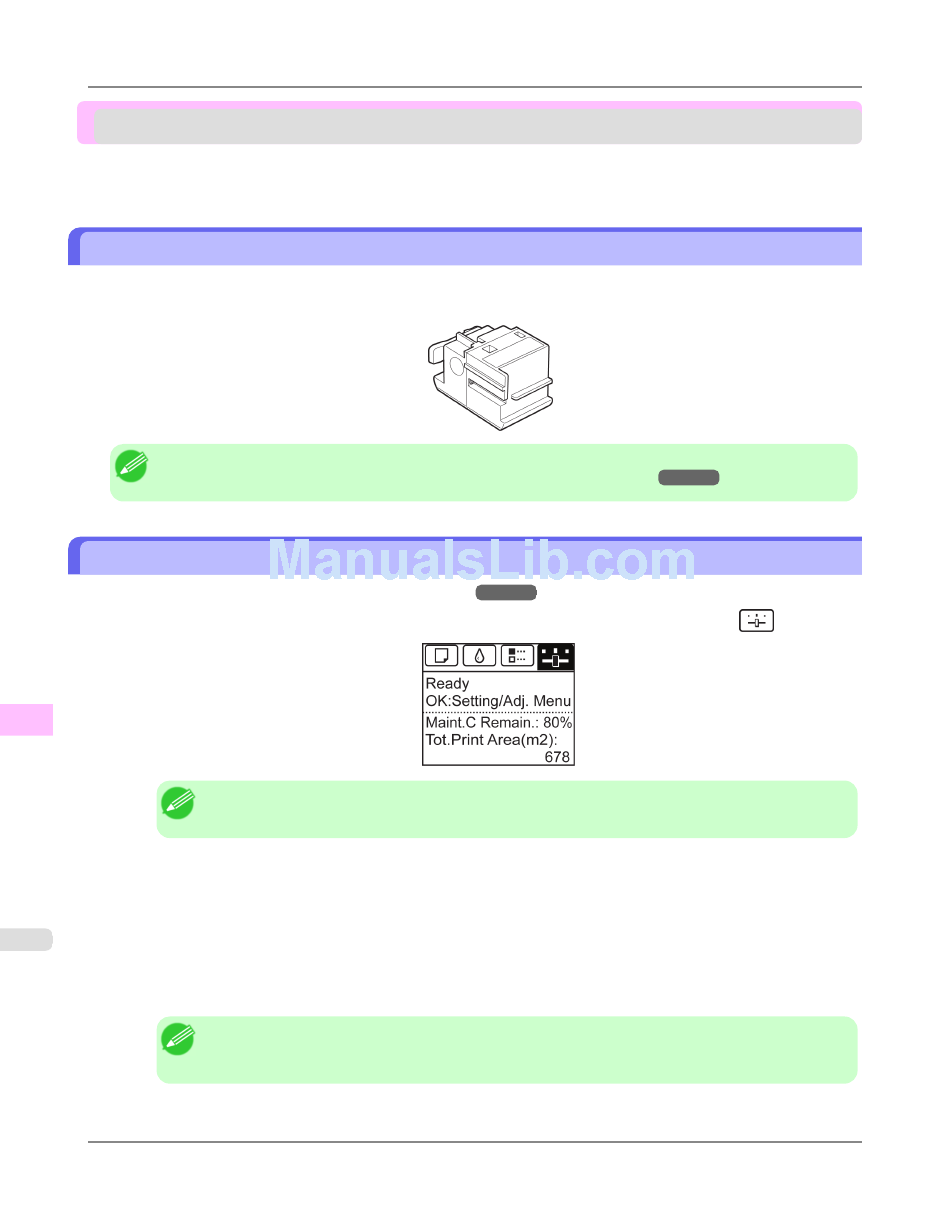

Cutter Unit
The printer can use the following Cutter Unit.
• Cutter Unit CT-06
Note
• For instructions on Cutter Unit replacement, see "Replacing the Cutter Unit."
Replacing the Cutter Unit
For information on compatible cutter units, see "Cutter Unit."
1.
On the Tab Selection screen of the Control Panel, press ◀ or ▶ to select the Settings/Adj. tab (
11
2.
Press the OK button.
The Set./Adj. Menu is displayed.
3.
Press ▲ or ▼ to select Maintenance, and then press the OK button.
1024
4.
Press ▲ or ▼ to select Change Cutter, and then press the OK button.
The Carriage moves to the center, and a message on the Display Screen requests you to open the Top Cover.
Cutter Unit
>
Cutter Unit
>
Note
• If the Tab Selection screen is not displayed, press the Menu button.
Note
• If you do not respond within two minutes, cutter cleaner replacement is canceled. In this case, repeat
the procedure.
→P.1024
→P.1024
).
