Cutter Unit; Structure Of Cutter Unit - Canon ImagePROGRAF iPF650 Series Service Manual

Chapter 2

2.3.3.3 Cutter Unit

2.3.3.3.1 Structure of Cutter Unit

0023-2516
iPF650 / iPF655
When a roll media is used, the cutter unit cuts the leading end of the roll on loading and also cuts the roller on paper ejection. Whether cutting takes place or not
depends on the relevant printer driver setting in the main menu.
The cutter in the cutter unit stands by at the cutter home position, except when a roll media is cut. Power imparted from the cutter motor to the cutter via a circular
belt drives it to travel from right to left for cutting.

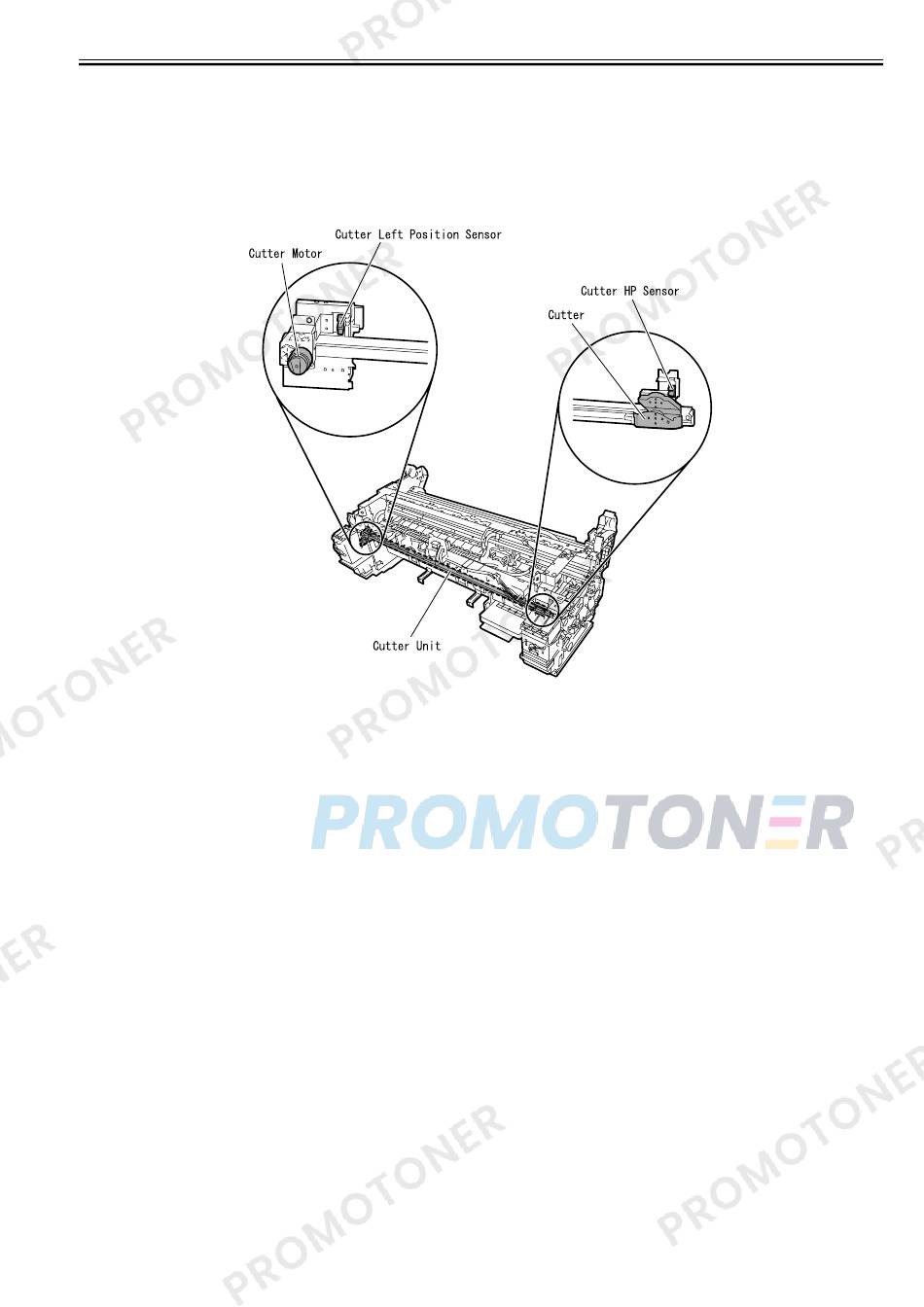

F-2-27
