Maintenance and Consumables

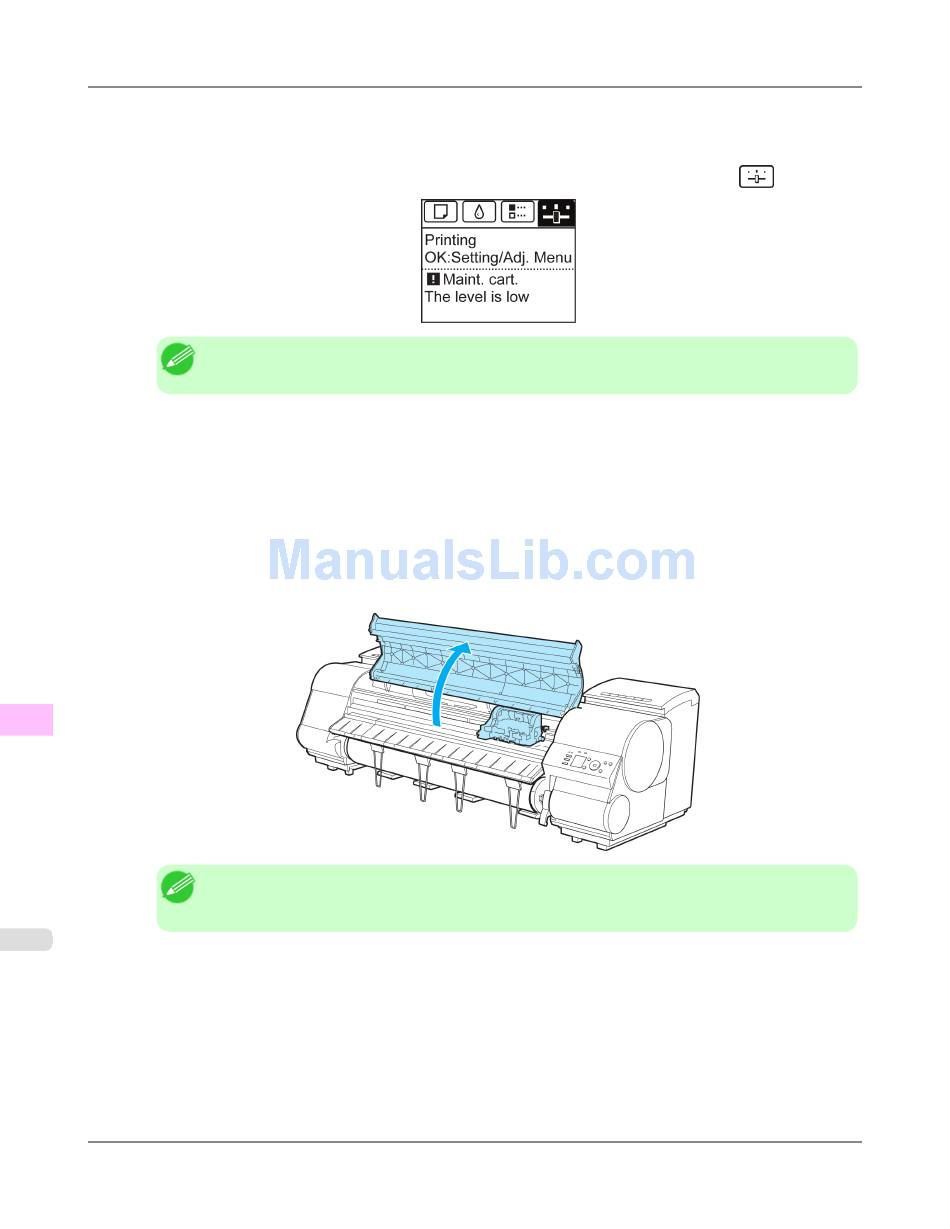

After you execute Repl. maint cart and replace the Maintenance Cartridge, a message will appear on the Display Screen
requesting you to replace the Shaft Cleaner. Select Yes and press the OK button. When a message requests you to open the
Top Cover, go to step 5.
1.
On the Tab Selection screen of the Control Panel, press ◀ or ▶ to select the Settings/Adj. tab (
2.
Press the OK button.
The Set./Adj. Menu is displayed.
3.
Press ▲ or ▼ to select Maintenance, and then press the OK button.
4.
Press ▲ or ▼ to select Repl. S. Cleaner, and then press the OK button.
After the Carriage is moved, the Display Screen indicates "Open Upper Cover".
5.
Open the Top Cover.
11
1034
Replacing the Maintenance Cartridge
>
Maintenance Cartridge
Note
• If the Tab Selection screen is not displayed, press the Menu button.
Note
• If you do not respond within two minutes, shaft cleaner replacement is canceled. In this case, repeat
the procedure.
>
).
