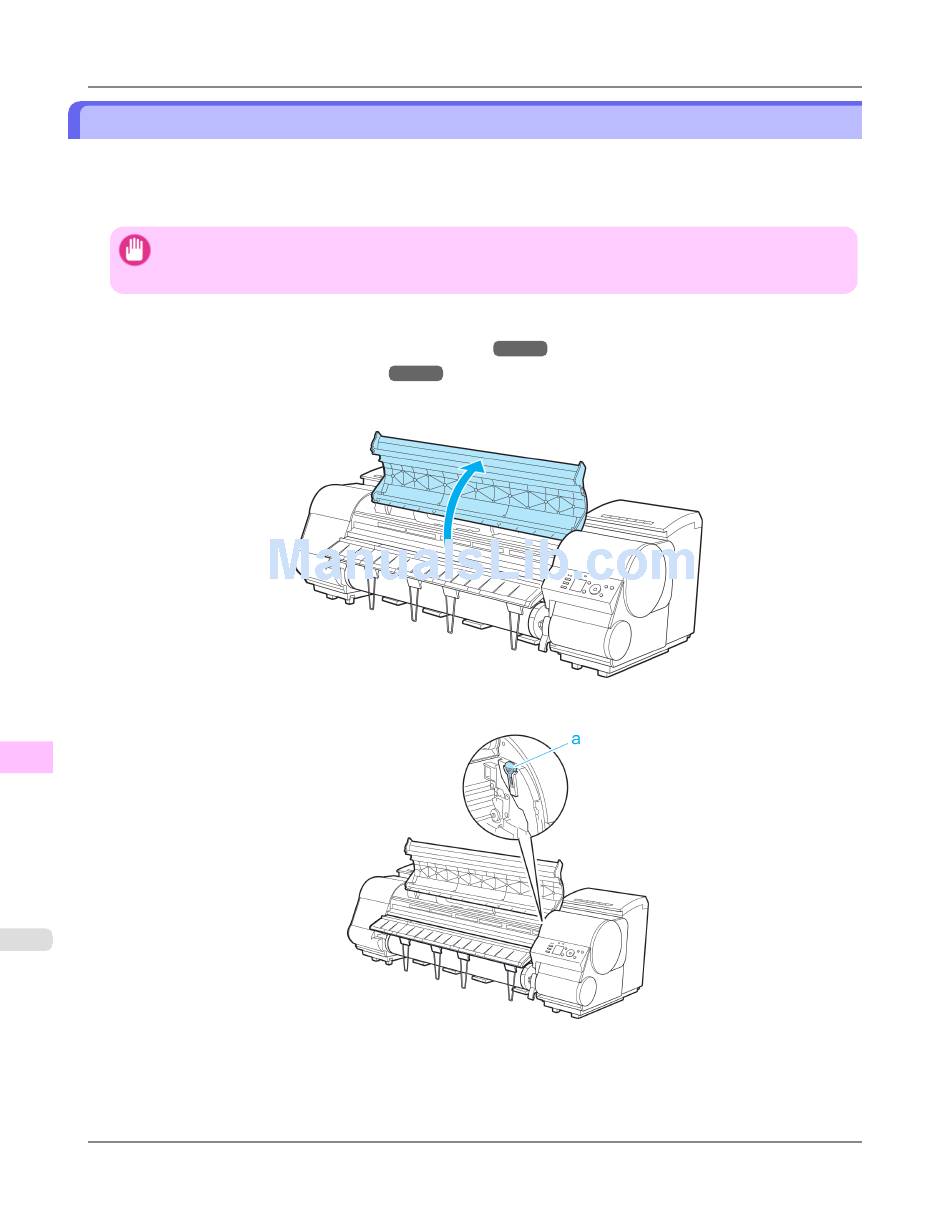

Setting the Blue Switch on the Platen

If printed documents exhibit the following symptoms, adjust the setting of the blue Switch on the Platen.
• Image edges are blurred
• Image edges are affected by white banding
Important
• Always set the blue Switch on the Platen to the ● side for borderless printing. Printing quality may be affec-
ted if the Switch is incorrectly set.
1.
Remove any loaded paper that will not be used.
• Rolls (See "Removing the Roll from the Printer.")
• Sheets (See "Removing Sheets.")
2.
Open the Top Cover.
3.
Remove the Cleaning Brush (a).
12
1078
Setting the Blue Switch on the Platen
>
Problems with the printing quality
>
