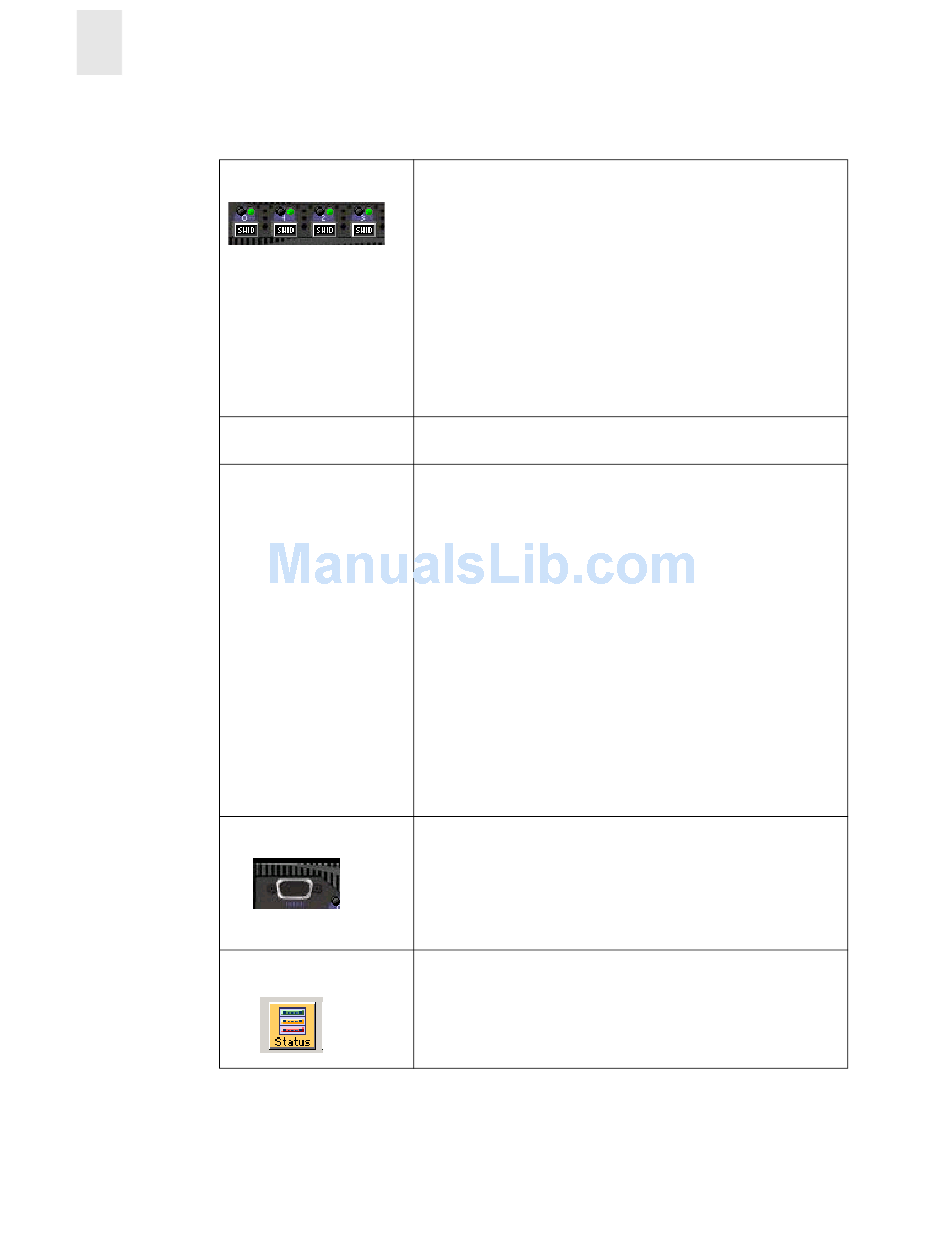

Switch View
The items and information available in Switch View
Port icons
Port numbers
(on the top of each port)
LED Status Indicators
(round light next to each
port)
Power supply
Status
4-2
The letters in the Port icon indicate the GBIC (Gigabit Interface
Converter) type, as follows:
blank - No GBIC present
SW - Short wave GBIC
LW - Long wave GBIC
SWID - Short wave serial ID GBIC
LWID - Long wave serial ID GBIC
A yellow outline around a port icon indicates port failure. For
detailed port information, click the Port icon to see the Port
Information View.
The number of the port.
The color indicates the status of the port.
No light
Steady yellow
check cable connections.
Slowly flashing yellow
portDisable command).
Rapidly flashing yellow
Steady green
cable).
Slowly flashing green
cable or incompatible switch).
Rapidly flashing green
Flickering green
transmitting/receiving frames.
Removable power assemblies are updated to show
presence/absence and status of each:
Green - Power supply present and operational.
Red X - Power supply present but not operational.
Cover plate - Power supply absent or not fully plugged in.
Click to view the switch's health status.
- No device attached.
- Receiving light, but not online;
- Disabled (diagnostics or
- Error, fault with port.
- Online (connected with device by
- Online but segmented (loopback
- Internal loopback (diagnostic)
- Online and
