Switch View
1. Select the Performance icon (from the Switch View).
2. Select the Performance Graphs pull-down menu.
3. Select the Basic Monitoring option.
The following section describes the types of graphs that are available through the Basic Monitoring
menu.
Table 4-2
Scope
Port
Switch
Switch
Switch
Switch
Switch
Port Throughput Graph

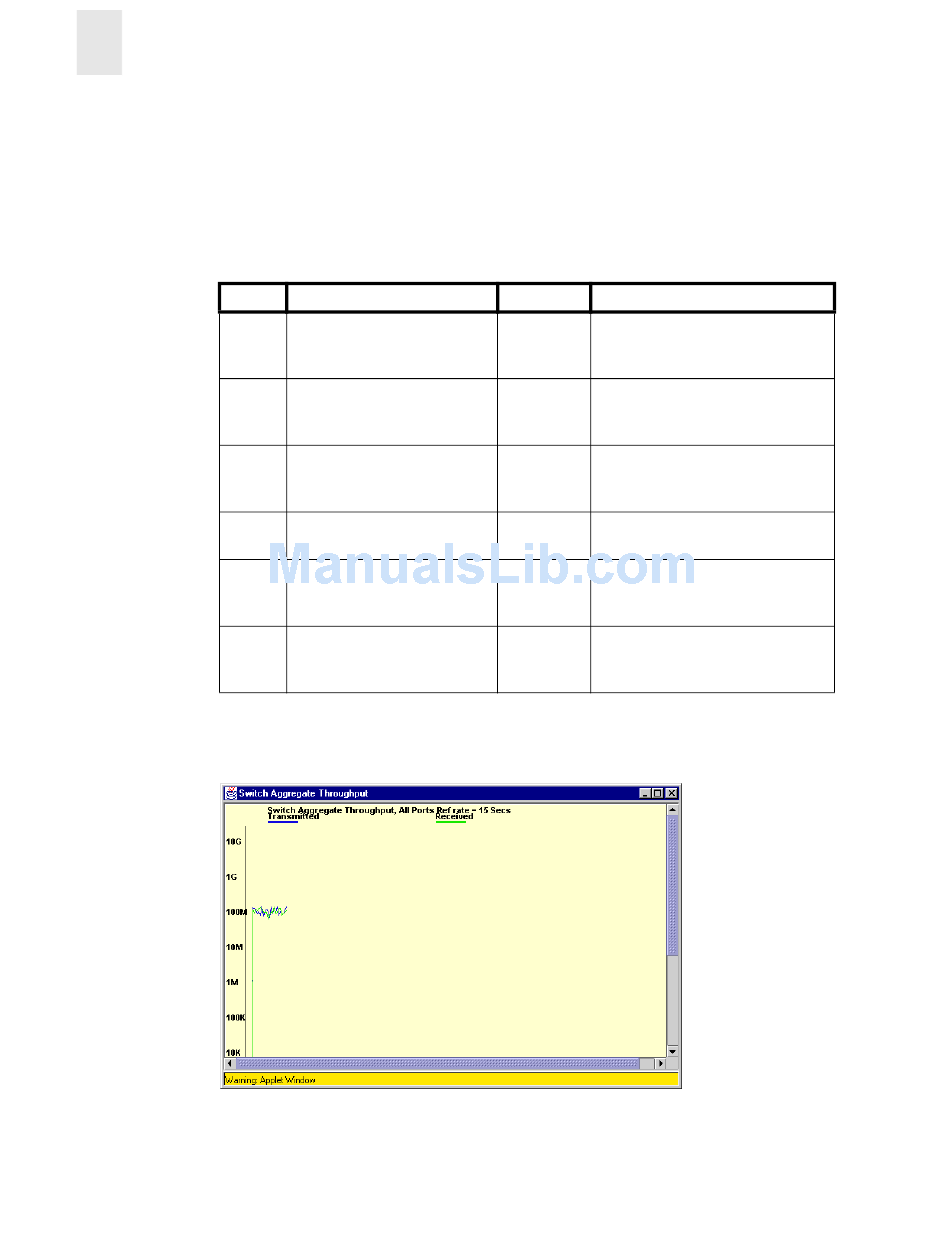

An example of a Port Throughput Graph, monitoring bytes transmitted and received, is shown in
Figure 4-29
Figure 4-29 Port Throughput Graph Example
4-28
Graphs Displayed on a Basic Canvas
Graph Name
Port Throughput Graph
Switch Aggregate Throughput
Graph
Switch Throughput Utilization
Graph
Port Error Graph
Switch Percent Utilization
Graph
Port SnapShot Error Graph
Type Description
Line Displays the performance of a port
based on four-byte frames received
and transmitted. See Figure 4-29
Line Displays the aggregate performance
of all ports of a switch. See
Figure 4-30.
Horizontal Displays the port throughput at the
Bar time the sample is taken. See
Figure 4-31.
Line Displays a line of CRC errors for a
given port. See Figure 4-33.
Horizontal Displays the percentage of usage of
Bar a chosen switch at the time the
sample is taken. See Figure 4-34.
Vertical Bar Displays the CRC error count
between sampling periods for all the
ports on a switch. See Figure 4-35.
