Switch View

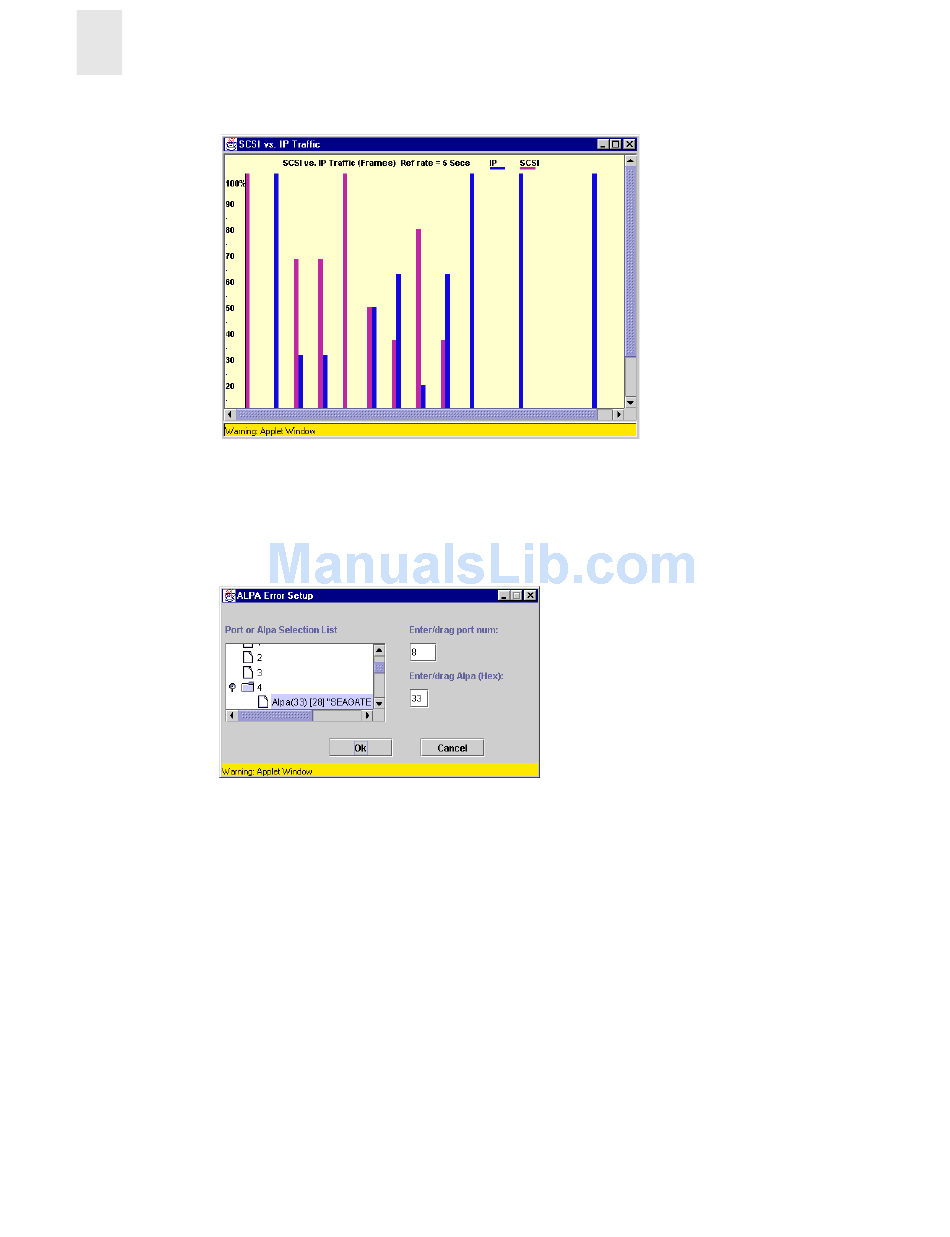

Figure 4-40 SCSI vs IP Graph Example
ALPA Error Graph
When you select an ALPA Error Graph, you will be prompted to chose the port that you want to
monitor for various errors. Figure 4-41 is an example of the data entry window that you will see
when you choose to create a ALPA Error Graph.
Figure 4-41 ALPA Error Setup Data Entry Window
To choose the port and ALPA that you want to graph:
1. Double-click on the folder in the Port Selection List window.
A drop down list of ports will appear.
2. Select the port that you want to monitor or change by using one of the following methods:
•
•
3. Select the port "folder", or the small icon that appears next to it. A drop-down list of SID/DID
files will appear.
4-36
Type the port number in the Enter /Drag Port Numbers window.
Drag the port "folder" from the Port Selection window to the Enter/Drag Port Number
window.
