3

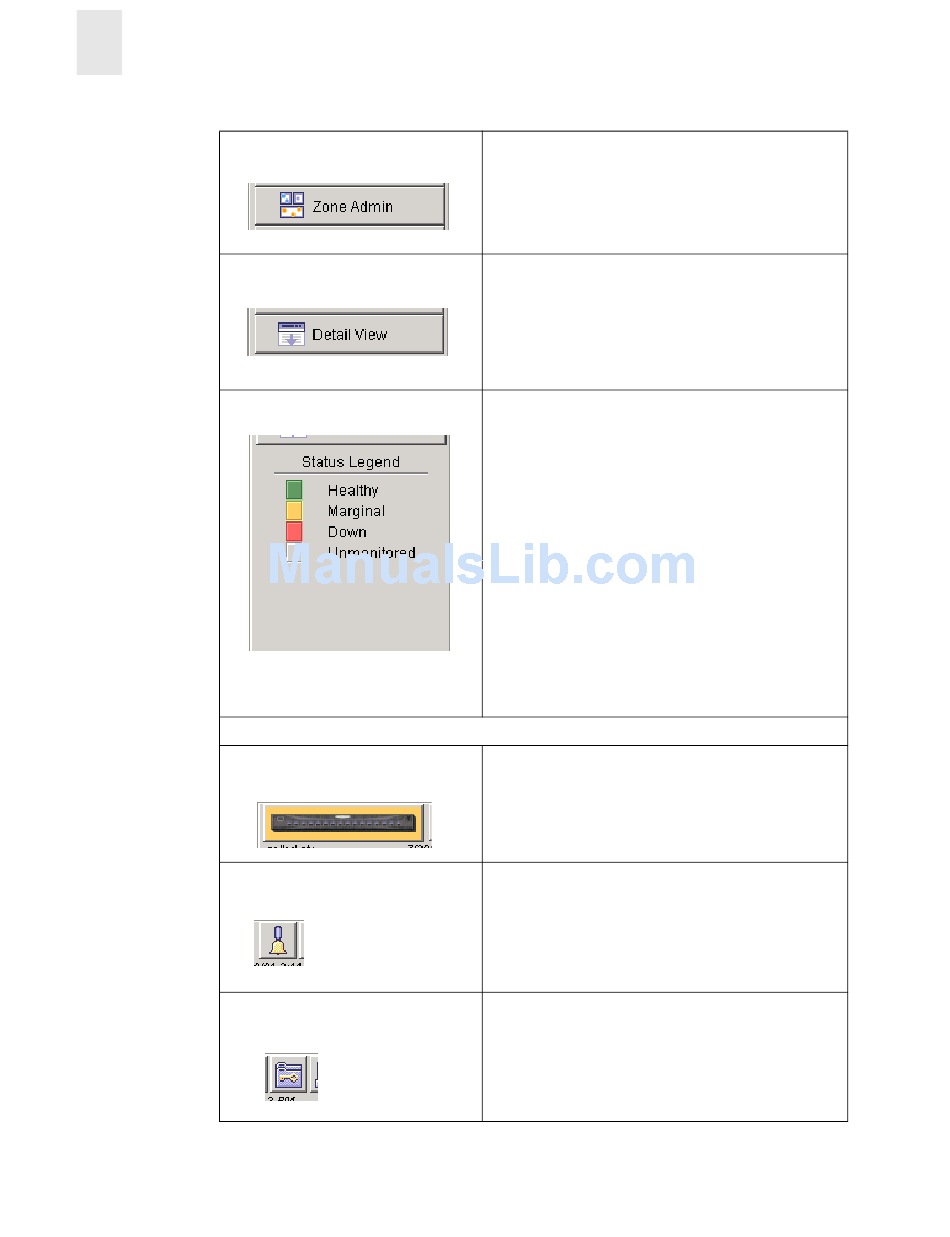

Fabric View
Zone Admin
Summary/Detail View
Status legend
The Switch Panel (on the right side of Figure 3-1)
Switch
Events
Admin
3-4
Select to open Zone Administration View.
Toggle to view either the Summary or Detail version of
Fabric View. The Summary version shows abbreviated
switch panels (see Figure 3-2). The default view is
Detail.
Defines meaning of colors visible in the background of
the switch icons. Each color indicates a different
operational state:
•
Green Healthy
•
Yellow Marginal (mix of good and faulty
readings)
•
Red Down (more than two faulty
readings)
•
Gray Unknown or unmonitored
If no data is available from a switch, the most recent
background color remains displayed.
Note:
For all statuses that are based on errors per time
interval, any errors will cause the status to
show faulty until the entire sample interval has
passed.
Select to open Switch View for the switch. Each switch
type is represented by a different icon. The background
color around the icon indicates the status of the switch
(for information about this view, see Switch View).
Select to open Switch Events View to display the
switch events log (for information about this view, see
Switch Events View).
Select to open Switch Administration View (for
information about this view, see Administrative
Interface).
Web Tools User's Guide
