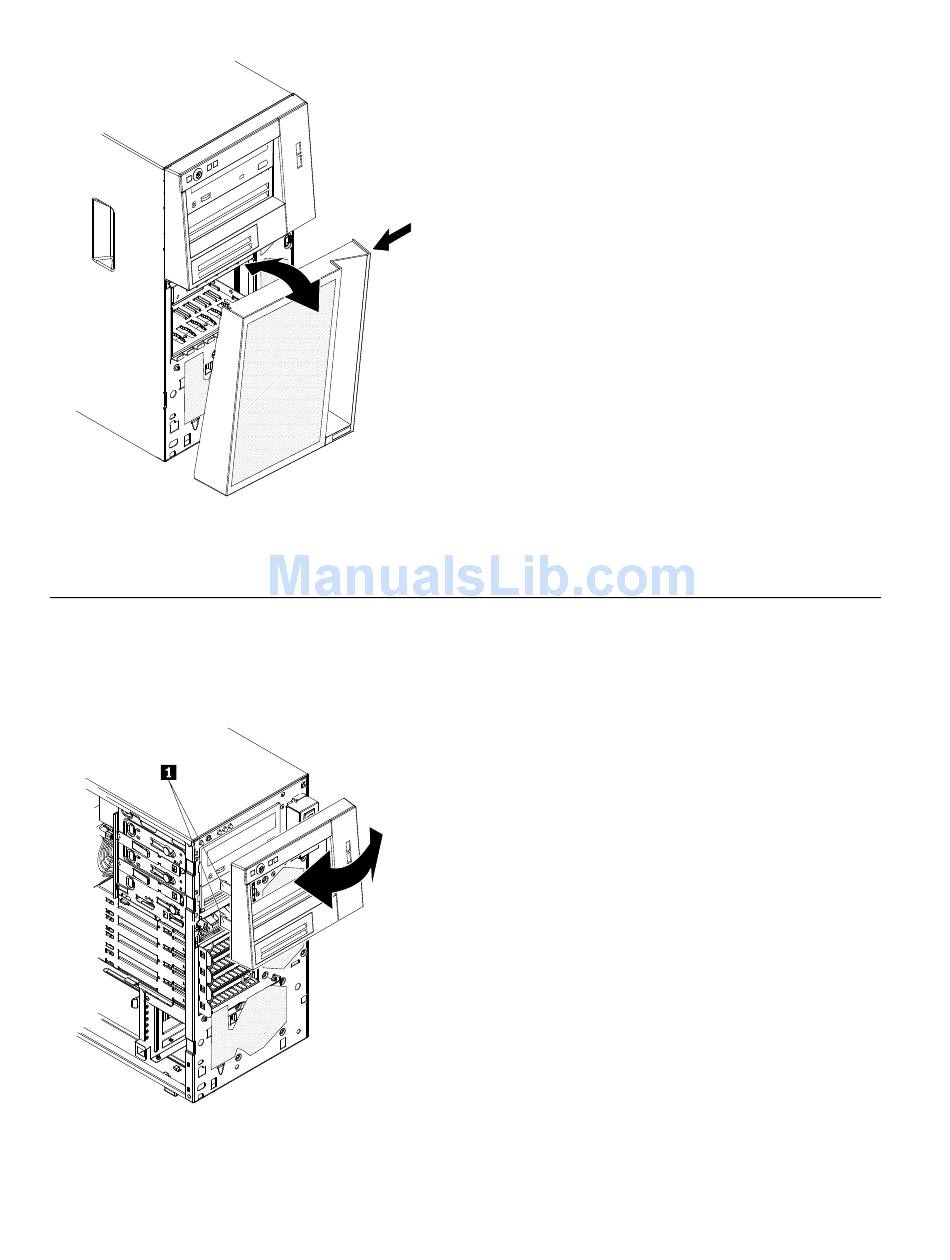

2. Rotate the top of the lower bezel up to the chassis; then, press the blue release tab on the right side of
the lower bezel and completely close the lower bezel until it locks securely into place.
3. Reconnect the external cables and power cords; then, turn on the attached devices and turn on the server.

Installing the upper bezel

To install the upper bezel, complete the following steps:
1. Insert the two tabs on the right-side of the upper bezel into the corresponding holes on the right side of
the chassis.
2. Rotate the upper bezel to the left side of the chassis until the bezel clips are aligned with the
corresponding indentations on the left side of the chassis and it snaps into place.
3. Install the lower bezel (see "Installing the lower bezel" on page 145).
