Displaying advance details

Selecting Shift-F5 will show the software versions (BIOS, Firm-
ware, monitor) and slot # of the 3ware card (see Figure 10). Press
Escape to return to the main 3ware Disk Array Configuration
screen.

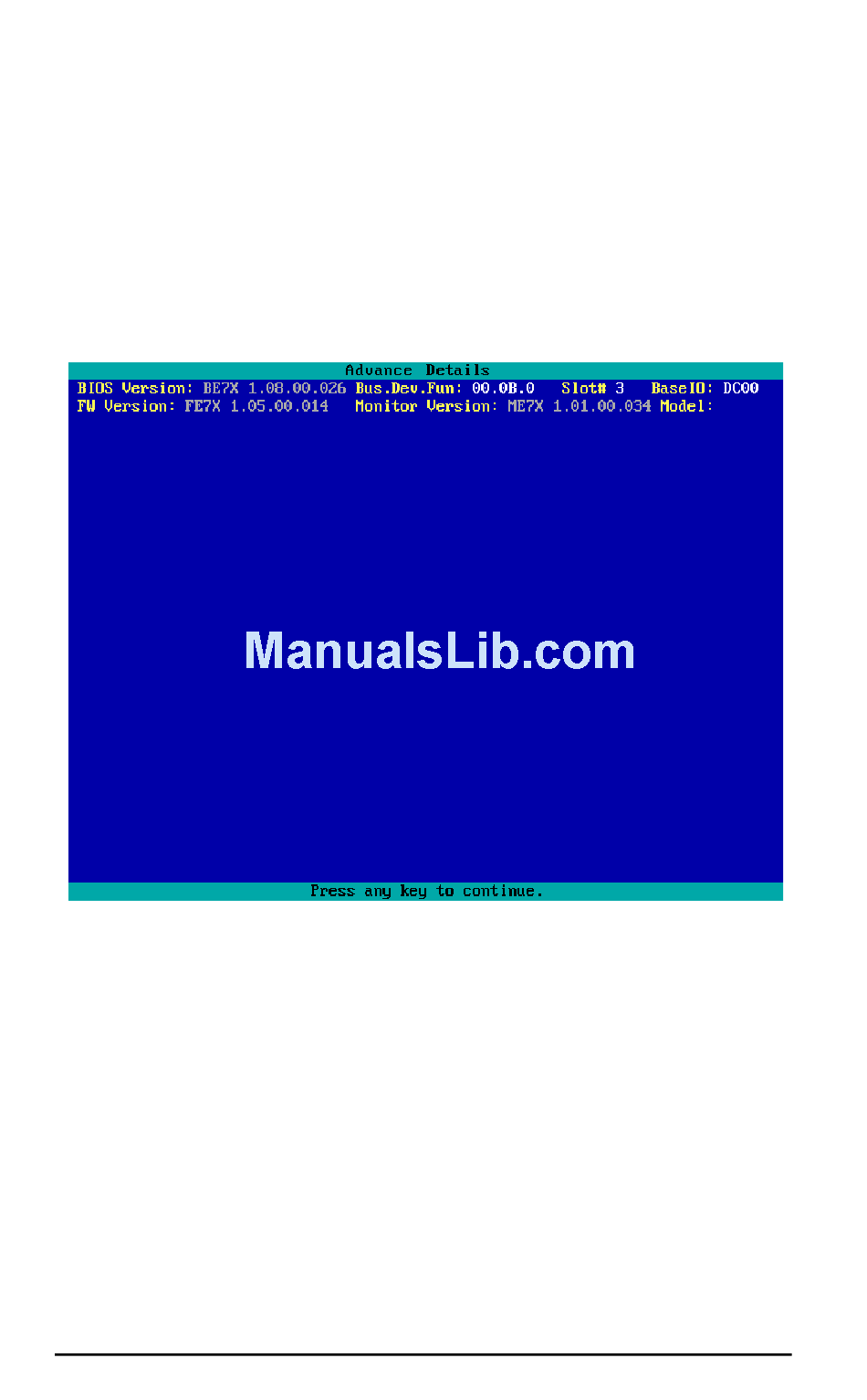

Figure 10. Disk Array Advance Details Screen

Creating a disk array

To create an array, first select the drives to be included by navigat-
ing the cursor over each drive and pressing Enter (see Figure 11).
An asterisk in the left most column indicates the drive is selected.
You may include from two to twelve drives in the array by selecting
drives from the Available Drives section. To include drives that are
part of an existing disk array you must first delete the array.
