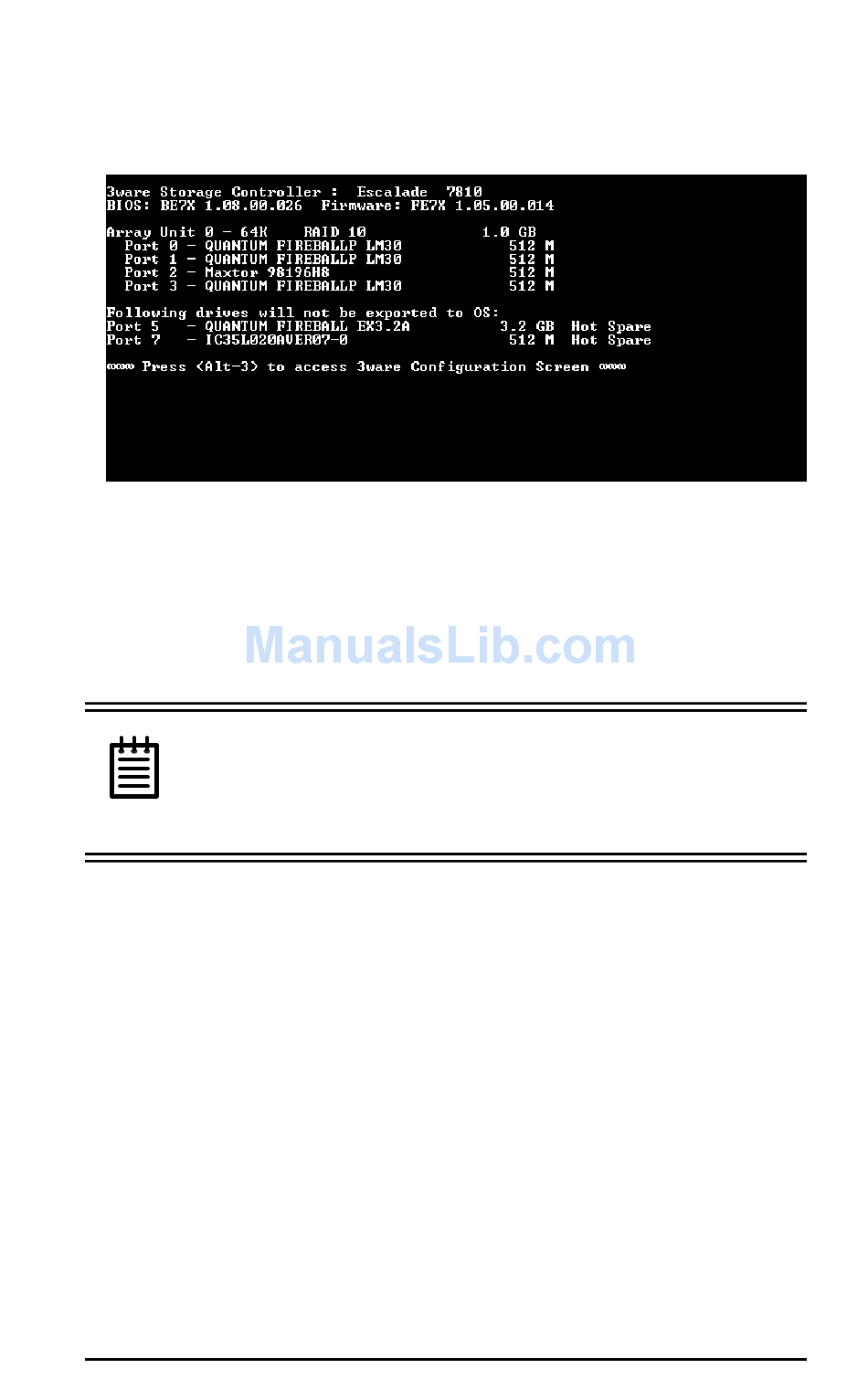

Figure 8. 3ware BIOS Tool

Press Alt-3 immediately to bring up the 3ware Disk Array Config-
uration display.
Note:
install the 3ware BIOS, press Alt-b to bypass the BIOS
installation. This is useful when booting temporarily
from another device.

Exiting the 3ware BIOS tool

To save your configuration modifications hit the F8 key. After you
have hit the F8 key to commit your changes, a list of affected drives
will be displayed and you will be asked to confirm your configura-
tion. The booting process will resume.
To exit the 3ware Disk Array Configuration Utility without saving
your changes hit Esc.
www.3ware.com
If drives are attached and you do not want to
3ware Disk Array Configuration Utility
45
