3ware Escalade ATA RAID Controller User Guide
The Monitor display (see Figure 51) is useful for overall visual sta-
tus of your disk arrays. The Monitor display opens with either a
green (all OK), yellow (during array initialization or rebuild), or red
(error alarm) banner. A monitor window may be opened for each
system if you have multiple systems to monitor. Status for all sys-
tems can be checked at a glance by minimizing each Monitor dis-
play, leaving the status color indication visible.

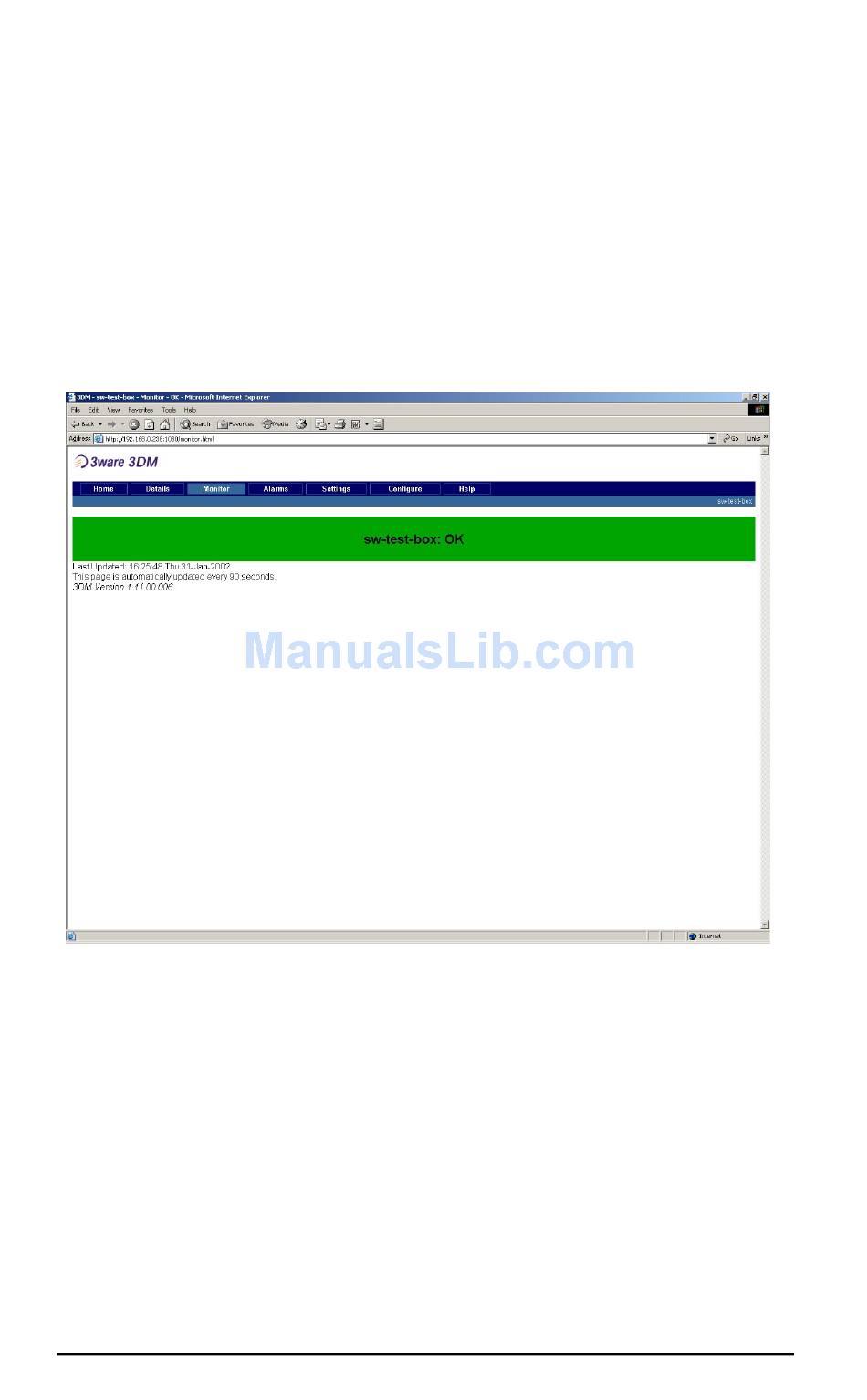

Figure 51. 3DM Monitor Display
156
www.3ware.com
