3ware Escalade ATA RAID Controller User Guide
6 The final upgrade driver screen should appear (Figure 46), fol-
lowed by a progress bar which appears briefly, then by a System
Settings Change dialog.

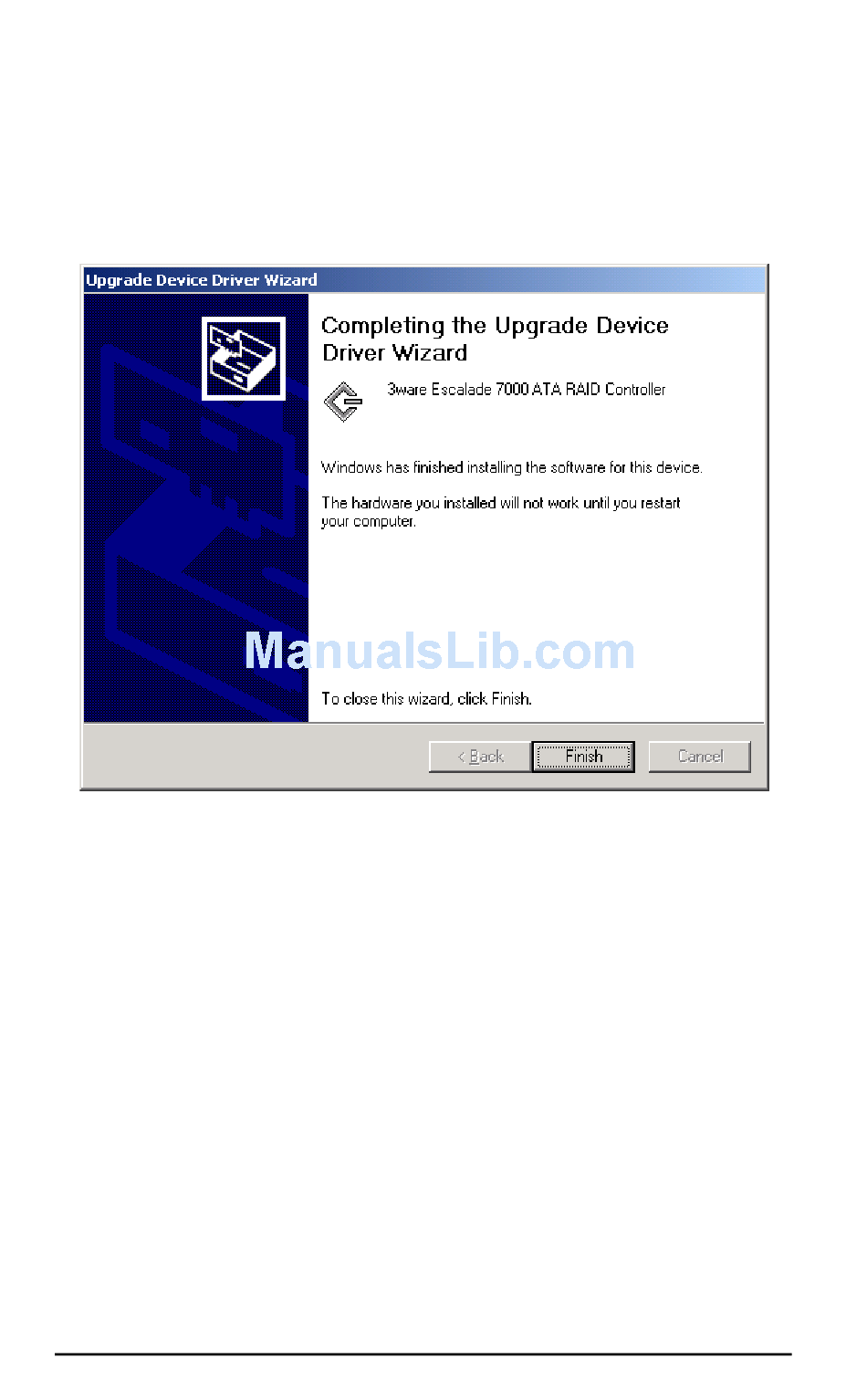

Figure 46. Final driver installation screen

Remove the existing Escalade ATA RAID Controller and
install the new Escalade ATA RAID Controller
Refer to the Hardware Installation chapter.

Reboot the machine

1 Remove the driver diskette from your PC, then install the new
ATA RAID controller. Afterwards, turn your system on.
2 If you choose to reconfigure your disk arrays press Alt-3 to
bring up the Disk Array Configuration Utility.
118 www.3ware.com
