3ware Escalade ATA RAID Controller User Guide

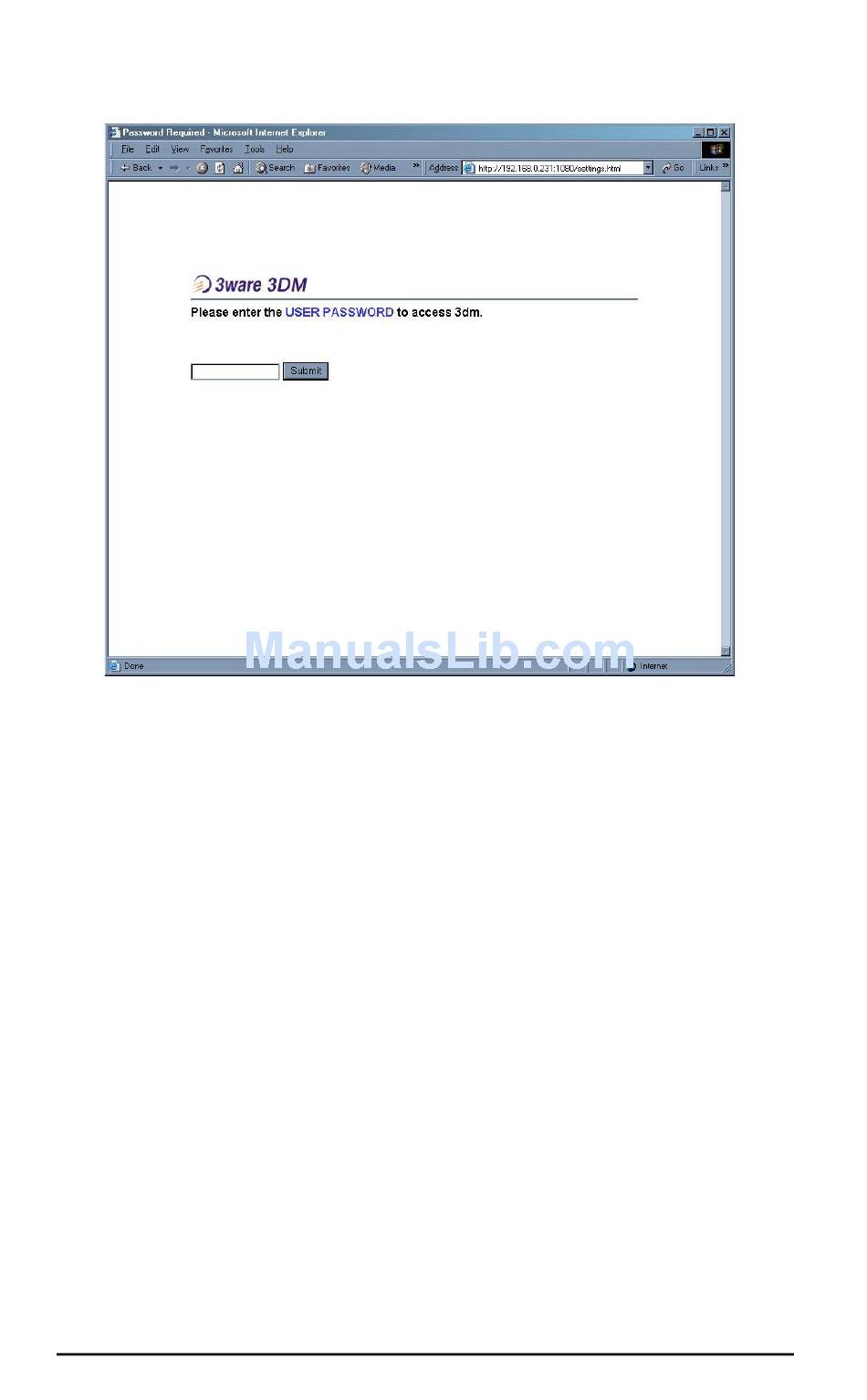

Figure 55. 3DM User Login Display
Enable/disable password protection
With the 3DM password utility enabled, using 3DM will require
entering the password into the login display shown in Figure 54. To
enable password protection, be sure to perform the setup procedure
on page 160, then select the Enabled option in the Password Setup
portion of the 3DM Settings display (see Figure 53). To disable the
utility, you must log in as an Administrator before you are permit-
ted to select the Disabled option in the Settings window. If both
Administrator and User Passwords are enabled, you are prompted
for both the User and Administrator passwords.
162
www.3ware.com
